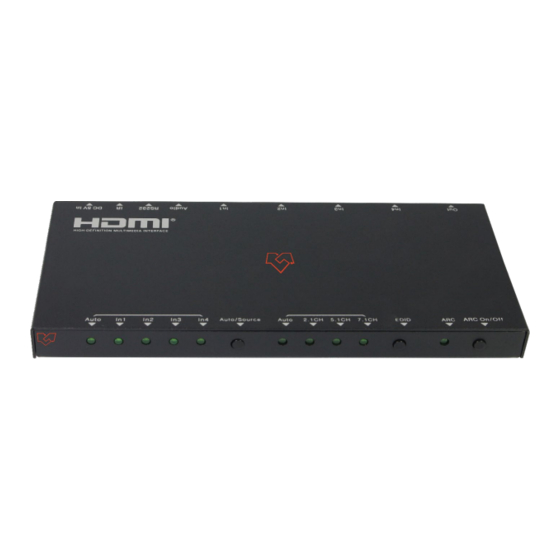

- Page 1 VL-SW41-1 4X1 HDMI2.0 Switch with Audio ARC 18Gbps VER 1.1...
- Page 2 Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating, or adjusting this product. Please keep this manual for future reference. I. Introduction This is a high-performance HDMI 4x1 switcher that supports HDTV formats up to 4Kx2K@60Hz and all HDMI 3D TV formats.
- Page 3 3. Features Compliant with HDMI 2.0a, DVI 1.0 standards HDCP 2.2 and HDCP 1.4 compliant Video formats up to 4Kx2K@60 and all HDMI 3D video formats Supports PCM, Dolby TrueHD, DTS-HD Master Audio up to 7.1CH ...
- Page 4 5. Switcher Operation controls and Functions Front Panel: ① Input indicator LED, the corresponding port LED will be illuminated when its port is selected. ②Auto or manual select button: Press this button >2 seconds to select auto switching or manual switching mode.
- Page 5 Rear Panel: ① HDMI output port, connect with HDTV or monitor by HDMI cable ② HDMI input ports, connect with DVD, PS4, or Set-top Box HDMI cable ③ Audio output (including L/R analog and optical audio out) ④ RS232 port ⑤...
- Page 6 7. Application Example...
