Pro-Form J4 User Manual page 6

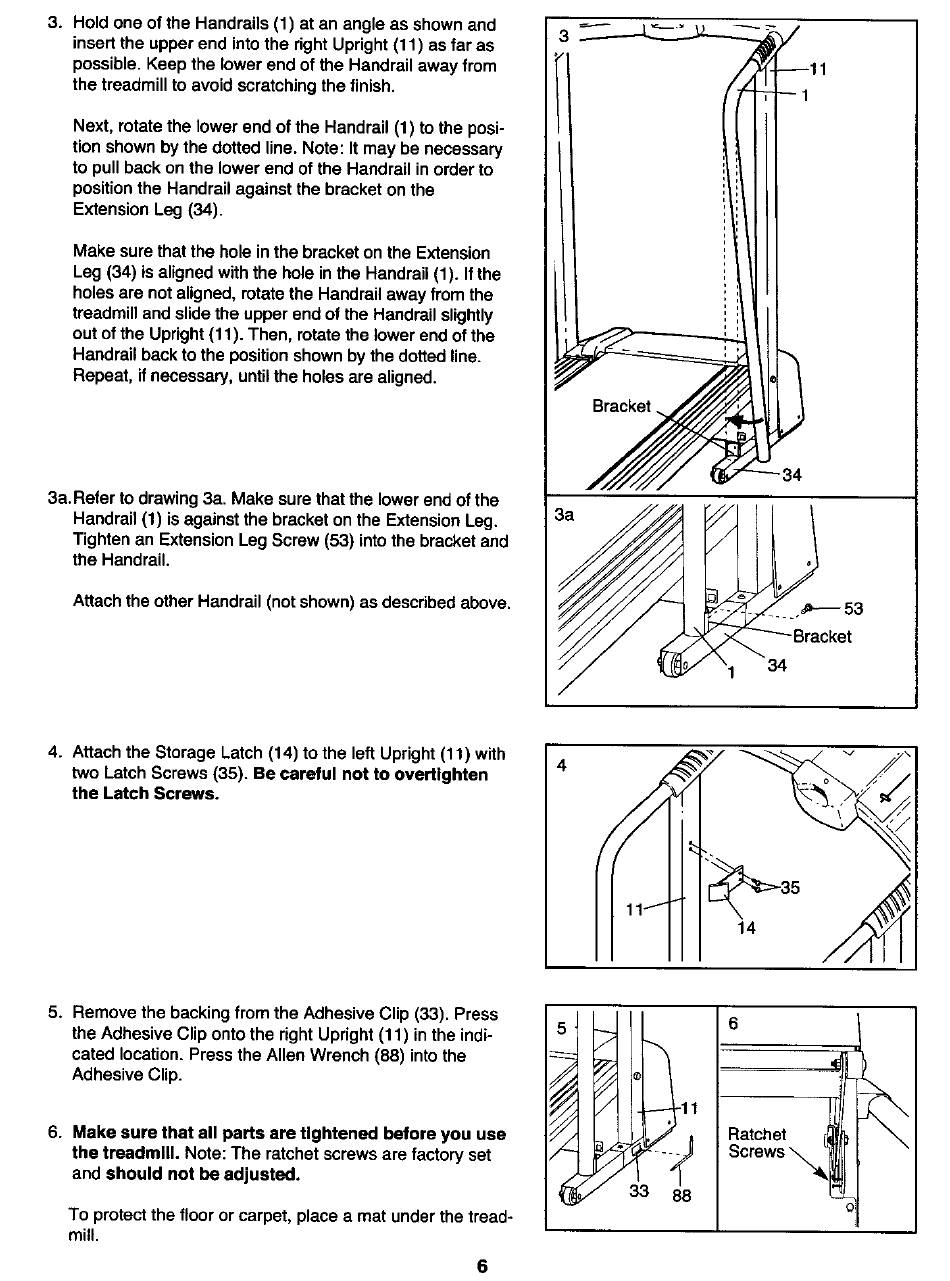

3. Hold one of the Handrails (1) at an angle as shown and
insert the upper end into the right Upright (11) as far as
possible. Keep the lower end of the Handrail away from
the treadmill to avoid scratching the finish.
Next, rotate the lower end of the Handrail (1) to the posi-
tion shown by the dotted line. Note: It may be necessary
to pull back on the lower end of the Handrail in order to
positionthe Handrail against the bracket on the
Extension Leg (34).
Make sure that the hole in the bracket on the Extension
Leg (34) is aligned with the hole in the Handrail (1). Ifthe
holes are not aligned, rotate the Handrail away from the
treadmilland slide the upper and of the Handrail slightly
out of the Upright(11). Then, rotate the lower end of the
Handrail back to the positionshownby the dotted line.
Repeat, if necessary, untilthe holes are aligned.
3a.Refer to drawing3a. Make sure that the lower end of the
Handrail (1) is against the bracket on the ExtensionLeg.
Tighten an Extension Leg Screw (53) intothe bracket and
the Handrail.
Attach the other Handrail (not shown) as described above.
3a
Bracket
_----Bracket
1 34
4. Attach the Storage Latch (14) to the left Upright (11) with
two Latch Screws (35). Be careful not to overtlghten
the Latch Screws.
4
5. Remove the backing from the Adhesive Clip (33). Press
the Adhesive Clip onto the right Upright(11) in the indi-
cated location. Press the Allen Wrench (88) intothe
Adhesive Clip.
6. Make sure that all parts are tightened before you use
the treadmill. Note: The ratchet screws are factory set
and should not be adjusted.
To protect the floor or carpet, place a mat under the tread-
mill.
6
5
.f
Ratchet
Screws _
o
