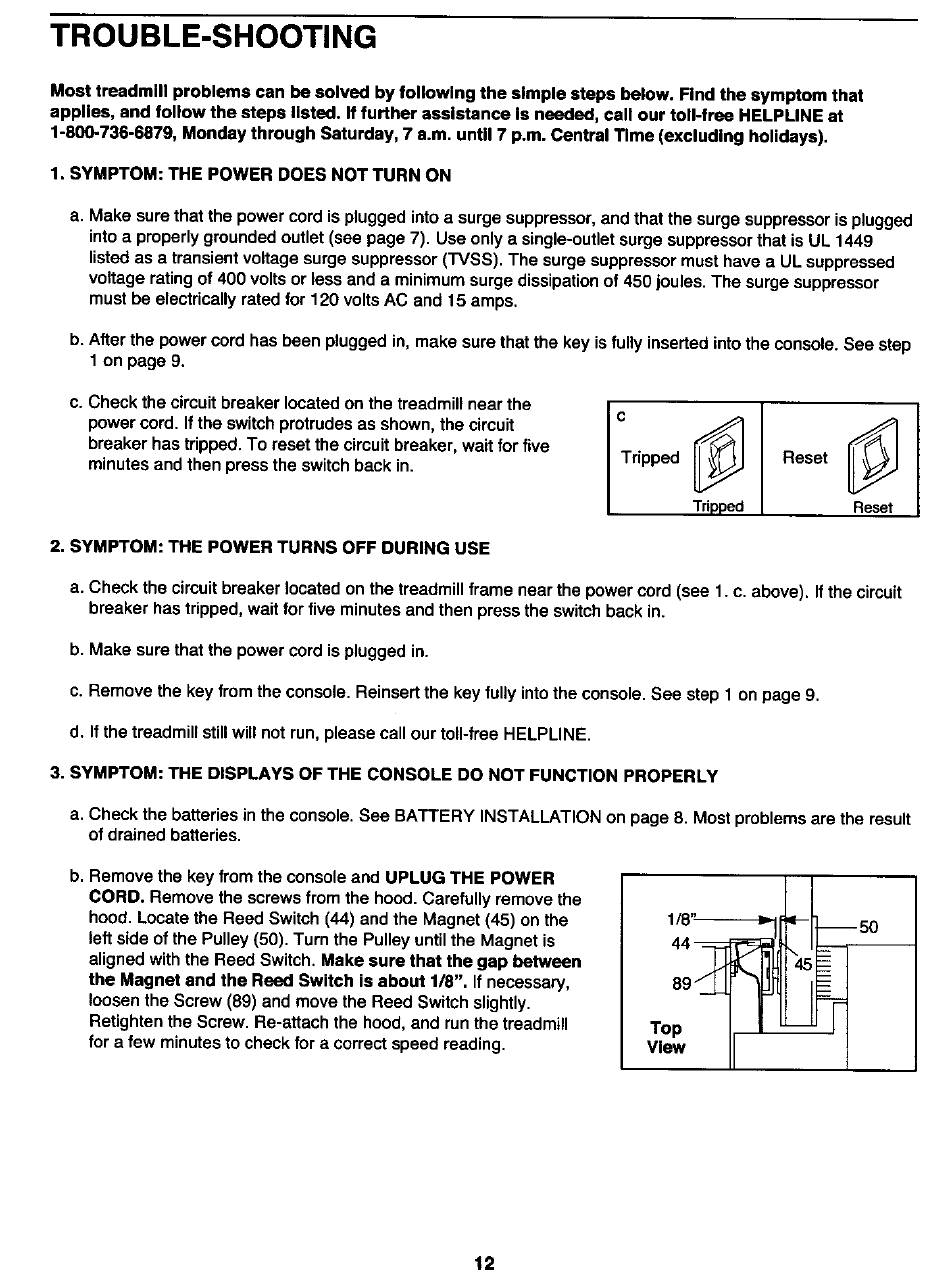

TROUBLE-SHOOTING
Most treadmill problems can be solved by following the simple steps below. Find the symptom that
applies, and follow the steps listed. If further assistance Is needed, call our toll-free HELPLINE st
1-800-736-6879, Monday through Saturday, 7 s.m. until 7 p.m. Central Time (excluding holidays).
1. SYMPTOM: THE POWER DOES NOT TURN ON
a. Make sure that the power cord is plugged into a surge suppressor,and that the surge suppressoris plugged
into a properly groundedoutlet (see page 7). Use only a single-outletsurge suppressorthat is UL 1449
listed as a transient voltage surge suppressor(TVSS). The surge suppressor must have a UL suppressed
voltage rating of 400 volts or less and a minimum surge dissipationof 450 joules. The surge suppressor
must be electricallyrated for 120 volts AC and 15 amps.
b. After the power cord has been plugged in, make sure that the key is fully inserted intothe console. See step
1 on page 9.
c. Check the circuitbreaker located on the treadmill near the
power cord. If the switchprotrudes as shown, the circuit
breaker has tripped. To reset the circuit breaker, wait for five
minutesand then press the switch back in.
Tripped
Tripped
Reset
Reset
2. SYMPTOM: THE POWER TURNS OFF DURING USE
a. Check the circuit breaker located on the treadmill frame near the power cord (see 1. c. above). If the circuit
breaker has tripped, wait for five minutes and then press the switch back in.
b. Make sure that the power cord is plugged in.
c. Remove the key from the console. Reinsert the key fully into the console.See step 1 on page 9.
d. If the treadmill stillwill not run, please call our toll-free HELPLINE.
3. SYMPTOM: THE DISPLAYS OF THE CONSOLE DO NOT FUNCTION PROPERLY
a. Check the batteries in the console. See BATTERY INSTALLATION on page 8. Most problems are the result
of drained batteries.
b. Remove the key from the console and UPLUG THE POWER
CORD. Remove the screwsfrom the hood. Carefully remove the
hood. Locate the Reed Switch (44) and the Magnet (45) on the
left side of the Pulley (50). Turn the Pulley until the Magnet is
aligned with the Reed Switch. Make sure that the gap between
the Magnet and the Reed Switch is about 118". If necessary,
loosen the Screw (89) and move the Reed Switch slightly.
Retighten the Screw. Re-attach the hood, and run the treadmill
for a few minutesto check for a correct speed reading.
1/8"
44--
