RJ45
BROWN
WHITE/BROWN
GREEN
WHITE/GREEN
ORANGE
WHITE/ORANGE
BLUE
WHITE/BLUE
VM-186

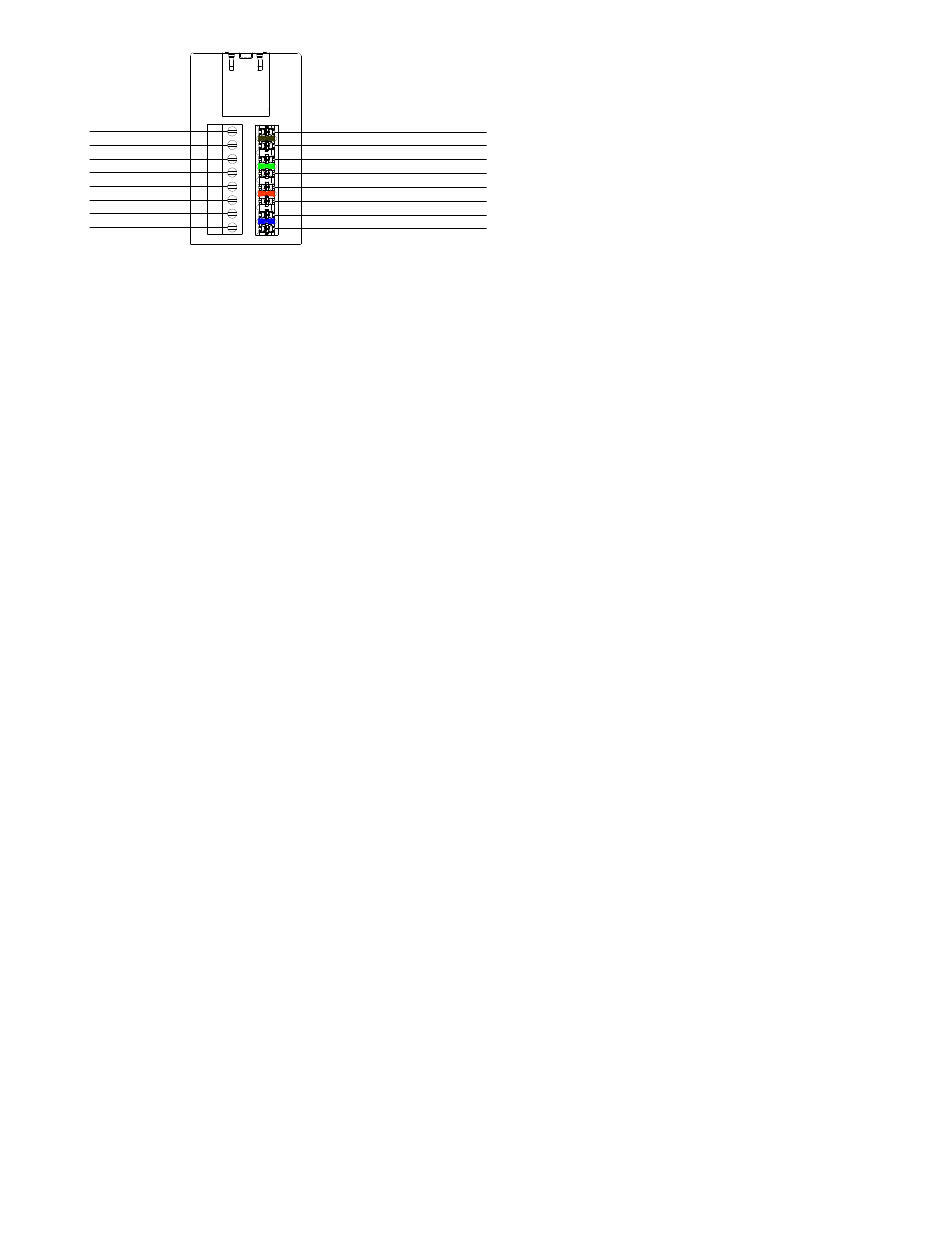

Figure 1. VM-186 RJ-45 Connector
Setup
Information specific to your application will need
to be programmed into the VE8004B/VE8004BR
using a computer. The PC used for programming
should be connected to the same subnet as the
VE8004B/VE8004BR. Setup will be done using
the IP Solutions Setup Tool. Download the latest
version of the free IP Solutions Setup Tool from
Valcom website at www.valcom.com/vipsetuptool.
BROWN
BROWN AUDIO OUTPUT
GREEN CONTACT CLOSURE INPUT
ORANGE AUDIO INPUT
BLUE N/O RELAY OUTPUT
BLUE
TECHNICAL ASSISTANCE
When trouble is reported, verify power is being
supplied to the unit and there are no broken
connections. If a spare unit is available, substitute
a spare unit for the suspected defective unit.
Assistance in troubleshooting is available from the
factory. Call (877) 427-2166 and ask for Valcom
Engineered Solutions Technical Support, or visit
our website at www.ValcomES.com.
Valcom equipment is not field repairable. Valcom,
Inc. maintains service facilities in Roanoke, VA.
Should repairs be necessary, attach a tag to the
unit clearly stating your company name, address,
phone number, contact person and the nature of
the problem. Send the unit to:
Repair & Return Dept.
5614 Hollins Road
Roanoke, Va. 24019-5056
WARRANTY
Warranty information may be found on our website
at www.valcom.com/warranty.
