Valcom VE8004B Manual

QUAD NETWORKED PAGE ZONE EXTENDER
INTRODUCTION
The VE8004B/VE8004BR Quad Networked Page
Zone Extender enables voice access to four zones
of one-way paging over an IP-based network.
This allows page zone extension anywhere on the
network. The VE8004BR is made specifically for
rack mounting.
SPECIFICATIONS
Features

4 Audio Outputs or Inputs

4 Form A relay contacts

4 Contact Closure Inputs

RJ-45 for network connection

4 SIP identities for registering to a SIP
telephone system

Front panel LED status

Provides audio for up to 40 Valcom one-way
amplified speaker assemblies per zone

AUX audio input via RCA jack

Contact closure or VOX operation of audio
input

Page with music output, music mutes during
page

Output control contact closure provided
during paging output

VM-186 RJ-45 Connectors provided for audio
and relay interface

Compatible with 25 or 70 Volt amplifiers

2.5mm jack for optional DC power

Power over Ethernet (PoE) 802.3af compatible
Dimensions/Weight (VE8004B)

1.72" H x 7.00" W x 11.88" D
(4.36cm H x 17.78cm W x 30.18cm D)

Weight: 2.5 lbs. (1.13 kg)
Dimensions/Weight (VE8004BR)

1 Standard 19" Rack Unit

1.72" H x 16.50" W x 11.88" D
(4.36cm H x 41.91cm W x 30.18cm D)

Weight: 4.0 lbs. (1.81 kg)
VE8004B/VE8004BR
1

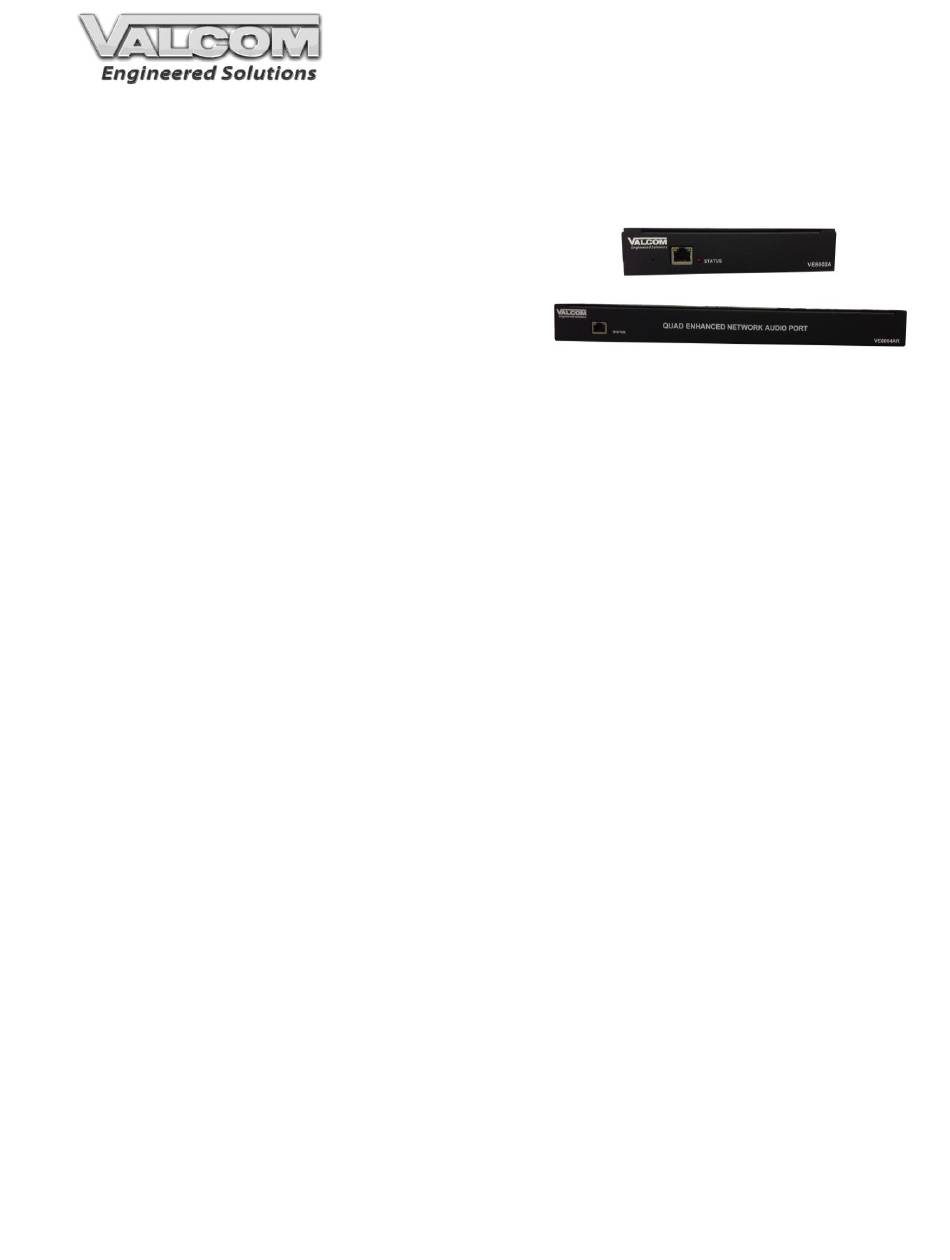

VE8004B
VE8004BR
Nominal Specifications
Input Impedance:
Input Level:
Voice Switch Sensitivity:
Music Source Input Impedance: 8 to 600 Ohms
Music Input Level:
Output Impedance:
Output Level:
Relay Current:
Nominal Power Requirements
Via back panel barrel connector:
Voltage:
Current:
Via 802.3af PoE Ethernet Switch:
802.3af:
These products are intended for use with a UL
Listed power source marked "Class 2" or "LPS"
rated 24VDC, or 48VDC (PoE).
PoE and all interconnected ITE are intended for
intra-building.
Environment
Temperature:
Humidity: 0 to 85% non-precipitating
Precautionary Designations
 WARNING-To Reduce The Risk Of Fire Or
Electric Shock. Do Not Expose This
Apparatus To Rain Or Moisture.
 AVERTISSEMENT - Afin de réduire les
risques d'incendie ou de décharge
électrique, évitez d'exposer le système à la
pluie ou à l'humidité.
