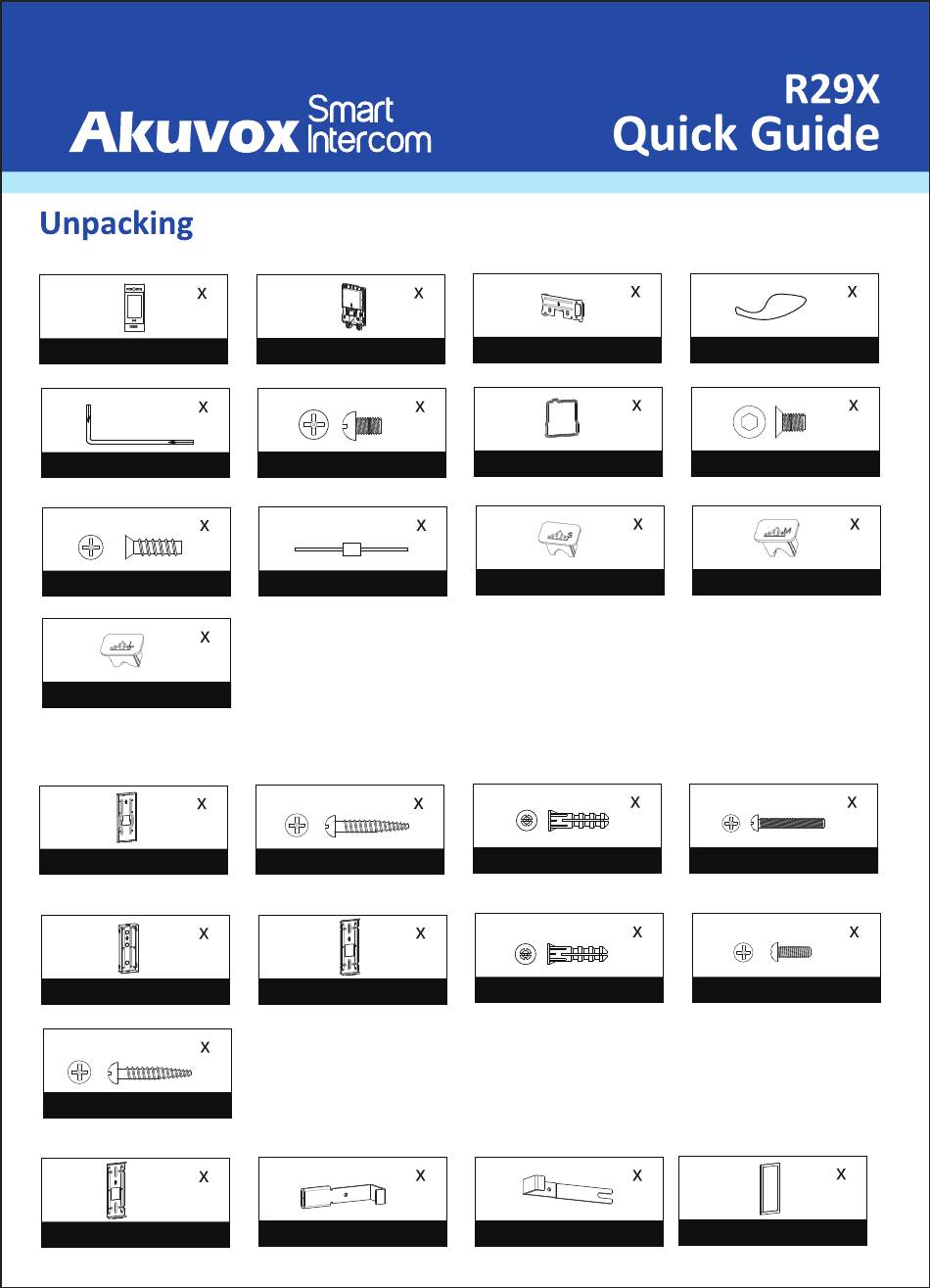

Before using the device, check the device model and ensure that the shipped box includes the following items:
1
R29X
1
Allen wrench
4
ST1.7x4 crosshead screw
1
Rubber plug (large)
Optional Accessories：
Wall-mounting Accessories (Please find in On-Wall Installation Kit box):
1
Wall-mounting box
Flush-mounting Accessories (Please find in In-Wall Installation Kit box):
1
Flush-mounting box
6
ST4x20 crosshead screw
Plasterboard Mounting Accessories (Please find in Plasterboard Installation Kit box):
1
Flush-mounting bracket
1
Wiring cover
6
M3x5 crosshead screw
3
Diode
6
ST4x20 crosshead screw
1
Flush-mounting bracket
2
Metal slider Ⅰ
1
Sealing pressing plate
1
Sealing ring
1
Rubber plug (small)
6
Plastic wall anchor
6
Plastic wall anchor
2
Metal slider Ⅱ
1
Rope
3
M3x6 hex socket screw
1
Rubber plug (medium)
2
M4x30 crosshead screw
6
M4x10 crosshead screw
1
Decorative metal frame
Advertisement
Table of Contents
Related Manuals for Akuvox R29X
Summary of Contents for Akuvox R29X
- Page 1 Before using the device, check the device model and ensure that the shipped box includes the following items: Rope Wiring cover Sealing pressing plate R29X Sealing ring M3x6 hex socket screw M3x5 crosshead screw Allen wrench ST1.7x4 crosshead screw Diode...
-
Page 2: Tools Needed
Spring M4x30 crosshead screw Main Camera Microphone Photosensitive Sensor Infrared Sensor White Light LED Face-liveness Detection Camera (only for R29C) Infrared LED Touch Screen Card Reader Loudspeaker Before You Start Tools needed (not included in shipped box) Cat Ethernet Cable Crosshead Screwdriver Electric Drill Voltage and Current Specifications... - Page 3 5.Use wet cloth clean device surface softly, and then wipe the surface with dry cloth for cleaning the device. 6.If there is abnormal situation of the device, including uncommon sound and smell, please power off the device and contact Akuvox Technical Team immediately.
-
Page 4: Wall Mounting
Wiring Interface To protect the device from potential damage caused by over-voltage, it is recommended to wire a diode into the circuit. Connect the anode of the diode to the negative cable of the lock, and connect the cathode of the diode to the positive cable of the lock. - Page 5 1.2 Without embedded box in the wall Fix the wall-mounting box Insert six plastic wall Position the wall-mounting Remove the box and use a 6mm with six ST4x20 crosshead box closely against the wall, anchors into the drilled electric drill to make six holes in screws.
- Page 6 2.2 Simple Installation (with lower resistance of vandalism) Use cement or non-corrosive structural adhesive to fill the gap between the Use six M4x10 crosshead screws wall and flush-mounting box. to fix the flush-mounting bracket Ensure that the adhesive material dry before proceeding to the next step. on the box.
- Page 7 Step2: Main Unit Installation For easier installation, hang the Make cables go through the wiring cover, Use four M3x5 crosshead screws device on the box/bracket using connecting to the corresponding interfaces to fix the wiring cover. the rope. as needed (for details, refer to "Wiring Interface").
-
Page 8: Device Test
1. Akuvox warranty does not cover intentional mechanical damage or destruction caused by improper installation. 2. Do not attempt to modify, alternate, maintain, or repair device by yourself. Akuvox warranty does not apply to damages caused by anyone who is not representative of Akuvox or an Akuvox authorized service provider. Please contact Akuvox Technical Team if the device need to be repaired.
