R29C-L

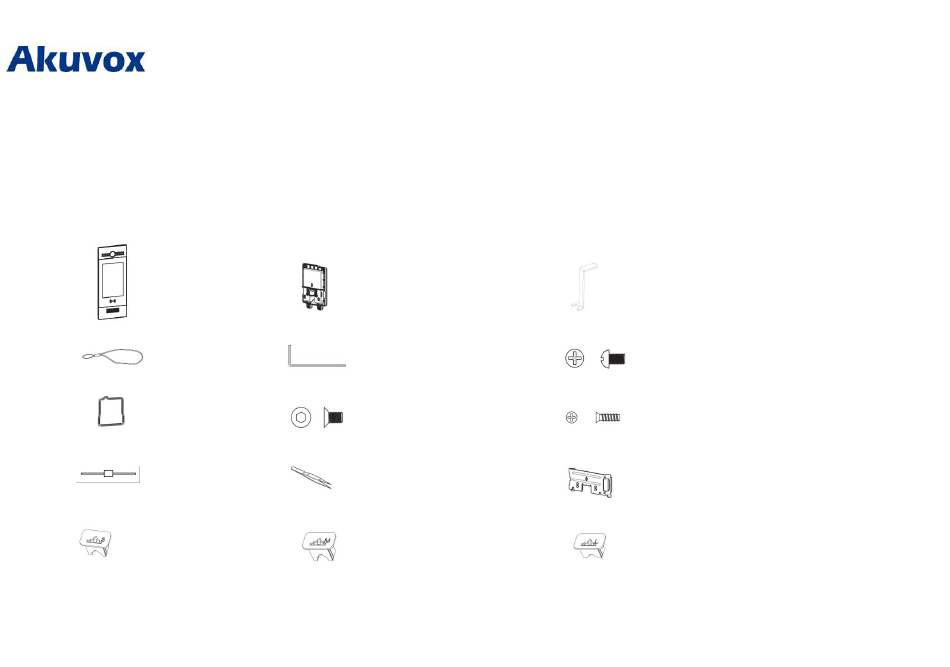

Unpacking
Before using the device, check the device model and ensure that the shipped box includes the following items:
R29C-L x1
Rope x 1
Sealing ring x 1
Diode x 2
Rubber plug (small) x 1
Installation Guide
Wiring cover x 1
Allen wrench x 1
M3x6 hex socket screw x 3
Tweezers x 1
Rubber plug (medium) x 1
LTE wrench x 1
M3x5 crosshead screw x 4
ST1.7x4 crosshead screw x 2
Sealing pressing plate x 1
Rubber plug (large) x 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the R29C-L and is the answer not in the manual?

Questions and answers

Related Manuals for Akuvox R29C-L

Summary of Contents for Akuvox R29C-L

  • Page 1 R29C-L Installation Guide Unpacking Before using the device, check the device model and ensure that the shipped box includes the following items: R29C-L x1 Wiring cover x 1 LTE wrench x 1 Allen wrench x 1 Rope x 1 M3x5 crosshead screw x 4...
  • Page 2 R29C-L LTE Module Accessories: LTE module x 1 M2x6 crosshead screw x 2 Wall-mounting Accessories (Please find in On-Wall Installation Kit box): Wall-mounting box x 1 Plastic wall anchor x 6 ST4x20 crosshead screw x 6 M4x30 crosshead screw x 2...

  • Page 3: Product Overview

    R29C-L Product Overview Main Camera Photosensitive Sensor Infrared Sensor White Light LED Infrared LED Touch Screen Card Reader Loudspeaker...

  • Page 4: Before You Start

    R29C-L Before You Start Tools needed (not included in shipped box) Cat Ethernet Cable  Crosshead Screwdriver  Electric Drill  Voltage and Current Specifications It is suggested that use 12VDC 1.6A power adapter to power on device.  AWG Sizes and Properties Table...
  • Page 5 R29C-L Requirements 1. Place the device away from sunlight and light sources to prevent potential damage. 2. Do not place the device in the high-temperature, and humid environments or in surroundings impacted by magnetic field. 3. Install the device on the flat surface securely to avoid personal injuries and property loss caused by device’s falling.
  • Page 6 5. Use wet cloth clean device surface softly, and then wipe the surface with dry cloth for cleaning the device. 6. If there is abnormal situation of the device, including uncommon sound and smell, please power off the device and contact Akuvox...
  • Page 7 R29C-L Wiring Interface To protect the device from potential damage caused by over-voltage, it is recommended to wire a diode into the circuit. Connect the anode of the diode to the negative cable of the lock, and connect the cathode of...

  • Page 8: Installation

    R29C-L Installation Step1: Wall-mounting Bracket Installation 1. With 86x86 mm embedded junction box in the wall Mark the hole positions at Attach the wall-mounting box to Remove two M4x30 crosshead the center of the four holes the embedded box (86) using two screws and wall-mounting box.
  • Page 9 R29C-L 2. Without embedded box in the wall Position the wall-mounting box closely against the  Remove the box and use a 6mm electric wall, aligning it with the wire’s location. drill to make six holes in the marked positions.
  • Page 10 R29C-L Step2: LTE Module Installation Remove the device's back cover. Remove the six M3x8 crosshead screws on the device's back cover. Warning: Do not open the back cover when the Note: SIM card is installed otherwise it might Please keep the screws carefully.
  • Page 11 R29C-L Put the back cover to the device and tighten it Connect the main RF cable and the div RF cable using the six M3x8 crosshead screws that are to the module as indicated in the dotted green removed before.
  • Page 12 R29C-L Step3: LTE SIM Card Installation Use the back end of tweezers to push Plug the SIM card slot using the SIM card fully into card slot at the rubber plug. bottom until hear a click. Please follow the steps if need to remove the SIM card...
  • Page 13 R29C-L Step4: Wiring Cover Installation Use four M3x5 crosshead screws to fix the Make cables go through the wiring cover, For easier installation, hang the device on   wiring cover. connecting to the corresponding interfaces the box/bracket using a rope.

  • Page 14: Step5: Device Mounting

    R29C-L Step5: Device Mounting Align the slots on the back upper of device with the Installation is completed, and corresponding hooks on the box, then press device downward into please remove the protective the box. film. Use the Allen wrench to tighten the device with two M3x6 hex...
  • Page 15 R29C-L Application Network Topology (third party) SIP Video Phone Indoor Monitor Network Video Recorder (third party) RJ45 RJ45 Power Adapter Power Adapter R29C-L R29C-L...

  • Page 16: Device Test

    1. Akuvox warranty does not cover intentional mechanical damage or destruction caused by improper installation. 2. Do not attempt to modify, alternate, maintain, or repair device by yourself. Akuvox warranty does not apply to damages caused by anyone who is not representative of Akuvox or an Akuvox authorized service provider. Please contact Akuvox Technical Team if the device...
  • Page 17 Notice Information Information contained in this document is believed to be accurate and reliable at the time of printing. This document is subject to change without notice, any update to this document can be viewed on Akuvox’ s website: http://www.akuvox.com ©...
