R29X
Rain Cover Installation Guide

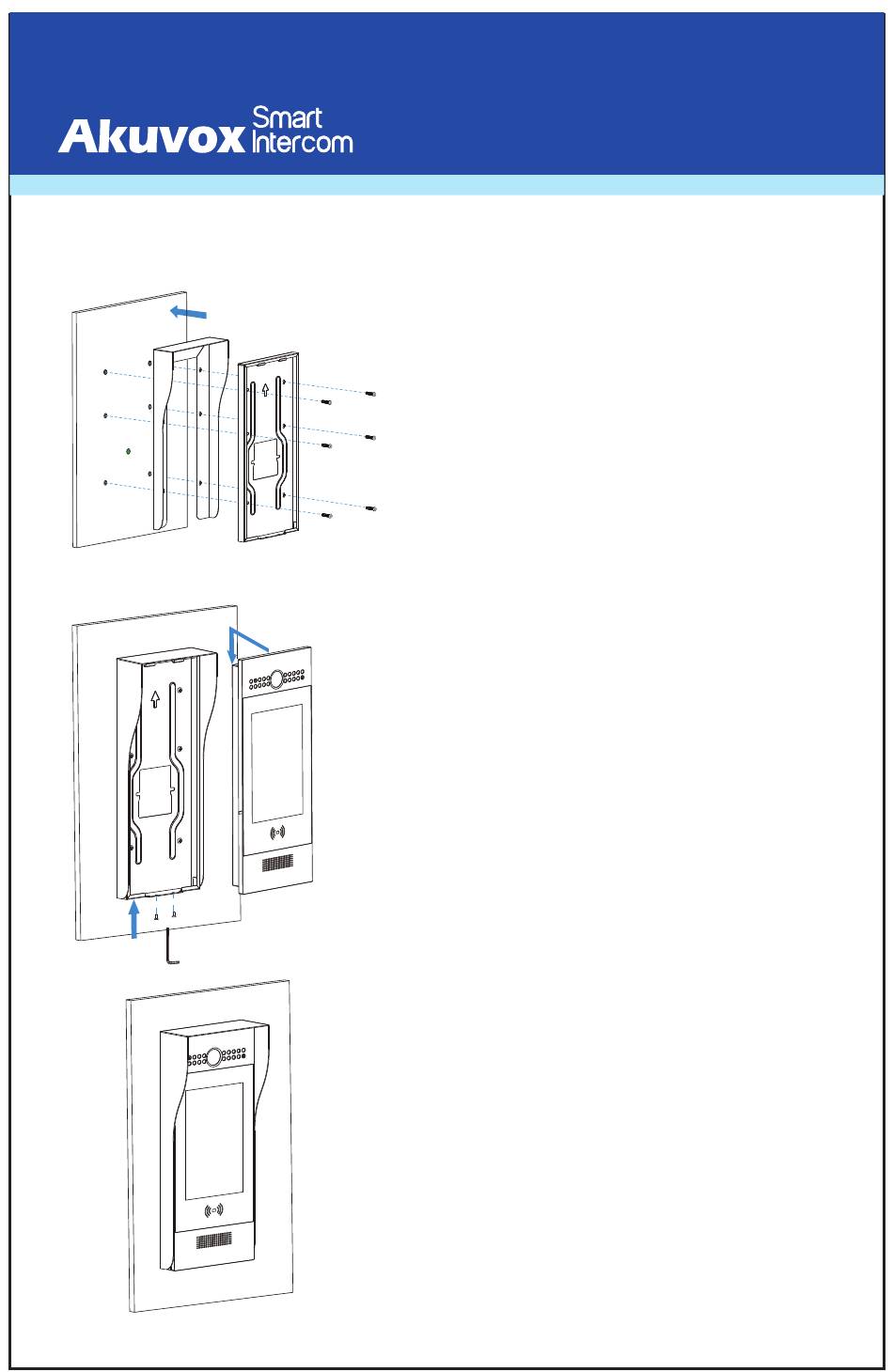

1. On-wall installation
Combine the wall-mounting box with the rain
cover and mark the six mounting hole positions
on the wall. Drill the holes and insert the six
plastic wall anchors into the holes according to
regular device installation requirement. Then
tighten the combined rain cover and the box
securely on the wall using the six tapping
screws (ST4x20).
Install the device on the wall-mounting box ,
press down the device and make sure that the
two hang holes on its top are fully hanged on
to the two square hooks on the top of the box,
then tighten the two countersunk machine
screws (M3x6) underneath the device using
the Allen wrench attached with the device.
If the device cannot be easily hanged on to the
square hooks, loosen the six cross screws
(ST4x20) slightly, move up the rain cover a
little bit to increase the clearance between the
rain cover top and the box top. Then retighten
the six screws before installing the device.
Installation completed.
