COM-HPC-sIDH Starter Kit User's Guide
6.4 AT Power Mode
To operate the system in AT Mode with an ATX power supply,
Refer to chapter 6.24 jumpers setting for more details, or follow instruction below.

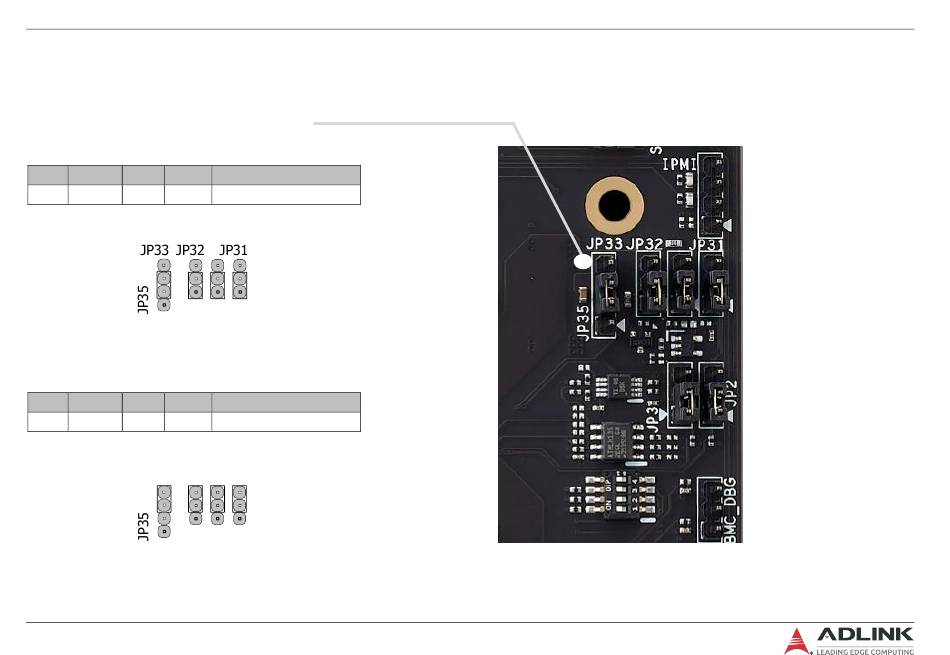

Jumpers Setting for ATX mode
JP31 JP32 JP33 JP35
1-2 1-2 1-2 2-3
Jumper Setting for AT mode
JP31 JP32 JP33 JP35
2-3 2-3 2-3 3-4
JP33 JP32
Page 46
POWER MODE
ATX Mode
POWER MODE
AT Mode
JP31
