Uniprise Solutions
General

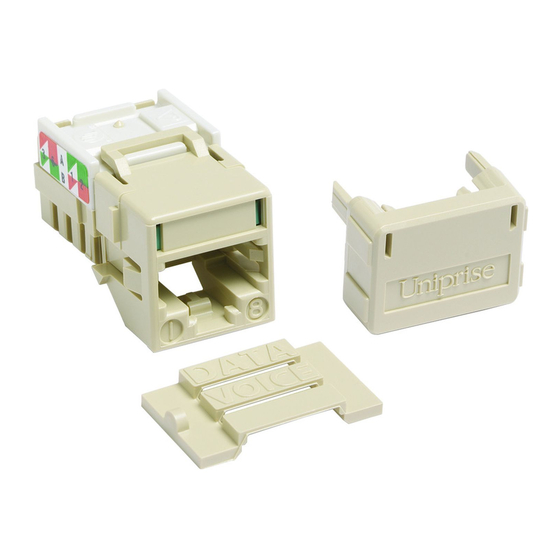

The Uniprise Solutions
colors. These products are modular RJ45 to insulation displacement connectors (IDC). They are typically
installed in faceplates at work locations and provide termination for the horizontal 4-pair cable at the IDC end,
and workstation cord insertion at the RJ45 end.
The following tools are available to aid in module termination.
Material ID
406477794
407484971
407728427
760122713
860333673
405423260
How to Contact Us
•
To find out more about CommScope
•
For technical assistance:
-
Within the United States, contact your local account representative or technical support at
1-800-344-0223. Outside the United States, contact your local account representative or
Authorized Business Partner.
-
Within the United States, report any missing/damaged parts or any other issues to
CommScope Customer Claims at 1-866-539-2795. Outside the United States, contact your
local account representative or Authorized Business Partner.
®
www.commscope.com
UNJ10G Outlet Instructions
®
UNJ10G outlets support Category 6a applications and are available in a variety of
Description
D-914 kit − includes impact tool and 110 blade
D-914 impact tool only
Replacement 110 blade for D-914 impact tool
Module removal tool (quantity of 5)
Hand termination tool (hand puck)
KS-22035-L2 spudger tool
®
products, visit us on the web at
© 2013 CommScope, Inc. All rights reserved
Instruction Sheet 860508548
Issue 3, October 2013
http://www.commscope.com/
For RoHS Inquiries:
CommScope Inc.
Corke Abbey, Bray
Co. Dublin, Ireland
Attn: Legal Department
Page 1 of 5
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for CommScope UNJ10G
Summary of Contents for CommScope UNJ10G
- Page 1 ® The Uniprise Solutions UNJ10G outlets support Category 6a applications and are available in a variety of colors. These products are modular RJ45 to insulation displacement connectors (IDC). They are typically installed in faceplates at work locations and provide termination for the horizontal 4-pair cable at the IDC end, and workstation cord insertion at the RJ45 end.
- Page 2 860508548 www.commscope.com Instruction Sheet Termination Procedure T568B Wiring Shown Pre-Termination Step For Angled Entry Note: Some mounting hardware and box space does not allow for cable entry directly from the rear. If a typical termination from the rear is done and the cable is then bent in the needed direction, performance and reliability can suffer.
- Page 3 860508548 Issue 3, October 2013 3. To place conductors, hold the pair down on the 4. Push conductors down into slot termination position and bend it for easy grasp as positions (check color codes). shown above. Then untwist the pair in a counter- Maintain pair twist up to the clockwise direction enough to open it up.
- Page 4 860508548 www.commscope.com Instruction Sheet Blue pair Orange pair Brown pair Green pair Ensure that front pairs are tightly routed 6. (T568B wiring shown) On the Reverse cable end, pull Green and Brown pairs back, eliminate the twist, and pull them tightly into place. Then route Orange and Blue pairs to the front positions.
-
Page 5: Module Removal
860508548 Issue 3, October 2013 Module Removal 1. To remove a module for inspection or repair, insert prongs of removal tool into openings at sides of module and press firmly. Removal tool The module wiring cap can also be used to remove a module.
