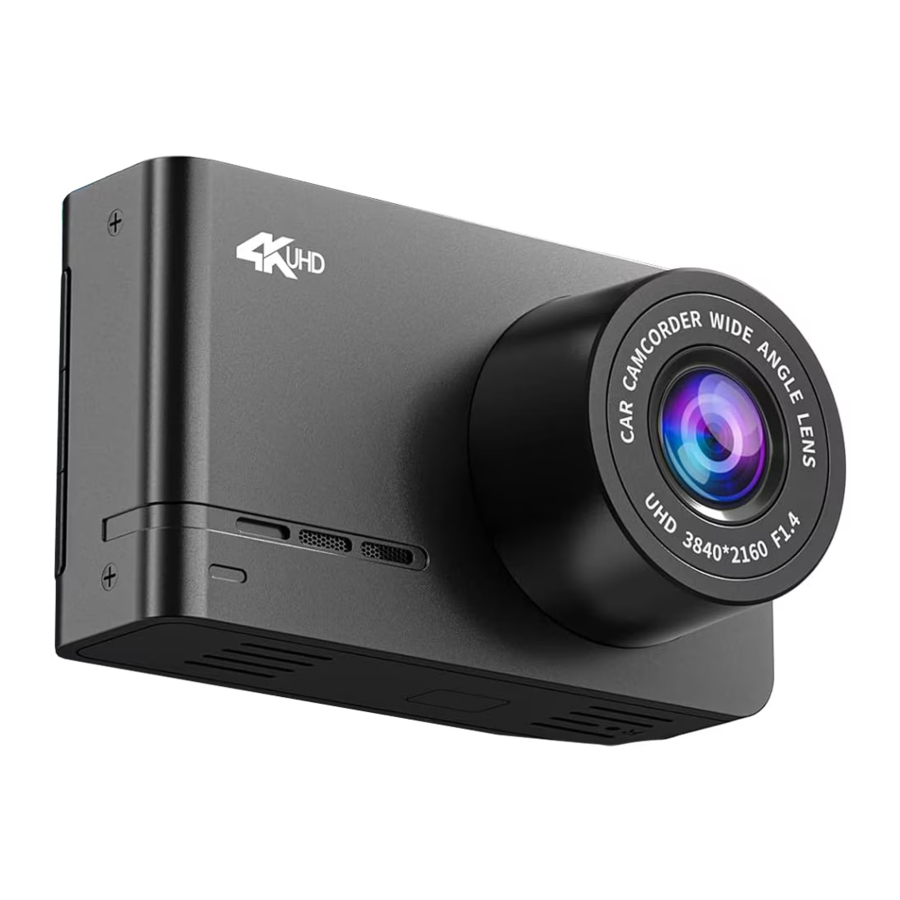

Wolfbox D07S Manual

Package Connects

Following items are included in the package, if any items are missing or damaged, contact WOLFBOX immediately.

Appearance

1. Built-in GPS bracket
2. Type-C
3. Sound collecting port
4. Micro SD card slot
5. Power
   Press and hold the power button for 3 seconds to turn off the power. In various modes, you can check the displayed items by short press.
6. Up
7. Menu/Mode
8. Down
9. Power light
10. Reset button
    (*Reset the and restart the system.)
11. Lens:
    Please remove the lens protection film before use

Button Function

	Power Button	Turn Screen OFF the Camera Switch Front and Rear Camera Screen when plug in rear camera Return LONG PRESS for 2-Seconds Turn OFF The Camera		Menu/OK	Enter Main Menu in Recording Mode Enter/Confirm Specific Settings Switch Front and Rear Camera Screen when plug in rear camera Play/Pause Current Video while in Play Mode
	UP	Lock the Current Loop Cycle Video File while Video is being Recorded. Scroll UP while In any Menu Setting Scroll to Previous Video Files while in Playback Fast Rewind while Video is being Played in Playback Mode LONG PRESS for 2-Seconds - to Turn ON/OFF wi-fi		Down	Take a Snapshot in Video mode Scroll Down while in any Menu Settings Scroll to Next Video Files while in Play Mode Fast Forward while video is being played in Play Mode LONG PRESS for 2-Seconds Stop Recording

About the Micro SD Card

When using a new MicroSD card, be sure to format it on the main body.

• Do not remove or insert a Micro SD card while the power is on.
• Use a Micro SD card with Class 10 or higher(8GB-128GB). We Recommend 32GB (ASIN: B09Q87X76V); 128GB (ASIN: B0B7KWV4CJ)
• For stable use, it is recommended to format the micro SD card regularly. Recommend: Once a month.
• Please press the " " button once to enter the menu settings, Then press the down button to scroll down until you see FORMAT, press the "" button to confirm to format the SD card.
• This product will check the Micro SD card at start up and will announce if it is not inserted or damaged, that can prevent missed shots.
• Please format SD card on D07S dash cam.

How to insert and remove a card

• To install
  Make sure the camera is turned OFF First. Then facing towards the front of the camera (Lens Side). Then insert the memory card half way in. Then use the finger nail or a paper clip to push the card all the way inward until it clicks and locks in place.
• To remove
  To remove the Micro SD card, gently push its edge inward until it clicks, and then pops out, then simply pull it out of the slot.

Installation

The camera comes with the default settings which allows you to start using your camera right out of the box without changing any settings. Make sure to format the memory card before first time use.

How to install the main body

1. Installation Position-Most people will install D07S next to the rear view mirror and opposite side from the drive. First, Stop the engine where there is some light and in a safe place.

2. Make sure to clean your windshield from the dust particles and attack attach the electrostatic sticker to the windshield.

3. Peel off the 3M tape attached to the GPS built-in bracket and attach it on the electrostatic sticker on the windshield.


About electrostatic Sticker

• Since the adhesive strength is strong on both sides and it is difficult to peel off once it is pasted, it will be troublesome if the pasting position is incorrect. Therefore, we design the electrostatic sticker to attached to the windshield first, then stick the bracket with 3M Adhesive on the electrostatic sticker. You can easily readjust location by sticking the 3M Adhesive on electrostatic sticker and peel it off.
• To strengthen the fixing force, do not attach the main body and leave it for 24 hours or more.
• Re-sticking may weaken the adhesive strength of the tape and cause it to fall off. If you need more accessories, please CONTACT US.

4. Use the power cord to connect the Type-C Port of the product to car's cigarette lighter socket.


HOME SCREEN

Home Screen Status Icons

ICONS	WHAT DOES IT MEAN?	ICONS	WHAT DOES IT MEAN?
	Generates in 1 min/3 mins/5 mins per file		Show SD card status
	Indicates that the rear camera is not connected		Display GPS status
	Displays the recording status and recording time. The red icon flashes during recording to show the current video recording time		Display voice recording status
	Display the date and time of the machine		Indicates that the rear camera is connected
	Display recording resolution		G-Sensor sensitivity display
	Show video recording mode		Emergency Video Lock
	Red led blinking: Recording Video No Red led: Not Recording Video		Stop Recording Video
	Power on		Enter the menu

Power ON/OFF

<Power ON>

• If you turn on the engine (ACC on) while the cigar power adapter is connected, the power will be turned on automatically and the opening screen will be displayed.
• Press and hold the power button to turn off the power during startup, and then briefly press the power button again to turn on the power of the unit and display the opening screen.


Micro SD card check function

This product will check the MicroSD card at startup and will announce if it is not inserted or damaged, that can prevent missed shots.

<Power off>

• When the engine is turned off the power is automatically turned off.
• If you press and hold the power button while the power is on, the power of this unit will be turned off.


Reset

• Press the RESET Button at the bottom of the camera once. If the camera is freezing or stuck where no buttons will respond, then please press the RESET button only ONCE at the bottom of the camera with a paper clip or tip of the pen while it is turned ON. This will restart the camera.


About Time Settings

You can set the GMT time-zone value instead, so the camera will set the date and time based on the GMT value selection when it receives the GPS signal lock Automatically. You can set the Daylight Saving Time by adjust the time-zone.

2-CAMERA MODES

D07S has 2 different camera modes:

1. Video mode
2. Playback mode

Video Mode

When the engine is turned on, the power is automatically turn on.

Button function in video mode

Button	Icon	Function	Button	Icon	Function
		Long press to power on/ off Press once to switch the view display			Press once to enter the main menu
		Long press to turn on/off the wi-fi function (If turned on, the password will be displayed. You can use the power button to check) You can manually lock the file by short press			Long press to stop recording Press once to take a snapshot

There are four resolutions:
*Front only: 3840*2160P
*Front only: 2560*1440P

Playback Mode

Playback mode lets you play your Video file or photos. It can even let you delete or lock any videos while viewing it.

	Normal files of front camera		Locked files of rear camera
	Normal files of rear camera		Photos of front camera
	Locked files of front camera		Photos of rear camera

Short press "" button to playback the file.

Long press "" button to delete/lock/unlock the selected file.

• [Delete Current]: Delete the displayed file
• [Delete All]: Delete all files
• *Unable to delete locked file. You can manually unlock and then erase.
• [Lock]: Manually lock the display file
• [Unlock]: Manually unlock the displayed files

Photo and Video Files Screen

<Still photo file>

<Video File>

How to connect wi-fi

1. Download the WOLFBOX app
   You can download this app from the app store


   or scan the QR code below to download the Wolfbox App.

2. Turn on the wi-fi function
   Press the " ", select "setting", then select [wi-fi] and turn the wi-fi function on.
3. Connect wi-fi
   Open the phone WLAN page and connect the D07S wi-fi. Then Enter the default password: 12345678. To join the network.
4. Open the Wolfbox app
   Once your dashcam is successfully connected to wi-fi, enter the APP and you will see the page for adding devices.

Play on computer

How to output data on computer:
The video recorded by this product can be displayed in conjunction with Google Maps by installing the dedicated viewer software on your computer.
* An internet connection is required.

For Android Phone

Please choose to allow when these prompts appear.

For iPhone

If you get this pop up for your iPhone while using wi-fi feature, make sure to tap on "ALLOW"or "OK".

Check/Play date with APP

• You can check and play the data by pressing on the recording screen to enter the data file.
• On the data file screen, press[Edit],select the file you want to download, and press [Download] to download the file and ave it to the [local album] which you can find on the interface of APP, then you can download to the smartphone album.

You cannot delete the lock file unless unlocked the file manually.

You can select a local album, play the downloaded data, and view it in conjunction with Google Maps. (internet connection environment is required.)

Edit and share with the APP

You can enter local albums, edit downloaded files and share them in the APP interface.

GPS Player installation

Correct Video Player to Play 4K Videos

We recommend GPS Media player which can view google maps. You can get it free at https://wolfbox.com/gps-player/

1. To see the Exact GPS route with the video on google maps
2. Play back your recorded videos
3. Check Driving Speed
4. Show longitude and latitude
5. Your video files (F represents the front camera video, R represents the rear camera video)

About the Camera Settings

Short press "" button to enter the setting interface after power on. In this case, the video recording will be stopped and you get the Settings Menu.

• [G-Sensor]: Off /low /medium/ high
  G-Sensor is a 3-axis impact gravitational accelerometer which is designed to detect physical and gravitational forces on the camera. The video will be locked-in the event when G-Sensor is triggered due to physical or gravitational impact force on the camera, the current loop cycle length of video file will be locked so it will NOT be deleted by loop cycle function.
• [Fatigue Driving]: Off/1H/2H/3H/4H
  A reminder will be made when drive for 1H/2H/3H/4H continuously.

• [Speed Stamp]: Speed stamp on/off
• [GPS Stamp]: GPS stamp on/off
• [Speed Units]: KMH/MPH
• [GPS Info]: This feature allow you to see your current geographical location in Latitude & Longitude.
• [RearCam Flip]: You can flip the angle of the rear camera by 180°.
• [Mirror Flip]: You can Mirror image left and right.

• [APP]: QR code to download the APP
• [wi-fi]: wi-fi on / off
• [Language]: This setting allows you to choose your language setting for camera's firmware.
• [Time Format]: 12H/24H
• [Date/Time]: You do not need to manually adjust the time because GPS will automatically update the time based on your location.
• [Time Zone]: Here you can choose your desired or local time zone setting based on GMT value.

• [DST]: You can adjust the DAYLIGHT SAVING TIME ON/OFF.
• [Frequency]: Here you should choose the frequency accordingly to your power supply specification used in your country based on your geographical location.
  60 Hz (USA - North America)
  50 Hz (Europe - Most Asian Countries)
• [ClickTone]: This feature allows you to turn ON/OFF camera button's beep sound.
• [Screen Saver]: OFF-This will keep the video ON all the time.
  10S/30S/2Min-The screen will turn off, but the recording will remain.
• [Parking Monitoring]: Requires hardwire kit(sold separately)
  Does not work without hardwire kit (ASIN: B0BKPBFFS8 or B09X1L1GMX).
• [Format]: This feature will allow you to format inserted memory card, all the data will be deleted.

• [Default Setting]: Here you can restore all the settings to factory default settings.
• [Version]: Here you can check the current firmware version installed on your camera.
• We will notify you via Amazon if there is a new software version.

Product Specifications

FAQ

Please READ ME Before Installation

When you encounter difficulties, please read this manual for a quick solution, if you still cannot solve it, please feel free to CONTACT us.

Type-C D07S:

1. APP: "WOLFBOX"
2. Hardwire kit for Parking Mode Asin: B09X1L1GMX or ASIN:B0BKPBFFS8

Please reach us ASAP if professional help needed. 32GB TF SD card/ Hardware Kit, you can choose one for free.(Shipping address needed)

Type-C D07S:

Q: How to download the app for the mini dash cam? Where could I get the app for the mini dash cam?
A: IOS / Android Devices: search "WOLFBOX" on App Store / Google Play store.

Q: Why can't my dash cam be turned on? Why does my dash cam automatically turn on and off after using it for a period of time?

A:Pls confirm whether you're using the original accessories first. If not, pls use the original accessory and check the problem.

Q: How to connect wi-fi?
A: You should download the app first, then connect the wi-fi as below steps:

1. Turn the wi-fi on: Long press the UP button to turn on
2. Find the WLAN on your phone and link it (password: 12345678 or check it on the screen on dash cam).

Note:
We have tested almost all common smartphones with Android, IOS system on the market. If there still has problems connecting to the app, please feel free to CONTACT US. We will give technical support.

Q: Why the app keeps disconnecting. How can I fix this?
A: The available distance of the wi-fi connection is 9-15ft, and it will be automatically disconnected if out of the range. If still disconnect within this range, you can forget the wi-fi in your phone and restart both the mini dash cam and your phone, then re-connect. Problem still exist, pls tell us to get further help.

Q: SD Card error occurs/The SD card isn't compatible with the mini dash cam/ After formatting card in device, it intermittently fails requiring to format again.
A: Please format the SD card or replace the SD card. Recommended TF Card Asin: B09Q87X76V; B0B7KWV4CJ

Note:
Class 10, U3 Speed Micro-SD Card for 4K Video is required. Please DON'T USE any "SanDisk Ultra" or "Generic Class 10 for HD Video" Cards from third party sellers. They are NOT made for 4K high-end dash cam. lf you have any problems about SD card, please tell us and we will support you to solve. Avoid fake cards.

Q: Won't loop recording/Loop recording doesn't work/Stop recording after recording a video.
A: Please format the SD card first. If still doesn't work, you can replace the SD card. Or CONTACT US directly, we will help you solve it.

Q: After connected to wi-fi, phone shows no network.
A: Because the main function of D07S's wi-fi is to play back video, it does not have the function of surfing the Internet, which means that after the wi-fi is connected, it will show that there is no network. But the APP can be used normally.

Q: My date and time is constantly changing/I have to reset the date&time again and again.
A: Please set [Timezone] before setting Date/Time.

Q: How to connect the hardwire kit.
A: How to find the BATT, ACC correctly/Why the battery still drain out after connected to the hardwire kit.

Q: How to find the BATT, ACC correctly/Why the battery still drain out after connected to the hardwire kit.
A: BATT with electric all the time no matter the car is on or off, ACC only have electric when the car is on, you can use an voltage tester pen to check it accordingly. If you're still not sure about it, please provide your fuse box drawings to us, we will let our technical department to help you find it. If you connect both the yellow and red cable to the BATT, it will cause the battery drain-out.

Note:
When there is a "card error" or the loop recording function cannot be used normally, please download the latest firmware from the official website. If you still can't solve the problem, please feel free to contact us. https://wolfbox.com → Download → Firmware

Great Customer Service

If you have any problem about the function or installation, please feel free to TELL us.

Scan to Get D07S FAQ and Operation Videos

Installation of hardwire kit

Whats APP

Line

WOLFBOX APP

For more information: WOLFBOX

E-mail: service_us@wolfbox.com

Website: www.wolfbox.com

Europe: Service_EU@wolfbox.com

Other Countries: Service@wolfbox.com

Phone: +1 888 296 8399

Check us out here!
