Wolfbox G850 Pro Manual

Product Specifications

Package Contents

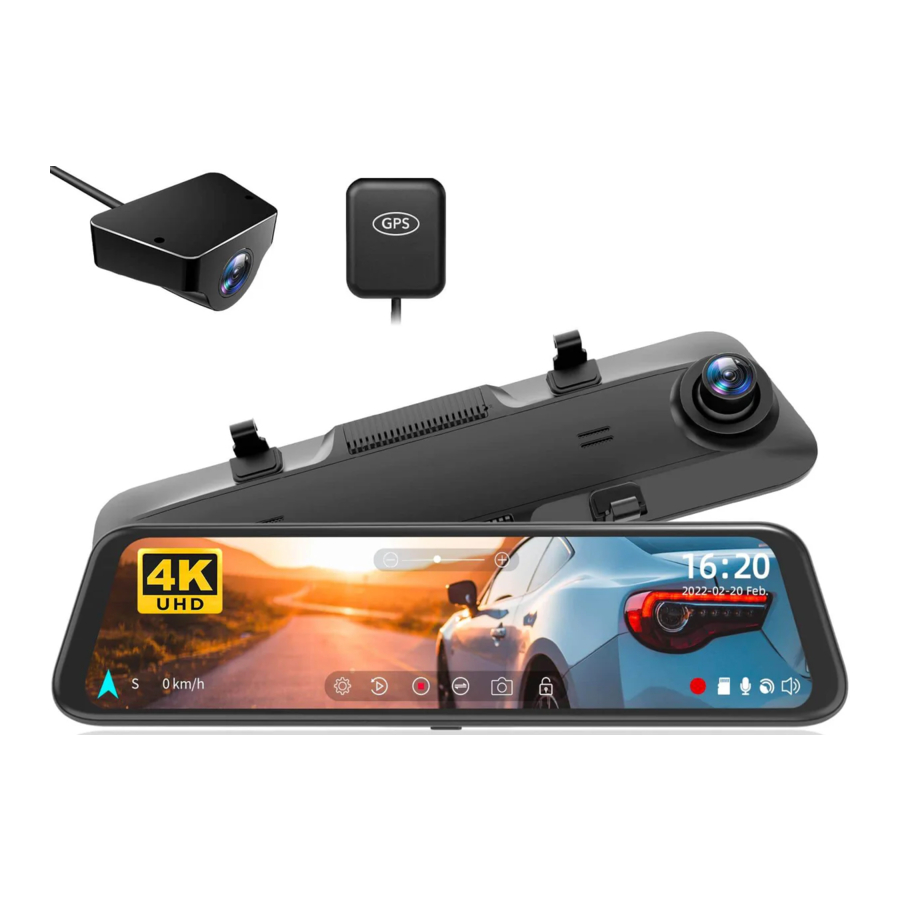

Appearance

User Interface Overview

Icon	Description
	Speed & Driving Direction: Once GPS is connected, the proper information will be displayed
	Date & Time
	Turn on/off the device sound
	Turn on/off Wi-Fi
	Access specific voice command entries
	Turn on/off Smart Drive Display Interface.
	Tap to enter the Smart Drive menu
	Start/Stop Recording
	Switching between front, rear and split-screen camera view
	Snapshot: Take a Snapshot
	Recording Status: Flashing yellow indicates Lock-Recording (The recorded video will not be overwritten)
	File Playback: Playback the video & photo
	Turn on/off audio recording
	Settings: Tap to enter the settings menu

Playback Mode

When you power on the dash cam, it will start recording automatically. Click/select to enter playback mode.

	Stores images captured by the front camera
	Normal Video: Select it to view recorded videos
	Photos: Select it to check photos
	Delete
	View videos on full screen
	Stores images captured by the rear camera
	Locked Video: Select it to check locked videos
	Select
	Lock the video

Feature Overview

Click the setting icon to enter the function menu, where you can adjust various functions and parameters of the entire machine.

Feature	Option	Description
Resolution	4K+1080P/2.5K+1080P/1080P+1080P	Video resolution selection.
Display Modes	F-cam/R-cam/Split Screen	Set the default video recording interface display screen upon startup.
Sound Record	ON/OFF	Set whether to record sound.
Loop Recording	1 Minute/2 Minutes/3 Minutes	Set the duration for loop recording of video files.
G-Sensor	OFF/Low/Medium /High	Set the sensitivity of the G-sensor.
Fatigue Reminder	OFF/1 Hour/2 Hours/3 Hours	Set the time for fatigue reminder.
Wi-Fi	ON/OFF	Set the status of the device's WiFi connection.
Volume Setting	OFF/Low/Medium /High	Set the volume level of the device.
Click Tone	ON/OFF	Set the switch for key tones.
Screen Saver	OFF/10 Seconds/30 Seconds/2 Minutes	Set the activation time for the screen saver.
Screen Brightness	/	Adjust the screen brightness.
Exposure	/	Adjust the contrast of the front camera.
Voice Control	ON/OFF/Voice Command	Set the switch for voice control functionality.
Smart Drive	Forward Collision/Lane Departure/PedestrianCollision/...	Manual calibration or specific Smart Drive feature settings.
Mirror Flip	ON/OFF	Adjust the left-right flip of the rear camera image.
Rear cam Flip	ON/OFF	Adjust the up-down flip of the rear camera image.
Reversing Line	ON/OFF	Set the switch for the reversing line display function.
Parking Mode	ON/G-Trigger Recording/12H Time-lapse recording/24h Time-lapse recording/48h Time-lapse recording	Monitor the vehicle's status after the engine is turned off.
GPS	/	Display recorded GPS data.
GPS Display	ON/OFF	Set whether to display GPS information on the recording interface.
Date Stamp	ON/OFF	Set the switch for time watermark.
Speed Stamp	ON/OFF	Set the switch for speed watermark.
GPS Stamp	ON/OFF	Set the switch for GPS watermark.
Speed Unit	KM/H/MPH	Set the unit for speed display.
Language	English/Français/ Deutsch/Italiano/ Español/...	Set the language for the device.
Clock Setting	/	Adjust the current time displayed on the device.
Time Format	YY-MM-DD/DD-MM-YY/MM-DD-YY	Set the time display format.
Time Style	12 Hours/24 Hours	Set the time display system.
Time Zone	/	Adjust the time zone based on geographical location.
DST	ON/OFF	Set the switch for daylight saving time.
Ficker	50 Hz/60 Hz	Set the screen refresh rate.
Video Encode	H.264/H.265	Set the video encoding format.
Help Center	/	After-sales contact information.
Format Reminder	OFF/Each 15 days/Each 25 days	Set the reminder for formatting the SD card.
Format SD Card	/	Format the SD card and delete videos and photos stored on it.
Reset Setup	/	Restore all settings to factory defaults.
APP	/	Provide QR code for downloading the app.
Product Information	/	Display device information.

Note:
Parking Mode requires a hardware kit (purchased separately) in order to activate.
With the hardware kit connected and Parking Mode enabled, the dash cam will enter Lapse Recording mode when the car turns off. This mode captures video at 1 frame per second until the set duration ends or the car battery voltage drops below 12V.

Voice Control Feature

Fast control through simple voice commands.
When the recording interface displays a white icon , it means that the Voice Control feature is activated.
You can enable/disable the voice control feature through the "Voice Control" in the menu.

Note:
You have two ways to view specific voice control commands:

1. Tap on the voice control icon on the recording interface.
2. Tap on the "Voice Command" submenu under the "Voice Control" feature.

Smart Drive Feature

Smart Drive is designed to enhance safety and convenience throughout your vehicle's journey. You can customize the settings of each feature according to your requirements in the menu.

1. Calibrate
   Manually calibrate the Smart Drive features. Please refer to the instructions within the calibration feature for detailed steps.
2. ON/OFF
   Turn on/off the corresponding feature.
3. Setting
   Manually adjust the detailed settings for each Smart Drive feature.

Here is a detailed introduction to the Smart Drive features:

• ADAS (Front Camera Smart Drive Features)
  1. Lane Departure
     Automatically detects lane markings and alerts you when the vehicle deviates from the lane.

  2. Forward Collision
     Accurately calculates the distance to the vehicle ahead and warns of potential collision risks.

  3. Pedestrian Collision
     Accurately calculates the distance to pedestrians or non-motorized vehicles ahead and warns of potential collision risks.

  4. Stop & go
     Automatically monitors the front vehicle's departure and reminds you to start in a timely manner.

  5. Forward Distance
     Automatically monitors the distance to the vehicle ahead and reminds you to adjust the following distance.

• BSD (Rear Camera Smart Drive Features)
  1. Lane Change Assist
     Automatically monitors the side and rear areas of the vehicle and provides lane change assist alerts when the vehicle or rear vehicle changes lanes.

  2. Rear Collision
     Accurately calculates the distance to the vehicle behind and warns of potential collision risks.


Note:

1. The dashcam will automatically calibrate the Smart Drive features every time it starts up. Please drive at a speed of 20km/h(10mph) or above for 2-3 minutes on the road to complete the automatic calibration. If GPS is not positioned or the signal is weak, the speed measurement may be inaccurate.
2. The Lane Change Assist feature includes both the vehicle's lane change assist and the rear vehicle's lane change assist. When using the rear vehicle's lane change assist, please ensure that the device has completed the rear calibration. When using the vehicle's lane change assist, please ensure that the device has completed both the front and rear calibration.

Play on APP (About Wi-Fi and APP)

The Wi-Fi feature has been designed so you can pair your dash camera wirelessly with your smartphone and access your recordings instantly from the dash cam. Here you can view, download and share your videos easily with your friends and family.
The app "WOLFBOX" is a free app that allows you to operate this WLAN built-in drive recorder from your smartphone.

How to connect Wi-Fi

1. Download the "WOLFBOX" app
   Go to the following address to download the "WOLFBOX" app: https://wolfbox.com/app/ You may also use your smartphone to scan the QR code to go to the download page.

2. Enable Wi-Fi
   Go to Settings to turn on Wi-Fi. Go to Settings to turn on the Wi-Fi. Then, the device screen will display the Wi-Fi name and password.
3. Connect Wi-Fi
   To connect your iPhone or Android phone to the G850 Pro's Wi-Fi network, go to Settings > Wi-Fi and select G850 Pro WiFi. Then, enter the default password: 12345678.
4. Open the "WOLFBOX" app
   Once your mobile phone is connected to the G850 Pro's WiFi network, open the WOLFBOX app. The camera will sync automatically, and you should see the live video feed on your phone.

Edit and share Your Videos in the App

In the app, you can view and edit downloaded local albums and share them with others.

How to Play Using a Computer

We recommend the application "GPS Media Player" to watch and play dash cam videos, and view Google Maps.
You can download it for free on Mac or Windows from the following link: https://wolfbox.com/gps-player/

1. Video play window (Front)
2. Video play window (Rear)
3. Map and track display
4. Play control panel
5. Speed and driving state indication
6. Play list

Note:
If you record the front and rear dash cam videos simultaneously and add them to the playlist, you can play them side by side in split-screen mode.
To play a video file, drag and drop it onto the video player.

Installation

Before installing your dash cam, please test its functionality with all accessories and change the default settings to your preference.

SD card installation

Ensure that the dash cam is powered off when inserting or ejecting the SD card.

• The Front view of the host

• The Back view of the host


Unit installation

1. Place the head unit (WOLFBOX Mirror) on the rear-view mirror by hand, and be sure to separate the silicone brackets on both sides of the rearview mirror. Buckle the device to the rearview mirror with the rubber straps. Adjust the front lens to a desired angle.

2. Connect the car charger to the charger adapter to supply power for the dash cam.


Power ON/OFF

• Short press the power button to turn on, long press the power button to turn off.
• When using the car charger, if the cigarette lighter port is ACC, the dash cam will automatically turn on when the car is started.

Rear camera installation

• Outside the car bracket

• Inside the car bracket


Rear Camera Wiring Instructions

1. Dash camera
2. Connected to reversing light
3. Outside the car bracket
4. Inside the car bracket

Note:
The rear camera has two wire routing options, both of which conceal the wire along the edges of the door.

1. Connect the rear camera cable to the mirror
   Plug the rear camera cable into the AV interface of the unit.

2. Rear camera cable routing
   Route the rear camera cable to the rear of the car, leaving some slack. Insert the cable into the gap in the front windshield and along the upper end of the door using the included tool.
   If you choose to install the rear camera inside your car, fix it on the rear windshield after routing the wiring.

3. Remove the panel
   Open the trunk and remove the interior panel that covers the other side of the license plate mount area. Use a trim removal tool or other thin device to pry the panel open.

4. Fix the rear camera and connect the cables
   Fix the rear camera near the license plate light with 3M glue, and connect the rear camera cable through the license plate light hole to the rear camera cable.

5. Connect the red wire to the reverse light's positive terminal
   Find the positive terminal of the reverse light. This is the terminal that has voltage when the car is in reverse gear. To find it, step on the brakes, put the car in reverse gear and measure the voltage at each terminal. The terminal with voltage is the positive terminal. Strip the positive cable and wrap it with the red cable from the camera. Insulate the connection with electrical tape. Test the connection by putting the car in reverse gear and seeing if the dash cam enters reverse mode.


GPS Installation

Position 1:
Install the dash cam in the right corner of the central console and hide the wiring along the edge of the front windshield using double-sided tape.

• Considering the use effect and installation convenience, we usually recommend customers install it at position 1.
• You may also test different locations for the dash cam to find the one that works best for you. Just make sure that the black side is facing up to receive the GPS signal.
• Once the GPS is installed, the GPS icon on the home screen will appear. After the GPS signal has been received, the device's GPS will show direction and speed.


Trouble Shooting

• Can rear camera images be transmitted wirelessly?
  The G850 Pro Wi-Fi comes with a rear camera cable through which the rear camera video is transmitted. The Wi-Fi feature is only used to connect the phone to the dash cam.
• Is it possible to monitor the vehicle remotely via Wi-Fi on the G850 Pro?
  Considering the limited Wi-Fi range, it is not possible to monitor the vehicle remotely via the App connecting to G850 Pro.
• Rear camera image blurred or not detected?
  For "Blurred rear image" issue, please make sure that the protective film on the lens is removed and wipe the lens with a cleaner. If the focusing issues are caused by high temperatures, please contact us for support.
  If you are getting a "Rear camera not detected" error, check the AV input on the top of the mirror and the rear camera cable for damage, especially at the connector.
• How to connect the unit to App via Wi-Fi?
  1. Please make sure that Wi-Fi is turned on manually in settings.
  2. Search for "WOLFBOX" in the app store to download the latest version of the app.
  3. Check the Wi-Fi list on your smartphone to see if the network named "WOLFBOX" can be found.
  4. If the app displays "Connection Failed", please find "Get Support" in the app to contact us.

Precautions

1. For further inquiries, please contact our customer service via email at service@wolfbox.com.
2. Please use original accessories to avoid compatibility issues and insufficient current supply from non-compatible accessories. For example, 2-in-1 or 3-in-1 cigar sockets will not provide enough current to the device.
3. Please do not tamper or splice the rear camera wire for the purpose of extension, as the rear image/feed to the display may be lost. The length of the included cable for the rear camera is 20 feet, and is suitable for most types of cars.
4. If you wish to use a micro SD card with a capacity > 32GB, Please change the micro SD card [Class10 (10MB/s) required] format to FAT 32 on PC (a 64GB card is included in the package).

• Keep small accessories out of the reach of children. If this product is damaged or malfunctions, stop using it immediately and contact WOLFBOX support. Continued use may cause fire, electric shock or vehicle failure.
• This product is intended to be used as reference material in the event of an accident. We do not guarantee its effectiveness or admission as complete evidence.
• Please note that this product may infringe on privacy and other rights depending on how it is used. We are not responsible for any cases where this product infringes on privacy or other rights.
• This product is for DC12V/24V vehicles only.
• The specifications and appearance of this product are subject to change without notice for improvement.
