Summary of Contents for Wolfbox i07

Page 1 Mirror Dash Cam i07 Instruction Manual...
Page 2: Table Of Contents
INTRODUCTION PRE-CAUTIONS APPEARANCE ABOUT THE MICRO SD CARD INSTALLATION HOME SCREEN POWER ON/OFF MENU SETTINGS...
Page 3 PLAY ON CAMERA PLAY ON APP PLAY ON PC TROUBLE SHOOTINGS i07 RELATED ACCESSORIES PRODUCT SPECIFICATIONS...
Page 4: Introduction
INTRODUCTION Thank you for purchasing WOLFBOX i07 Dash Cam. This product is a triple channel dash cam which offers 150° front camera, 160° inside camera and 155° rear camera, it can simultaneously monitor the front, rear, and interior of your vehicle while providing audio at 2.5K + 1080P + 1080P, protecting you from potential accidents and liability issues.
Page 5 Please check the functionality of dash cam with its all accessories before installation. If you want to ﬁnd a professional for installation, please check the function ﬁrst, so as to prevent the inconvenience and installation cost loss caused by the machine problem after the installation.
Page 6 Please conﬁrm whether your cigar power port is ACC. (if the cigarette lighter is still charged after the car is turned off, please use the hardwire kit or unplug the car charger after the car is turned off, otherwise it may exhaust your car's power supply.) (Note: This happens in some Ford/Audi cars, and electric cars).

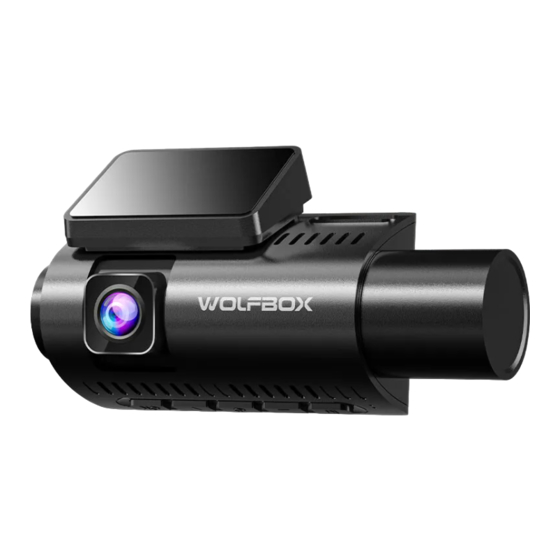

Page 7: Appearance
APPEARANCE IPS Screen In-Car camera GPS built-in bracket Rotate to adjust the In-Car camera image Type-C Power port Rear Camera input terminal(AV-IN) TF Card slot Front Camera(Can rotate to adjust front camera image) M button UP button Power button Down button OK button NOTE: When inserting the rear camera cable, please insert it ﬁrmly to ensure...
Page 8: About The Micro Sd Card
About the Micro SD Card When using a new MicroSD card, be sure to format it on the dash cam. Do not remove or insert a Micro SD card while the power is on. Use a Micro SD card with Class 10 or higher(32GB-512GB). 32GB card is included in package.
Page 9: Installation
Installation When you use the dash cam for the ﬁrst time, the dash cam comes with factory default settings and you do not need to set it manually. NOTE ： Format SD before use! Please refer to page 11 for SD card settings How to install the main body 1.
Page 10 2. Make sure to clean your windshield from the dust particles and attack attach the electrostatic sticker to the windshield. 3. Peel off the 3M tape attached to the GPS built-in bracket and attach it on the electrostatic sticker on the windshield.
Page 11 Connect the cigar plug cord connector in the correct orientation. Connecting in the wrong direction may cause malfunction or damage. If you cannot connect successfully, check the connection part carefully before connecting. Only use WOLFBOX's Car Charger, otherwise the camera may frequently reboot or ﬂicker LCD due to insufﬁcient power.
Page 12 How to install the rear camera In the package is the in-car rear camera which is mounted on the car rear windshield. If you need to install it outside the car, we have a dedicated exterior rear camera(Asin: B09H5KBK9X) and license plate bracket(Asin: B09J7VXQ2T) 1.
Page 13 3. Route your rear camera's power cable to the front of the car. If you'd like, use a trim removal tool to pop out the headlining panel directly above your windshield. Then, run your cable through the exposed chamber. 4. Power on the dash cam with box included car charger,don't charge it with your own chargers.
Page 14 Hardwire Kit Installation Dedicated Hardwire kit Asin:B09X1L1GMX Step: Stop the engine. Open the fuse box. Use a power detector to detect the constant power and ACC power (emergency power). *note: Use an ACC power supply of 15A to 25A. Use a constant power supply below 30A. Connect the yellow fuse to the constant power source, the red fuse to the ACC power source, and the ground terminal (black wire) to the metal part of the body.
Page 15 1. Yellow cable (BATT/B+) The yellow cable should be connected to the fuse of the constant power supply in the car fuse box. If you are looking for a constant power supply in the fuse box: Use a voltage tester to check the fuse to ensure it still have electricity even if the car engine is off.
Page 16: Home Screen
NOTE: If you can't install it, please CONTACT US, you can send us a photo of your fuse box, and we have professional technicians who can help you wire it. HOME SCREEN WHAT DOES IT MEAN? WHAT DOES IT MEAN? ICONS ICONS Indicates that dash...
Page 17: Power On/Off
ICONS WHAT DOES IT MEAN? ICONS WHAT DOES IT MEAN? Indicates that showing the rear camera WIFI is on and be connected image currently Press “M” button to enter Menu Setting TF Card is inserted Press “UP” button to enter Playback SoundRecord is Opened Mode SoundRecord is Closed...
Page 18 Press and hold the power button to turn off the power during startup,and then brieﬂy press the power button again to turn on the power of the unit and display the opening screen. MicroSD card check function This product will check the MicroSD card at startup and will announce if it is not inserted or damaged,that can prevent missed shots.
Page 19: Menu Settings
Menu Settings After powering ON the camera, press the button to enter the setup process. Storage...
Page 20 The setting displays the video's occupied space and remaining space.Press “OK” button to format SD Card. Language Choose the language you want. Date/Time The dash cam has the built-in GPS function, it will automatically update the time according to your location and time, so you do not need to manually change the time.
Page 21 But you can adjust the daylight saving time by changing the DST Setting(On/Off). Please CONTACT US if you need help. Automatically update the time by GPS Turn the setting on, means that the time will be adjusted according to your location and the time zone detected by GPS.
Page 22 24-Hour Turn on or off the "24-Hour" setting according to your usage habits Time zone If you need a special time zone or need any help, please CONTACT US. Turn on or off the setting to adjust the daylight saving time. WIFI For speciﬁc functions, please refer to "About WIFI and APP".
Page 23 Resolution There are 4 resolutions: * Front: 1080P + Inside: 1080P + Rear:1080P * Front: 2.5K + Inside: 1080P + Rear:1080P * Front: 2.5K + Inside: 1080P * Front: 4K + Inside: 1080P NOTE ： When the rear camera is inserted, that is, 3 channel recording, the highest resolution of the front camera is 2.5K .
Page 24 A: We set the recording interval of each video to 1min/3min/5min.This is for the convenience of ﬁnding the locked video later.The main function of the recorder is to record, especially to record emergency video. If each video is too long and the G-Sensor triggers emergency recording when a collision occurs, the video will be locked and cannot be covered by the loop recording, and customers will be difﬁcult to ﬁnd the video in the subsequent search.
Page 25 Frequency: 50Hz / 60Hz for choosing If the local AC power is 220V-240V, it is recommended to modify the frequency to 50Hz. If the local AC power is 110V, it is recommended to modify the frequency to 60Hz. G-Sensor: Off/Low/Medium/High After turning on the G-Sensor, the dash cam will lock the video when it detects bumps while driving.
Page 26 Parking Monitoring （ Available after installing the hardwire kit ） There are two parking Monitoring mode. Mode 1: Collision boot recording There are two ways to open this mode. （ note : Do not turn on “Time Lapse”. ） Way-1: Turn on “Parking Mode” and set “G-Sensor” among Low, Medium or High. Way-2: Turn on “Parking Mode”...
Page 27 Mode 2: Time lapse recording Turn on “Time Lapse”, set 0.5Sec/1Sec/5Sec and set Time-Lapse Recording Time(12H/24H/72H). After the car engine is off, the camera will turn off automatically, and prompt "Enter time lapse mode!" on the screen. If you turn the G-Sensor among Low, Medium and High, the parking video will be locked when there’s collision or vibration detected.
Page 28 If you turn the G-Sensor among Low, Medium and High, the parking video will be locked when there’s collision or vibration detected. Always on: When choose this setting, i07’s screen will always be on. Auto LCD Off: When choose this setting, i07 will black out after 30s.
Page 29 A: It may be that “Auto LCD Off” is turned on. Please check carefully. If you do not want to use this function, please turn it off manually. Volume Set the volume of i07 dash cam. GPS Information To track the Location, Speed, GPS state, Signal Strength, please check it in this setting.
Page 30 Speed Unit km/h and mph, select the speed unit you want. Rear Mirror If you ﬁnd that the rear camera screen is reversed from left to right after installing the rear camera, please turn on/off “Rear Mirror” to adjust the view.
Page 31 Mirror Image...
Page 32 Rear Flip(180°) If you ﬁnd that the rear camera image is upside down after installing the rear camera, please turn on/off “Rear Flip(180°)” to adjust the view. Rear Image Reset This option is used to restore the factory settings .
Page 33: Play On Camera
About Include Product Model and System Version. Please continue to pay attention to the latest version. Latest version will be posted to: https://wolfbox.com/ﬁrmware/ Play on Camera Press the UP button to enter the playback interface. There are three folders: Normal Video Folder, Locked Video Folder and Parking Video Folder.
Page 34 After entering the video list, you can see the following video list. Front video name ends with F, in-car video name ends with I, rear video name ends with R. You can scroll up or down to select a video to play, also you can delete a video. Press the power button to lock/unlock the video.
Page 35: Play On App
Here you can view, download and share your videos easily with your friends and family. The app “Wolfbox” is a free app that allows you to operate this WLAN built-in drive recorder from your smartphone.
Page 36 Turn on the WIFI setting. The WIFI name and WIFI password will appear on the screen. 3. Connect WIFI Now simply join the i07 WIFI by going into your iPhone or Android phone’s Settings > WiFi > i07 WiFi. Then enter the default password:12345678 to join the network.
Page 37 For iPhone If you get this pop up for your iPhone while using WiFi feature, make sure to tap on "ALLOW" or "OK" Wolfbox Wolfbox Wolfbox...
Page 38 NOTE: Once you connect to i07 WiFi, it will say "No Internet". Which is ﬁne. As long as you keep the WIFI connection,you can still use the APP normally. When connected to WIFI,the dash cam can only operate by phone.
Page 39 Check/Play data with APP You can check and play the video by pressing “ ” on the recording screen to enter the data ﬁle list. On the data ﬁle screen, you can select a ﬁle to play/download/screenshot/delete. After download, you can share it to social media, such as facebook, wechat, line, etc. You can select a local album, play the downloaded data, and view it in conjunction with Google Maps.(Internet connection environment is required)
Page 40 FAQ about WIFI&App What is the WiFi range? The WiFi signal range is about 10ft when there are no obstructions in the middle. Please NOTE that just like your home WiFi network,you can't have WiFi signal outside your home,the same way, WiFi range is 10FT from this small device. Can I change the password? Yes.
Page 41: Play On Pc
APP, thank you very much for your support and understanding. Play on PC If you need to track GPS information, please download the dedicated player, the download link as follows: Wolfbox Player: https://wolfbox.com/gps-player/ Use this player to track the speed and location information.
Page 42: Trouble Shootings
If you encounter problems during use,please CONTACT US. Trouble Shootings Please feel free to contact our customer support at service@wolfbox.com . Most emails are typically replied with 10 hours and all questions are answered within 24 Hours. Why doesn't the rear camera image appear? The rear camera AV-IN port needs to be inserted tightly to be detected.
Page 43 1. Unplug the TF card&Rear view camera&GPS bracket, use the car charger to supply power, please check if i07 dash cam can work normally. 2. If yes,it may be the problem of car charger cable,you can tell us your address to get one new car charger.
Page 44 Why is my car battery drained while using the car charger? Please conﬁrm whether your cigar power port is ACC. (if the cigarette lighter is still charged after the car is turned off, please use the hardwire kit or unplug the car charger after the car is turned off, otherwise it may exhaust your car's power supply.
Page 45: I07 Related Accessories
Related Accessories Accessories Hardwire kit for i07 33/50feet Extension Cord Out-Car Rear camera WDR rear camera Asin B09X1L1GMX B082RZNJFY/B0814ZHHST B09H5KBK9X B09KRM9QQ5 i07 has the above related accessories, please contact us if you need it. You can choose one to get free!
Page 46: Product Specifications
Product Speciﬁcations Front Camera F1.55; In-Car Camera Model Aperture F1.8;Rear Camera F2.0 Front Camera 30fps; In-Car Camera Display 3 inches IPS Frame rate 30fps;Rear Camera 25fps Class 10 or above, TF Card 512GB Max, Class 10 Above TF Card max support 512GB Waterproof level IP67 Working voltage...
Page 47 ONE YEAR LIMITED WARRANTY We are committed to giving customers the best product experience and after-sale service. We would like to provide One full year of limited warranty for your product from the date of purchase to be free from defects in materials and craftsmanship. Please CONTACT US with your online order, and we will provide free replacement and lifetime technical support.Besides, you can also get free accessories from...
Page 48 Check us out here! We have professional customer service! E-mail: service@wolfbox.com Phone: +1 888 296 8399...
