Wolfbox G930 Manual

Product Overview

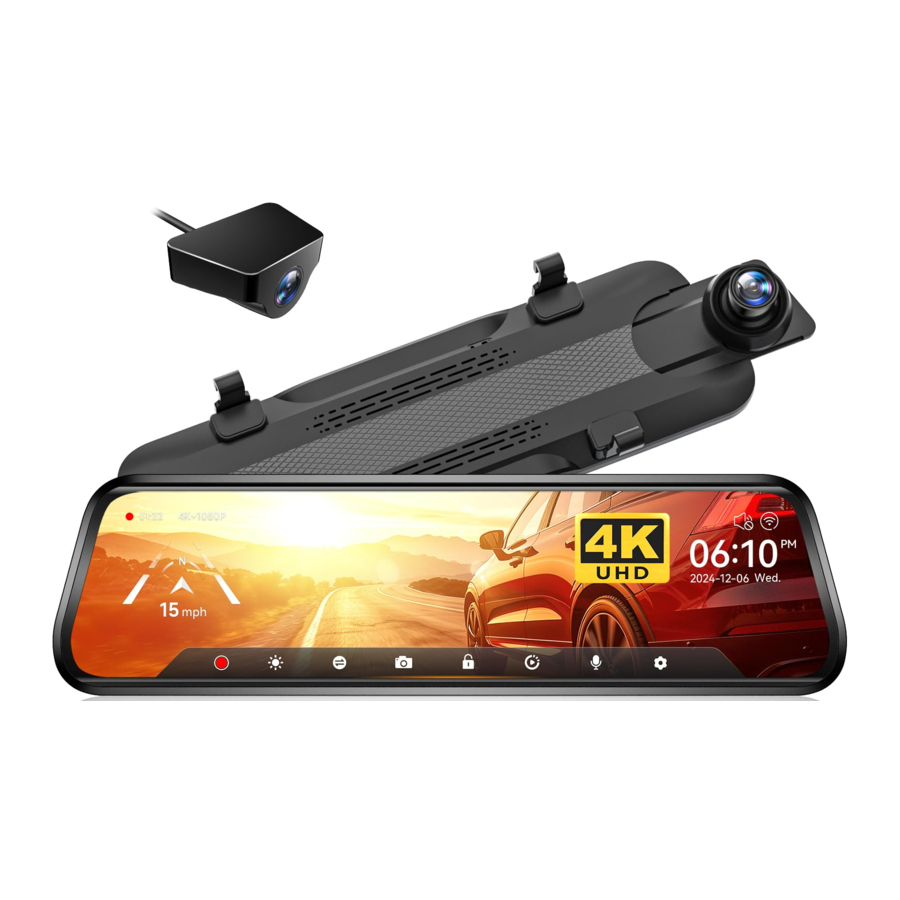

• Thank you for choosing WOLFBOX G930 Mirror Dash Cam. This product provides a high-quality image and captures irrefutable evidence in the event of an accident, and records the beauty along the way for you.

Product Specifications

Package Contents

Appearance

User Interface Overview

icon	Description
	Speed & Driving Direction: Once GPS is connected, the proper information will be displayed
	Date & Time
	Turn on/off the device sound
	Turn on/off Wi-Fi
	Start / Stop Recording
	Adjust the screen brighten
	Switching between front, rear and split-screen camera view
	Snapshot: Take a Snapshot
	Recording Status: Flashing yellow indicates Lock-Recording
	File Playback: Playback the video & photo
	Turn on/off audio recording
	Settings: Tap to enter the settings menu

• Playback Mode
  When you power on the dash cam, it will start recording automatically. Click/select to enter playback mode.


	Stores images captured by the front camera		Stores images captured by the rear camera
	Normal Video: Select it to view recorded videos		Locked Video: Select it to check locked videos
	Photos: Select it to check photos		Select
	Delete		Lock the video
	View videos on full screen

Feature Overview

Click the setting icon to enter the function menu, where you can adjust various functions and parameters of the entire machine.

Note:
Parking Mode requires a hardware kit (purchased separately) in order to activate.
With the hardware kit connected and Parking Mode enabled, the dash cam will enter Lapse Recording mode when the car turns off. This mode captures video at 1 frame per second until the set duration ends or the car battery voltage drops below 12V.

Play on APP

About Wi-Fi and APP
The Wi-Fi feature has been designed so you can pair your dash camera wirelessly with your smartphone and access your recordings instantly from the dash cam. Here you can view, download and share your videos easily with your friends and family.
The app "WOLFBOX" is a free app that allows you to operate this WLAN built-in drive recorder from your smartphone.

How to connect Wi-Fi

1. Download the "WOLFBOX " app
   Go to the following address to download the "WOLFBOX" app: https://wolfbox.com/app/
   You may also use your smartphone to scan the QR code to go to the download page.

2. Enable Wi-Fi
   Go to Settings to turn on Wi-Fi. Go to Settings to turn on the Wi-Fi. Then, the device screen will display the Wi-Fi name and password.
3. Connect Wi-Fi
   To connect your iPhone or Android phone to the G930's Wi-Fi network, go to Settings > Wi-Fi and select G930 Wi-Fi. Then, enter the default password: 12345678.
4. Open the "WOLFBOX" app
   Once your mobile phone is connected to the G930's Wi-Fi network, open the WOLFBOX app. The camera will sync automatically, and you should see the live video feed on your phone.

Edit and share Your Videos in the App

In the app, you can view and edit downloaded local albums and share them with others.

How to Play Video on Computer

We recommend the application "GPS Media Player" to watch and play dash cam videos, and view Google Maps.
You can download it for free on Mac or Windows from the following link: https://wolfbox.com/gps-player/

1. Video play window (Front)
2. Video play window (Rear)
3. Map and track display
4. Play control panel
5. Speed and driving state indication
6. Play list

Note:
If you record the front and rear dash cam videos simultaneously and add them to the playlist, you can play them side by side in split-screen mode.
To play a video file, drag and drop it onto the video player.

Installation

Before installing your dash cam, please test its functionality with all accessories and change the default settings to your preference.

SD card installation

Ensure that the dash cam is powered off when inserting or ejecting the SD card.

Unit installation

1. Place the head unit (WOLFBOX Mirror) on the rear-view mirror by hand, and be sure to separate the silicone brackets on both sides of the rearview mirror. Buckle the device to the rearview mirror with the rubber straps. Adjust the front lens to a desired angle.

2. Connect the car charger to the charger adapter to supply power for the dash cam.


Power ON/OFF

• Short press the power button to turn on, long press the power button to turn off.
• When using the car charger, if the cigarette lighter port is ACC, the dash cam will automatically turn on when the car is started.

Rear camera installation

Rear Camera Wiring Instructions

1. Dash camera
2. Connected to reversing light
3. Outside the car bracket
4. Inside the car bracket

Note:
The rear camera has two wire routing options, both of which conceal the wire along the edges of the door.

1. Connect the rear camera cable to the mirror
   Plug the rear camera cable into the AV interface of the unit.

2. Rear camera cable routing
   Route the rear camera cable to the rear of the car, leaving some slack. Insert the cable into the gap in the front windshield and along the upper end of the door using the included tool.
   If you choose to install the rear camera inside your car, fix it on the rear windshield after routing the wiring.

3. Remove the panel
   Open the trunk and remove the interior panel that covers the other side of the license plate mount area. Use a trim removal tool or other thin device to pry the panel open.

4. Fix the rear camera and connect the cables
   Fix the rear camera near the license plate light with 3M glue, and connect the rear camera cable through the license plate light hole to the rear camera cable.

5. Connect the red wire to the reverse light's positive terminal
   Find the positive terminal of the reverse light. This is the terminal that has voltage when the car is in reverse gear. To find it, step on the brakes, put the car in reverse gear and measure the voltage at each terminal. The terminal with voltage is the positive terminal. Strip the positive cable and wrap it with the red cable from the camera. Insulate the connection with electrical tape. Test the connection by putting the car in reverse gear and seeing if the dash cam enters reverse mode.


GPS Installation

Position 1:
Install the dash cam in the right corner of the central console and hide the wiring along the edge of the front windshield using double-sided tape.

• Considering the use effect and installation convenience, we usually recommend customers install it atposition1.
• You may also test different locations for the dash cam to find the one that works best for you. Just make sure that the black side is facing up to receive the GPS signal.
• Once the GPS is installed, the GPS icon on the home screen will appear. After the GPS signal has been received, the device's GPS will show direction and speed.

Trouble Shooting

• Can the Wi-Fi feature be obtained by upgrading the firmware?
  The G930 Wi-Fi is a hardware upgrade from a previous version, and its Wi-Fi feature cannot be available through a firmware upgrade.

• Can rear camera images be transmitted wirelessly?

The G930 Wi-Fi comes with a rear camera cable through which the rear camera video is transmitted. The Wi-Fi feature is only used to connect the phone to the dash cam.

• Is it possible to monitor the vehicle remotely via Wi-Fi on the G930?
  Considering the limited Wi-Fi range, it is not possible to monitor the vehicle remotely via the App connecting to G930.

• Rear camera image blurred or not detected

For "Blurred rear image" issue, please make sure that the protective film on the lens is removed and wipe the lens with a cleaner. If the focusing issues are caused by high temperatures, please contact us for support.
If you are getting a "Rear camera not detected" error, check the AV input on the top of the mirror and the rear camera cable for damage, especially at the connector.

• How to connect the unit to App via Wi-Fi

1. Please make sure that Wi-Fi is turned on manually in settings.
2. Search for "WOLFBOX" in the app store to download the latest version of the app.
3. Check the Wi-Fi list on your smartphone to see if the network named "WOLFBOX" can be found.
4. If the app displays "Connection Failed", please find "Get Support" in the app to contact us.

Precautions

1. For further inquiries, please contact our customer service via email at service@wolfbox.com.
2. Please use original accessories to avoid compatibility issues and insufficient current supply from non-compatible accessories. For example, 2-in-1 or 3-in-1 cigar sockets will not provide enough current to the device.
3. Please do not tamper or splice the rear camera wire for the purpose of extension, as the rear image/feed to the display may be lost. The length of the included cable for the rear camera is 20 feet, and is suitable for most types of cars.
4. If you wish to use a micro SD card with a capacity > 32GB, Please change the micro SD card [Class10 (10MB/s) required] format to FAT 32 on PC.

Warnings

•
  Keep small accessories out of the reach of children. If this product is damaged or malfunctions, stop using it immediately and contact WOLFBOX support. Continued use may cause fire, electric shock or vehicle failure.
• This product is intended to be used as reference material in the event of an accident. We do not guarantee its effectiveness or admission as complete evidence.
• Please note that this product may infringe on privacy and other rights depending on how it is used. We are not responsible for any cases where this product infringes on privacy or other rights.
• This product is for DC12V/24V vehicles only.
• The specifications and appearance of this product are subject to change without notice for improvement.
