Model:G840H
Notice : To avoid product loss caused by improper operation, please read the
safety information of all operation instructions in this manual before using this
product.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the G840H and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Wolfbox G840H

Summary of Contents for Wolfbox G840H

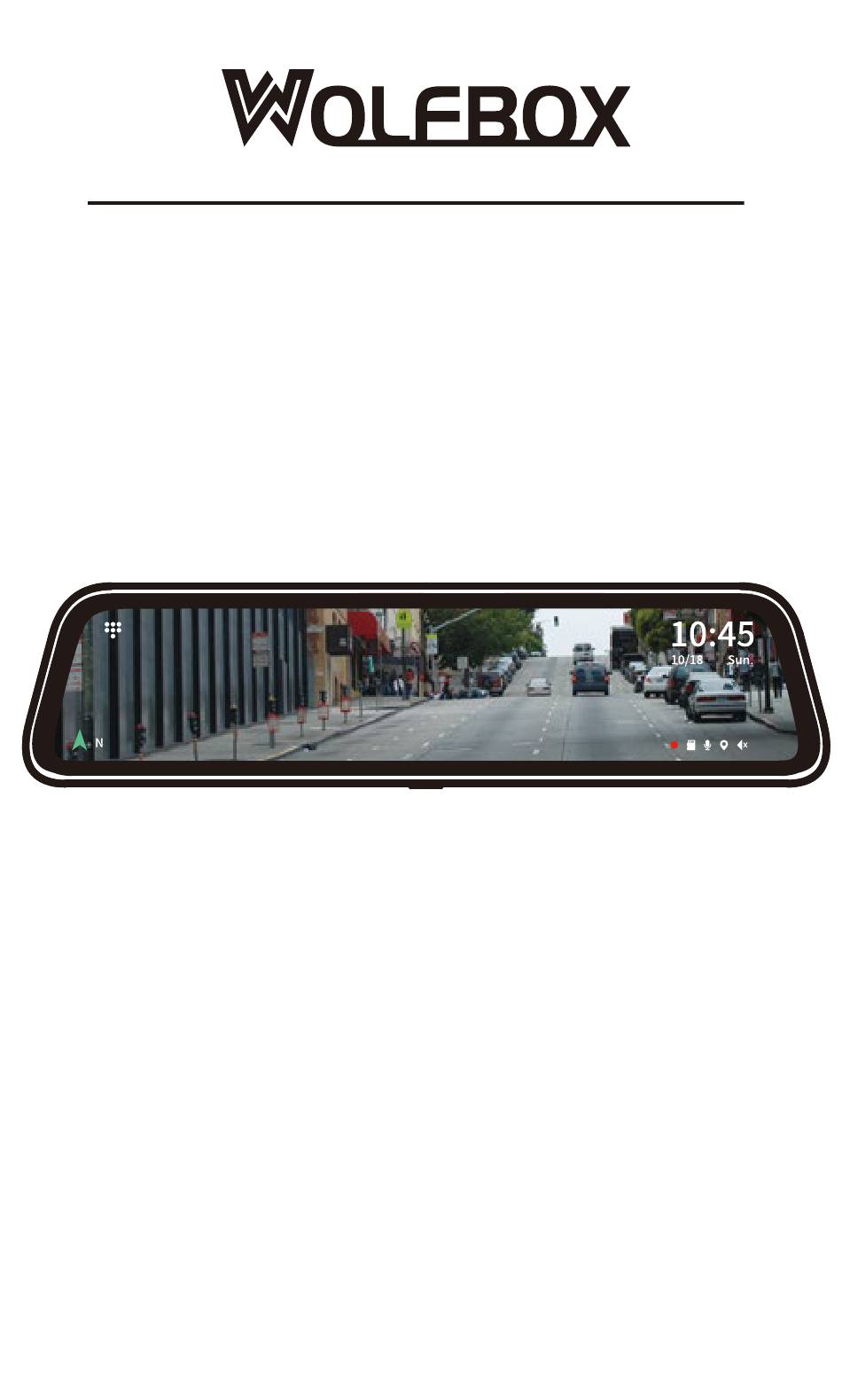

  • Page 1 Model:G840H Notice : To avoid product loss caused by improper operation, please read the safety information of all operation instructions in this manual before using this product.

  • Page 3: Table Of Contents

    CONTENTS 1. Port description 2. SD card selection and installation 3. Screen icon description 4. Screen shortcut key adjustment 5. Function set 6.Parameters details 7. Installation instructions 8. Abnormal handling 9. Warranty&Support...

  • Page 4: Port Description

    1.Port description Name Overview lens Front lens, record the front image of the car Rear lens connector Port used to connect the rear lens Used to connect GPS port GPS connector (GPS function requires optional GPS antenna) TF card slot Provide extensible storage(class10 Max 64GB) Power connector Port for charging...

  • Page 5: Sd Card Selection And Installation

    2. SD card selection and installation The data of SD card should be read and written repeatedly during the use of dashcam,the type of SD card is class 10.In order to work more stably and extend the service life of dashcam,we suggest formatting SD card per month on PC and change a new SD card per year.

  • Page 6: Screen Icon Description

    3.Screen icon description Click the icon to enter the DVR interface Display time/date Video icon: Recording, the color is red; Emergency recording ,the color of icon is yellow; out of recording ,The color is white. TF card icon: When the host reads the card, it will be displayed; when the card is not read, it will show Sound icon: Display when recording the sound, when not recording...
  • Page 7 While recording ,sliding the screen left and right to switch front and back camera While recording ,slide the area inside the red frame up or down to adjust the screen brightness While recording ,Double-click the screen to capture the current video...

  • Page 8: Function Set

    5. Function set 5.1 Function interface press the pause button on the screen to pause recording,then press the setting button to enter the menu. > 1440P 1080P 720P 1min 3min 5min Storage space: click to view the storage condition and format SD card Sound recording :on/off optional...
  • Page 9 Parking monitoring mode: turn on the parking monitoring mode after entering, and the monitoring sensitivity and time-lapse video can be adjusted Time and date: after entering, you can set the GPS automatic setting time, 24-hour system, time zone, or you can set the date and time manually (GPS function requires optional GPS antenna) GPS information: click to view GPS information Factory Settings: click to set factory restore Settings...
  • Page 10 Overview Video icon, click the icon to display the video file thumbnail the locked video file Image icon, click the icon to display the image file thumbnail Edit the icon, click the icon to edit the file File date, click to select the date you want to view the file Front camera file Rear camera files...

  • Page 11: Parameters Details

    6. Parameter detail Hi3556V200 ARM Cortex A7 MP2 @900MHz Processor 1Gb DDR3 LiteOS Max support 64G ,at least CLASS10 External memory card Display Size 11.66 inch Display Type 1920*380 Display Resolution Front lens pixels 4MEGA Front lens aperture F2.0 H=107° V=55° D=148° Front lens FPS 25fps Rear lens pixel...

  • Page 12: Installation Instructions

    7. Installation introduction 7.1 Host installation method 7.2 Rear lens installation method...

  • Page 17: Abnormal Handling

    8.Abnormal handling Try restarting the machine if some functions do not work properly or if you have changed the Settings Reminder low battery/set not to save/the ignition shuts down automatically? charge it for 4 hours. Memory card is full? per month. Please insert SD card/SD card not recognized? The memory card is damaged/Card speed low/Memory CARDS are not compatible/no card /Please replace the original high speed TF card.
  • Page 18 Unable to play image/damage document? Image,The device will not be guaranteed to play properly. Black screen/Abnormal screen/flash screen? Crash ? Can not boot?

  • Page 19: Warranty&Support

    · If you have any questions about the product functions or installation, please feel free to contact us through amazon or service. wolfbox@gmail.com. Save's inquiries will be answered within 6-12 hours of the working day. · Your opinion matters ·...
