Wolfbox G890 Manual

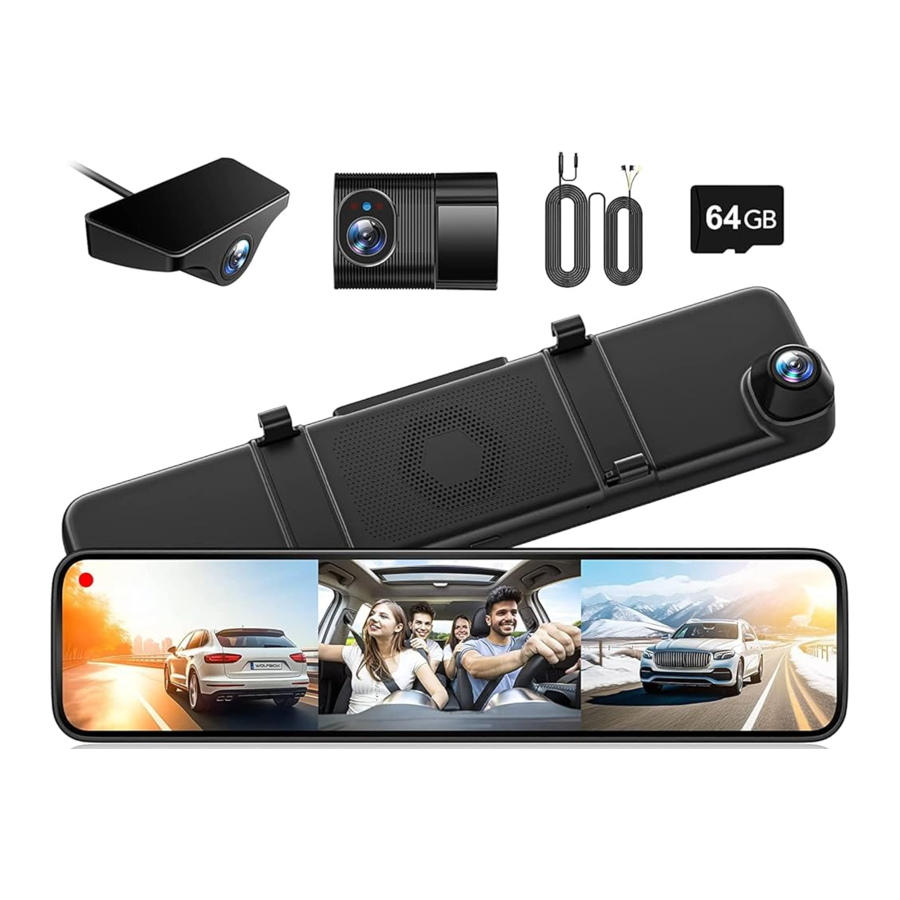

Package Contents

Package contents	WolfBox G890 Mirror dash cam	Docking station	Rear Camera
Car Charger	Rubber Strap x 4	Cleaning Cloth	Internal Camera
Car Wire Trim Tool	Rear Camera Cable	Type-c Power Cable	Hardware Kit
1 Docking station 3M Adhesive * 1 3 Internal Camera 3M Adhesive * 1 2 Rear Camera 3M Adhesive * 1	Cable Clips * 6	3M Adhesive x 2 Internal rear camera bracket * 1 Screws x 4 Outside rear camera bracket * 1	User Manual * 1

Installation

Please MAKE SURE to connect all cameras and wires BEFORE power ON the Mirror Screen, otherwise, the camera cannot work properly.
Please follow the instructions below for the first-time installation of the Stream Media Mirror Dash Camera. It is designed to be fitted to the existing rear-view mirror using the straps.

Insert Micro SD Card
Insert the Micro SD Card into the stream media mirror dash camera, taking care that the gold contacts are facing towards the backside of the stream media mirror dash camera. Push the memory card until it clicks into the slot.

Notice:

• Notice: Use your nail to push the memory card into a slot if required. Take care that the card has clicked into the slot, a second push inwards will release the memory card.
• Do not remove or insert the memory card when the Mirror Dash Cam is turned on. This may damage the memory card.
• Take care when removing the SD card from the Mirror Dash Cam when it is installed in the vehicle. Due to the card slot mechanism, the card will spring from the slot when released.
• Periodically reformat the memory card. Every 2-3 weeks we recommend that you reformat the memory card. Please do this after you've downloaded any files from the SD card that you may want to keep, as formatting the card will remove all content.
• Format your memory card using the Mirror Dash Cam. This will make sure that the card is structured specifically for your camera.
• Press to enter into the setting and choose the Format Card option to follow the on-screen instructions accordingly.

Mount the Mirror Dash Cam

1. Attach the upper end of the straps to the retaining hooks on the top of the rear-view mirror.

2. Extend the straps around the back of the rear-view mirror and attach them to the bottom retaining hooks.


Notice:

• The straps have been designed so they can be cut down to give further size options, as required.
• The straps should be a tight fit when fitted, thus ensuring the Stream Media Mirror Dash Camera is securely fitted to the existing rear-view mirror.

Docking Station Installation (As shown in illustration)

1. Take the docking station out of the box, and tear off 3M adhesive of it. Then please affix it to the front windshield.
2. After installed, please link the host of G890 with docking station.
   Please pay attention to that interface of the dock should be upward.

Camera Installation

• Uncover the 3M tape protective film and lens protective film of the front camera and the internal camera.

• Attach the internal camera to a suitable position on the front windshield.


Rear Camera Installation
Use the provided double-sided tape or screws to fix rear camera. The angle can be adjusted, so be sure to find a perfect viewing angle for your camera before fix it.

Install inside the car

Please choose type 1 bracket to mount the rear camera if you'd like to install it inside your vehicle.

Install outside the vehicle

Please choose type 2 bracket to mount the rear camera if you'd like to install it outside your vehicle.

Rear Camera Installation
Notice:

• Make the connection first and ensure the machine work well before installing.
• Keep away with the driving operation and the active part of the car. Do not get caught by screws or seat gaps.
• When drilling holes in car, please do not break the vibrator, tank and wires.
• Before attaching the double-sided tape, please remove stain or oil with alcohol cleaner from the surface.
• When temperature is low, please warm up the mounting surface with dryer, in order to improve the adhesion before sticking.
• The provided 3M sticker cannot be reused, or the adhesion will not be strong enough.
• Do not disassemble or change any part of this product, this will not be covered by warranty.

Wiring Introduction

NOTICE: The purple line in the picture refers to the reversing light line.

Insert Red, Yellow & Black Cables

1. Yellow cable (BATT/B+)
   The yellow wire should be connected to the constant power supply in the car fuse box.
   Test method: Use a voltage tester to check the fuse slot to make sure it still has power when the car's engine is turned off.

2. Red cable (ACC)
   The red wire should be connected to the ACC power supply in the car fuse box. Test method: Use a voltage tester to check the fuse slot to make sure it has power when the car's engine is on but no power when the engine is off.

3. Black cable (GND)
   Connect this black cable(GND) to the metal part of the vehicle. Most cars have screws or metal parts next to the fuse box. Connect the black cable to the screw or metal part. (As shown on the left).


Universal Compatibility Chart

Attention
Before using this product, please read all precautions and instructions to ensure proper and safe use.

• Please install by professional installation personnel, if personal operation improper, resulting in short circuit of car power, car battery damage, or car interior damage, the company is not liable.
• Loss caused by installation problems rather than quality problems of the product itself, the company is not liable.
• The working performance of the product is affected by the reliability of the automobile power supply, automobile battery and main equipment. The product cannot be used normally due to quality problems other than the product itself, the company is not liable.
• Please use this product to the extent permitted by law.
  If you have any questions about installation, please feel free to contact us.

Wire Layout in the Vehicle

1. Connect the car charger to the cigar socket.
2. After connecting the interior camera and the display screen, plug the interior camera into the docking station. Please ensure that the docking station and the interior camera are installed in the proper position of the front windshield.

3. Connect the interface of the rear cable with the interface of the docking station, and hide the rear camera cable inside the vehicle.


Note: If wiring doesn't meet expectations for installation in the vehicle, cable clips can be used to secure the cables installation as desired.

Settings

	Recording status: During normal recording, it is red, turns yellow while emergency recording		Rear view/Front view switchable: Switch between front view & rear view one moment
	Click on it, the clock setting appears on the screen		Emergency Lock: Lock videos as event files so it won't be overwritten by loop recording
	GPS Status: Once gps antenna connected, the GPS icon on the home screen will show		Sound Record is on
	Menu Setting: Touch and enter to set the screen in your favor (Please pause recording first)		Start/Stop Recording: Record and save every precious moment
	Video/Photo Playback: Playback the video & Photo		Photograph: Take photos one moment

Notice: You need to pause recording before entering into settings.

• Language: Set the language, the default is English.
  Optional languages: English/Français/Español/Deutsch/ltaliano/简体中文 /pyccKиЙ/ 日本語 /Polski.
• Time&Date:
  Automatically sets The Time By GPS: On/Off
  Note: You can set the current time manually if this settings is off.
  Time zone: Select the desired time zone.
  24-Hour: On/Off
  Storage(~GB/~GB): Format SD Card.
  Note: 1The storage information of Free Space, Video, Photo and Cap are all here. 2Front storage means occupied, the latter means the total storage.
• Time Formatting: Off/15Days/30Days (Default Off)
  Format your SD card regularly to avoid running out of space for recording.

• Resoultion: (2 resolution modes)
  Front+Internal+Rear: 1440P+1080P+1080P/1080P+1080P+1080P
  Front+Rear: 2160P+1080P/1440P+1080P/1080P+1080P
• Video frame rate of the front camera: 30FPS/28FPS
• Loop recording: 1minutes/3minutes/5minutes/OFF
• Internal Camera Mirror: On/Off (Default On)
  Note: Turn it on, the recording image of internal camera wiil be shown on the screen.

• Internal Rotate Display(180°): On/Off (Default Off)
  Note: Turn it on, the recording screen of internal camera will be adjusted to 180°.
• Rear Camera Mirror: On/Off (Default On)
  Note:Turn it on, the recording image of rear camera will be shown on the screen.
• Rear Rotate Display (180°): On/Off (Default Off)
  Note: Turn it on, the recording screen of rear camera will be adjusted to 180°
• Audio Recording: System will start audio recording automatically once turned on.

• G-Sensor: Select the sensitivity of the G-Sensor or turn it off. The locked files will not be over written. Please copy important locked files to your computer for storage, and format the SD card every two to three weeks.
  Select the sensitivity of G-Sensor. (Each directions included)
  Forward and Backward: 1/2/3/4/5/Off
  Leftward and Rightward: 1/2/3/4/5/Off
  Upward and Downward: 1/2/3/4/5/Off Note: The highest sensitivity of G-Sensor is 5 level.
• Battery Low Voltage Protection: 12V Car Protection Voltage: 11.8V/12V/12.4V
  Note: Not support for 24V Battery
  Mode Introduction:
  1. When plugged by hardware kit, the unit will automatically adjust to battery.
  2. When the battery of vehicle reaches the certain protection, it will be shut down immediately.
• Low Light Night Vision Parking Mode: On/Off
  Mode introduction:
  In order to ensure the safety of parking at night, this product adopts low-light night vision function, which effectively enhances the night vision effect in parking mode. The lens of front camera will be adjusted and operate automatically when entering the parking lot.
• Parking Mode:
  Collision Detection: On/Off. When turning on, you can set its sensitivity (1/2/3/4/5)
  Low Framerate Mode: Set turn/off. This mode is set to enable further debugging mode options.
  Mode introduction: It wiII record time-Iapse video at 1FPS/3FPS/5FPS/10FPS recording one frame with in 4/8/12/24/Unlimited hours after parking.
  The frame rate of Parking monitoring video: 1/3/5/10FPS
• Motion Detection: On/Off.
  Mode introduction: In the parking monitoring mode, the front camera will automatically capture the movement changes in front, and load the first 5 seconds of motion detection into the motion detection video, and the video will be set to 30 seconds.
  Note:
  1. Turning off the DASH CAM manually will cause this mode to turn off.
  2. This mode will be ceased automatically when the recording is enabled normally.
     The sensitivity of Motion detection: Low/Medium/High
     Parking Recording Duration: 4H/8H/12H/24H/Unlimited

• Frequency: 50HZ/60HZ
• Device Sound: Off/Low/Medium/High (Default Medium)
  Set the sound of the host, including the sound of startup, prompt, button, and video playback.
• Warning Tone: (Default ON)
  Format Reminder Setup: On/Off
  Video Locked Prompt Tone: On/Off
  Abnormal Video Recording Stopped Prompt Tone: On/Off
  Keys Sound: On/off
• Auto LCD OFF: (Set screen saver time)
  • 1 minute/3minutes/5minutes
  • Off (Set to OFF, the screen will keep on)

• LCD Brightness: Low/Medium/High
• Reversing Setting:
  Reverse aid line: On/Off
  Reverse Preview Seetings: You can adjust the reverse line in this settings. (zoom in and out, lengthen and shorten, widen and narrow)
• Time Lapse: 1FPS/3FPS/5FPS/10FPS/Off
  Note: Set the frame rate of the time-lapse recording of the video.
• GPS:On/Off (Default On.)
  Speed Unit: kmh/mph
  GPS Information: Longitude and Latitude
  Speed
  GPS State (You can check these info here)

• Stamp: Date/Time Stamp: On/Off
  Speed Stamp: On/Off
  GPS Location Stamp: On/Off
• Default Settings: Restore the initial settings.
• System Info: Model
  Software
  Website
  MCU Version(You can check these info here )
• Help Center: WolfBox after-sales service QR code

  https://wolfbox.com/contact-us/

Brightness and visual angle Adjustment:

On the LEFT side of the screen: Slide up and down to adjust the angle of view.
On the RIGHT side of the screen: Slide up and down to adjust the brightness.

Anywhere on the screen: Swipe the screen left or right to switch between front view, rear view, or split-screen view.

Data Playback

To select a video or photo for playback, press the button. Press the icons of left arrow and right arrow to switch the list and then select the desired video to start playback.

	Video		Lock Video		Photo		Video Selection
	Left Switch		Right Switch		Home Screen		Return

	Lock/Unlock the file.		Display the previous photo/video.
	Start or pause the playback.		Display the next photo/video.
	Delete the file.		Note: Click the icon once to accelerate the playback speed by 2 times, and click the icon once to reduce the playback speed by 2 times. Increase or decrease the speed up to 8 times.

Play on Computer

Correct Video Player to Play 4K Videos
We recommend GPS Media player which can view google maps. You can get it free. Mac/Win
Version Download:https://wolfbox.com/gps-player/

• If you encounter problems during use, please CONTACT US.


Trouble Shooting

The power does not turn on

Please check that the cigarette power cable is not damaged, and whether the indicator light of the cigar plug is on.

The power is on but this device can not be turned on
When checking that the cigarette plug power supply is right in place, please long press the power button to see whether it is turn on. If it still cannot be turned on, please reset it.

Stop recording as soon as it start recording

• Please check that the mirco SD Card is inserted, and the capacity of the Micro SD card.

Time display is incorrect after setting

Please ensure to choose the correct time zone when GPS antenna is connected.

Support
If you have any questions about the product functions or installation, please feel free to contact us through amazon or contact@wolfbox.com. Your inquiries will be answered within 6-12 hours of the working day.
