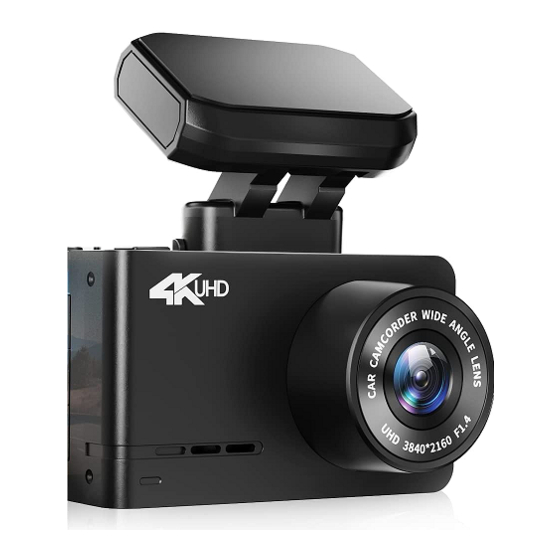

D07S Dash Cam
User Manual
2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the D07S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Wolfbox D07S

Summary of Contents for Wolfbox D07S

  • Page 1 D07S Dash Cam User Manual...
  • Page 3 IC warning: This device contains licence-exempt transmitter(s)/receiver(s)/ that comply with Innovation Science and Economic Development Canada's licence-exempt RSS(s). Operation is subject to the following two conditions: 1. this device may not cause interference and 2. this device must accept any interference, including interference that may cause undesired operation of the device.

  • Page 4: Table Of Contents

    Package Contents Appearance Button Function About the Micro SD Card Installation HOME SCREEN Power ON/OFF About Time settings Video Mode Playback Mode...
  • Page 5 About WIFI Function Play on Computer GPS Player About the Camera Settings Product Specifications...

  • Page 6: Package Contents

    Package Connects Dash Cam Built-in GPS Car Cigar Electrostatic Adsorption User Manual Following items are included in the package, if any items are missing or damaged, contact WOLFBOX immediately.

  • Page 7: Appearance

    Appearance Built-in GPS bracket Type-C Sound collecting port Micro SD card slot Power Press and hold the power button for 3 seconds to turn off the power.In various modes,you can check the displayed items by short press. Menu/Mode Down Power light Reset button (*Reset the and restart the system.) Lens: Please remove the lens protection film...

  • Page 8: Button Function

    Button Function Turn Screen OFF the Camera Enter Main Menu in Recording Mode Switch Front and Rear Camera Screen Enter/Confirm Specific Settings when plug in rear camera Switch Front and Rear Camera Screen Menu/OK Return Power Button when plug in rear camera LONG PRESS for 2-Seconds Turn OFF Play/Pause Current Video while in The Camera...

  • Page 9: About The Micro Sd Card

    " button to confirm to format the SD card. This product will check the Micro SD card at start up and will announce if it is not inserted or damaged, that can prevent missed shots. Please format SD card on D07S dash cam.

  • Page 10: Installation

    How to insert and remove a card To install Make sure the camera is turned OFF First. Then facing towards the front of the camera (Lens Side). Then insert the memory card half way in. Then use the finger nail or a paper clip to push the card all the way inward until it clicks and locks in place.
  • Page 11 How to install the main body 1. Installation Position-Most people will install D07S next to the rear view mirror and opposite side from the drive. First, Stop the engine where there is some light and in a safe place. 2. Make sure to clean your windshield from the dust particles...
  • Page 12 3. Peel off the 3M tape attached to the GPS built-in bracket and attach it on the electrostatic sticker on the windshield. About electrostatic Sticker Since the adhesive strength is strong on both sides and it is difficult to peel off once it is pasted, it will be troublesome if the pasting position is incorrect.

  • Page 13: Home Screen

    HOME SCREEN Home Screen Status Icons WHAT DOES IT MEAN? WHAT DOES IT MEAN? ICONS ICONS Generates in 1 min/3 mins/5 mins per file Show SD card status Indicates that the rear camera is not Display GPS status connected Displays the recording status and recording Display voice recording status time.

  • Page 14: Power On/Off

    WHAT DOES IT MEAN? WHAT DOES IT MEAN? ICONS ICONS Show video recording mode Emergency Video Lock Red led blinking: Recording Video No Stop Recording Video Red led:Not Recording Video Power on Enter the menu Power ON/OFF <Power ON> If you turn on the engine (ACC on) while the cigar power adapter is connected,the power will be turned on automatically and the opening screen will be displayed.
  • Page 15 Micro SD card check function This product will check the MicroSD card at startup and will announce if it is not inserted or damaged,that can prevent missed shots. <Power off> When the engine is turned off the power is automatically turned off. If you press and hold the power button while the power is on, the power of this unit will be turned off.

  • Page 16: About Time Settings

    GMT value selection when it receives the GPS signal lock Automatically. You can set the Daylight Saving Time by adjust the time-zone. 2-CAMERA MODES D07S has 2 different camera modes: 1. Video mode 2. Playback mode Video Mode...

  • Page 17: Playback Mode

    Button function in video mode Button Icon Function Button Icon Function Long press to power on/ off Press once to enter the main menu Press once to switch the view display Long press to turn on/off the WiFi function (If turned on, the password will be displayed.
  • Page 18 Normal files of front camera Locked files of rear camera Normal files of rear camera Photos of front camera Locked files of front camera Photos of rear camera...
  • Page 19 Short press " "button to playback the file. Long press " " button to delete/lock/unlock the selected file. [Delete Current]: Delete the displayed file [Delete All]: Delete all files *Unable to delete locked file.You can manually unlock and then erase. [Lock]: Manually lock the display file [Unlock]: Manually unlock the displayed files...
  • Page 20 Photo and Video Files Screen <Still photo file> <Video File>...

  • Page 21: About Wifi Function

    ", select ”setting“, then select [WIFI] and turn the Wifi function on. 3. Connect WiFi Open the phone WLAN page and connect the D07S WiFi. Then Enter the default password: 12345678. To join the network. 4. Open the Wolfbox app Once your dashcam is successfully connected to WIFI, enter the APP and you will see the page for adding devices.

  • Page 22: Play On Computer

    Play on computer How to output data on computer: The video recorded by this product can be displayed in conjunction with Google Maps by installing the dedicated viewer software on your computer. * An internet connection is required. For Android Phone Please choose to allow when these prompts appear.
  • Page 23 For iPhone If you get this pop up for your iPhone while using WiFi feature, make sure to tap on "ALLOW"or "OK" Check/Play date with APP...
  • Page 24 You can check and play the data by pressing on the recording screen to enter the data file. On the data file screen, press[Edit],select the file you want to download, and press [Download] to download the file and ave it to the [local album] which you can find on the interface of APP, then you can download to the smartphone album.
  • Page 25 Edit and share with the APP You can enter local albums, edit downloaded files and share them in the APP interface.

  • Page 26: Gps Player

    GPS Player installation Correct Video Player to Play 4K Videos We recommend GPS Media player which can view google maps. You can get it free at https://wolfbox.com/gps-player/ 1. TO see the Exact GPS route with the video on google maps 2.

  • Page 27: About The Camera Settings

    About the Camera Settings Short press " " button to enter the setting interface after power on. In this case, the video recording will be stopped and you get the Settings Menu. [G-Sensor]: Off /low /medium/ high G-Sensor is a 3-axis impact gravitational accelerometer which is designed to detect physical and gravitational forces on the camera.
  • Page 28 [Fatigue Driving]: Off/1H/2H/3H/4H A reminder will be made when drive for 1H/2H/3H/4H continuously. [Speed Stamp]: Speed stamp on/off [GPS Stamp]: GPS stamp on/off [Speed Units]: KMH/MPH [GPS Info]: This feature allow you to see your current geographical location in Latitude & Longitude.
  • Page 29 [RearCam Flip]: You can flip the angle of the rear camera by 180°. [Mirror Flip]: You can Mirror image left and right. [APP]: QR code to download the APP [WiFi]: WiFi on / off [Language]: This setting allows you to choose your language setting for camera's firmware. [Time Format]: 12H/24H...
  • Page 30 [Date/Time]: You do not need to manually adjust the time because GPS will automatically update the time based on your location. [Time Zone]: Here you can choose your desired or local time zone setting based on GMT value. [DST]: You can adjust the DAYLIGHT SAVING TIME ON/OFF. [Frequency]: Here you should choose the frequency accordingly to your power supply specification used in your country based on your geographical location.
  • Page 31 [ClickTone]: This feature allows you to turn ON/OFF camera button's beep sound. [Screen Saver]: OFF-This will keep the video ON all the time. 10S/30S/2Min-The screen will turn off, but the recording will remain. [Parking Monitoring]: Requires hardwire kit(sold separately) Does not work without hardwire kit(ASIN: B0BKPBFFS8 or B09X1L1GMX). [Format]: This feature will allow you to format inserted memory card, all the data will be deleted.

  • Page 32: Product Specifications

    [Default Setting]: Here you can restore all the settings to factory default settings. [Version]: Here you can check the current firmware version installed on your camera. We will notify you via Amazon if there is a new software version. Product Specifications Front 3840*2160P D07S Front 2560*1440P Model Resolution 2.45 inch IPS...

  • Page 33: Faq

    Type-C D07S: Q: How to download the app for the mini dash cam/Where couldI get the app for the mini dash cam? A: IOS / Android Devices: search "WOLFBOX" on App Store / Google Play store.
  • Page 34 Q: Why can't my dash cam be turned on? /Why does my dash cam automatically turn on and off after using it for a period of time? A ： Pls confirm whether you're using the original accessories first. If not, pls use the original accessory and check the problem.
  • Page 35 We have tested almost all common smartphones with Android, IOS system on the market. If there still has problems connecting to the app, please feel free to CONTACT US. We will give technical support. Q: Why the app keeps disconnecting. How can I fix this? A: The available distance of the WIFI connection is 9-15ft, and it will be automatically disconnected if out of the range.If still disconnect within this range, you can forget the WIFI in your phone and restart both the mini dash cam and your phone, then re-connect.Problem still...
  • Page 36 Q: After connected to WiFi, phone shows no network. A: Because the main function of D07S's WiFi is to play back video, it does not have the function of surfing the Internet, which means that after the WiFi is connected, it will show that there is no network.
  • Page 37 When there is a "card error" or the loop recording function cannot be used normally, please download the latest firmware from the official website. If you still can't solve the problem, please feel free to contact us. https://wolfbox.com Download Firmware...
  • Page 38 Great Customer Service If you have any problem about the function or installation, please feel free to TELL us. Scan to Get D07S Installation of FAQ and Operation Whats APP Line WOLFBOX APP hardwire kit Videos For more information: WOLFBOX Europe: Service_EU@wolfbox.com...
  • Page 40 Check us out here! We have professional customer service! E-mail: service@wolfbox.com Phone: +1 888 296 8399...
