Mirror Dash Cam G890
User Manual
V03
2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the G890 and is the answer not in the manual?

Questions and answers

Related Manuals for Wolfbox G890

Summary of Contents for Wolfbox G890

  • Page 1 Mirror Dash Cam G890 User Manual...
  • Page 2 IC warning: This device contains licence-exempt transmitter(s)/receiver(s)/ that comply with Innovation Science and Economic Development Canada's licence-exempt RSS(s). Operation is subject to the following two conditions: 1. This device not cause interference. 2. This device must accept any interference, including interference that may cause undesired operation of the device.

  • Page 3: Table Of Contents

    Precautions Specification Package Contents Installation Wiring Introduction Product Overview Settings Data Playback Play on Computer Trouble Shooting Customer Support...

  • Page 4: Precautions

    Precautions Please read this manual carefully before operation and keep it for future reference. It will be helpful should you encounter any operational problem. Improper installation will void the manufacturer's warranty. The installation instructions do not apply to all types of vehicles and are written as guidelines to assist in installing the system.
  • Page 5 Only clean the device with a soft dry cloth, for tough dirt, apply some neutral detergent diluted in 5 to 6 parts water to a soft cloth. Note that alcohol, thinner, benzene, etc could cause damage to the paint or coatings. Avoid making contact with the Lens as damage may be caused.

  • Page 6: Specification

    12" Stream Media Mirror Dash Item Name Photo Format JPEG Cam with 3 Channels Model Memory Card Micro SD card 32G-512G U1 WOLFBOX G890 Screen Size Storage Temperature -22°F~176°F 12" IPS Touch Screen Display Resolution Operating Temperature -4°F ~158°F 1480 x 320 Product Weight Front Camera: 2560×1440...

  • Page 7: Package Contents

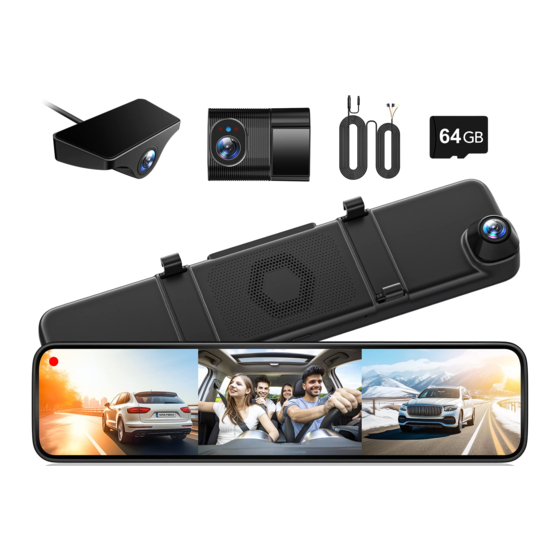

    Package Contents WolfBox G890 Package contents Mirror dash cam Docking station Rear Camera Car Charger Cleaning Cloth Internal Camera Rubber Strap x 4...
  • Page 8 Type-c Power Cable Car Wire Trim Tool Rear Camera Cable Hardware Kit 3M Adhesive x 2 Internal rear camera bracket * 1 1 Docking station 3M Adhesive * 1 User Manual * 1 Cable Clips * 6 Screws x 4 3 Internal Camera 3M Adhesive * 1 Outside rear camera bracket * 1 2 Rear Camera 3M Adhesive * 1...

  • Page 9: Installation

    Installation Warning Please MAKE SURE to connect all cameras and wires BEFORE power ON the Mirror Screen, otherwise, the camera cannot work properly. Please follow the instructions below for the first-time installation of the Stream Media Mirror Dash Camera. It is designed to be fitted to the existing rear-view mirror using the straps. Insert Micro SD Card Insert the Micro SD Card into the stream media mirror dash camera, taking care that the gold contacts are facing towards the backside of the stream media mirror dash camera.
  • Page 10 Insert Micro SD Card Notice: Notice:Use your nail to push the memory card into a slot if required. Take care that the card has clicked into the slot, a second push inwards will release the memory card. Do not remove or insert the memory card when the Mirror Dash Cam is turned on. This may damage the memory card.
  • Page 11 Mount the Mirror Dash Cam Step 1: Attach the upper end of the straps to the retaining hooks on the top of the rear-view mirror. Step 2: Extend the straps around the back of the rear-view mirror and attach them to the bottom retaining hooks.
  • Page 12 1: Take the docking station out of the box, and tear off 3M adhesive of it. Then please affix it to the front windshield. step 2: After installed, please link the host of G890 with docking station. Please pay attention to that interface of the dock should be upward.
  • Page 13 Camera Installation Uncover the 3M tape protective film and lens protective film of the front camera and the internal camera.
  • Page 14 Attach the internal camera to a suitable position on the front windshield. Rear Camera Installation Use the provided double-sided tape or screws to fix rear camera. The angle can be adjusted, so be sure to find a perfect viewing angle for your camera before fix it.
  • Page 15 Install inside the car Please choose type 1 bracket to mount the rear camera if you'd like to install it inside your vehicle. Install outside the vehicle Please choose type 2 bracket to mount the rear camera if you'd like to install it outside your vehicle.
  • Page 16 Rear Camera Installation Notice: Make the connection first and ensure the machine work well before installing. Keep away with the driving operation and the active part of the car. Do not get caught by screws or seat gaps. When drilling holes in car, please do not break the vibrator, tank and wires. Before attaching the double-sided tape, please remove stain or oil with alcohol cleaner from the surface.

  • Page 17: Wiring Introduction

    Wiring Introduction Yellow: Constant Power Red: ACC Power Docking Station Black: Attach to the Grounding Connect the red trigger wire to the positive of the reversing lamp 4 pin Interface 8 pin Interface Rear camera cable Internal Camera Rear Camera Type-c Power Cable NOTICE: The purple line in the picture refers to the reversing light line.
  • Page 19 Insert Red, Yellow & Black Cables a. Yellow cable (BATT/B+) The yellow wire should be connected to the constant power supply in the car fuse box. Test method: Use a voltage tester to check the fuse slot to make sure it still has power when the car's engine is turned off.
  • Page 20 Universal Compatibility Chart...
  • Page 21 Attention Before using this product, please read all precautions and instructions to ensure proper and safe use. Please install by professional installation personnel, if personal operation improper, resulting in short circuit of car power, car battery damage, or car interior damage, the company is not liable.
  • Page 22 Wire Layout in the Vehicle Step 1: Connect the car charger to the cigar socket. Step2: After connecting the interior camera and the display screen, plug the interior camera into the docking station. Please ensure that the docking station and the interior camera are installed in the proper position of the front windshield.
  • Page 23 Step3: Connect the interface of the rear cable with the interface of the docking station, and hide the rear camera cable inside the vehicle. Note: If wiring doesn't meet expectations for installation in the vehicle, cable clips can be used to secure the cables installation as desired.

  • Page 24: Product Overview

    Product Overview Screen Front Camera Appearance Description Speaker Power supply port Micro SD card slot Power Button • Short press to switch off/ on the screen, long press to switch off/on the power Power Button Internal Camera Internal Camera Interface Docking Station Power interface Rear camera...

  • Page 25: Settings

    00:21 21:10 03/12 Sun. 000 km/h Rear view/Front view switchable: Switch Recording status: During normal recording, it is red, turns between front view & rear view one moment yellow while emergency recording Emergency Lock: Lock videos as event files Click on it, the clock setting appears on the screen 21:10 so it won't be overwritten by loop recording 03/12 Sun.
  • Page 26 Language 21:10 Time&Date 03/12 Sun. Storage(0.3GB/29.5GB) Timed formatting 15Days 30Days Language: Set the language, the default is English. Optional languages: English/Français/Español/Deutsch/ltaliano/ 简体中文 /pyccKиЙ/ 日本語 / Polski. Time&Date: Automatically sets The Time By GPS: On/Off Note: You can set the current time manually if this settings is off. Time zone: Select the desired time zone.
  • Page 27 Storage(~GB/~GB): Format SD Card. Note: 1The storage information of Free Space, Video, Photo and Cap are all here. 2Front storage means occupied, the latter means the total storage. Time Formatting: Off/15Days/30Days (Default Off) Format your SD card regularly to avoid running out of space for recording. Resoultion: (2 resolution modes) Front+Internal+Rear: 1440P+1080P+1080P/1080P+1080P+1080P Front+Rear: 2160P+1080P/1440P+1080P/1080P+1080P...
  • Page 28 Video frame rate of the front camera: 30FPS/28FPS Loop recording: 1minutes/3minutes/5minutes/OFF Internal Camera Mirror: On/Off (Default On) Note: Turn it on, the recording image of internal camera wiil be shown on the screen. Internal Rotate Display(180°): On/Off (Default Off) Note: Turn it on, the recording screen of internal camera will be adjusted to 180°. Rear Camera Mirror: On/Off (Default On)
  • Page 29 Note:Turn it on, the recording image of rear camera will be shown on the screen. Rear Rotate Display (180°): On/Off (Default Off) Note: Turn it on, the recording screen of rear camera will be adjusted to 180° Audio Recording: System will start audio recording automatically once turned on. G-Sensor: Select the sensitivity of the G-Sensor or turn it off.
  • Page 30 Select the sensitivity of G-Sensor. (Each directions included) Forward and Backward:1/2/3/4/5/Off Leftward and Rightward:1/2/3/4/5/Off Upward and Downward:1/2/3/4/5/Off Note: The highest sensitivity of G-Sensor is 5 level. Battery Low Voltage Protection: 12V Car Protection Voltage: 11.8V/12V/12.4V Note: Not support for 24V Battery Mode Introduction: 1.
  • Page 31 Mode introduction: In order to ensure the safety of parking at night, this product adopts low-light night vision function, which effectively enhances the night vision effect in parking mode. The lens of front camera will be adjusted and operate automatically when entering the parking lot. Parking Mode: Collision Detection: On/Off.
  • Page 32 Mode introduction: In the parking monitoring mode, the front camera will automatically capture the movement changes in front, and load the first 5 seconds of motion detection into the motion detection video, and the video will be set to 30 seconds. Note:1 Turning off the DASH CAM manually will cause this mode to turn off.
  • Page 33 Frequency: 50HZ/60HZ Device Sound: Off/Low/Medium/High (Default Medium) Set the sound of the host, including the sound of startup, prompt, button, and video playback. Warning Tone: (Default ON) Format Reminder Setup: On/Off Video Locked Prompt Tone: On/Off Abnormal Video Recording Stopped Prompt Tone: On/Off Keys Sound: On/off Auto LCD OFF: (Set screen saver time) -1 minute/3minutes/5minutes...
  • Page 34 LCD Brightness: Low/Medium/High Reversing Setting: Reverse aid line: On/Off Reverse Preview Seetings: You can adjust the reverse line in this settings. (zoom in and out, lengthen and shorten, widen and narrow) Time Lapse: 1FPS/3FPS/5FPS/10FPS/Off Note: Set the frame rate of the time-lapse recording of the video.
  • Page 35 GPS:On/Off (Default On.) Speed Unit: kmh/mph GPS Information: Longitude and Latitude Speed GPS State (You can check these info here) Stamp 21:10 Default Settings 03/12 Sun. System Info Help Center Stamp: Date/Time Stamp: On/Off Speed Stamp: On/Off GPS Location Stamp: On/Off Default Settings: Restore the initial settings.
  • Page 36 System Info: Model Software Website MCU Version(You can check these info here ) Help Center: WolfBox after-sales service QR code https://wolfbox.com/contact-us/...
  • Page 37 Brightness and visual angle Adjustment: 00:21 21:10 03/12 Sun. 000 km/h On the LEFT side of the screen: Slide up and down to adjust the angle of view. On the RIGHT side of the screen: Slide up and down to adjust the brightness. 00:21 21:10 03/12 Sun.

  • Page 38: Data Playback

    Data Playback To select a video or photo for playback, press the button. Press the icons of left arrow and right arrow to switch the list and then select the desired video to start playback. Video Lock Video Photo Video Selection Left Switch Right Switch Home Screen...
  • Page 39 Lock/Unlock the file. Display the previous photo/video. Start or pause the playback. Display the next photo/video. Note: Click the icon once to Delete the file. accelerate the playback speed by 2 times, and click the icon once to reduce the playback speed by 2 times.

  • Page 40: Play On Computer

    Play on Computer Correct Video Player to Play 4K Videos We recommend GPS Media player which can view google maps. You can get it free. Mac/Win Version Download ： https://wolfbox.com/gps-player/ CAUTION: If you encounter problems during use, please CONTACT US.

  • Page 41: Customer Support

    The power is on but this device can not be turned on When checking that the cigarette plug power supply is right in place, please long press the power button to see whether it is turn on. If it still cannot be turned on, please reset it. Stop recording as soon as it start recording Please check that the mirco SD Card is inserted, and the capacity of the Micro SD card.
  • Page 42 Support If you have any questions about the product functions or installation, please feel free to contact us through amazon or contact@wolfbox.com. Your inquiries will be answered within 6-12 hours of the working day. Your opinion matters We work hard day and night to improve the quality of our products,services and the user experience.
  • Page 43 After-sales Support E-mail: contact@wolfbox.com Customer Phone Service: +1 888 296 8399 Business Day, Mon-Fri 6 AM-12 AM, 1 PM-8 PM EST (GMT-4)
  • Page 44 Check us out here! We have professional customer service! E-mail: service.wolfbox@gmail.com Phone: +1 888 296 8399...
