- Page 1 V1.0 G840H MIRROR DASH CAM User Manual wolfbox.com The information in this manual is subject to change without notice.
- Page 3 IC Warning This device contains licence-exempt transmitter(s)/receiver(s)/ that comply with Innovation Science and Economic Development Canada's licence-exempt RSS(s). Operation is subject to the following two conditions: 1. This device does not cause interference. 2. This device could afford interference, including interference that may cause undesired operation of the device.
-
Page 4: Table Of Contents
Content Precautions ......Warnings ......Product Overview . -
Page 5: Precautions
Precautions 1. For further enquiries, please CONTACT our customer service via email. 2. Please use original accessories to avoid compatibility issues that may arise from non-compatible accessories. For instance using 2 or 3-in-1 cigar sockets will lead to 100% insufficient current supply. 3. -
Page 6: Product Overview
• Please contact us with your online order, and we will provide free replacement and lifetime technical support. • Free extended warranty service: After registering information on wolfbox.com, you can extend the warranty for 6 months for free. URL: https://wolfbox.com/pages/warranty-form... -
Page 7: Product Specifications
Product Specifications DDR3 2GB Display Type Video Format Image Format Front Cam 2.5K(1440P) Rear Cam 1080P Display Size 12 inch Rear Len FPS 25fps External, Power Type-C 3.5mm headphone Interface interfcace WiFi Connect Support Photograph Support Support Power Working -4°F ~158°F by ACC with Temperature Hardware kit... -
Page 8: Package Contents

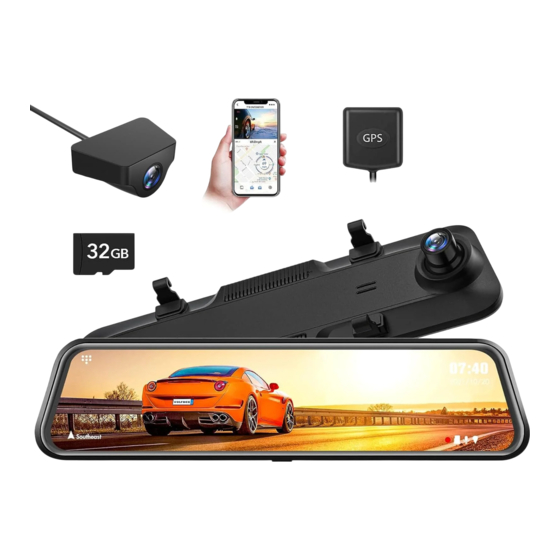

Package Contents • 1440P Mirror Dash Cam • 1080P Rear Camera • GPS • Power Supply Cable • Rear Cam Cable with Car Charger • 3M Adhesive • 32GB TF Card • Rubber Straps*4 • Cable Clips*6 • User Manual... -
Page 9: Appearance
Appearance Name Description Front len, record the front image of the car Power connector Port for charging Rear camera Port used to connect the rear camera connector TF card slot Provide extensible storage (class 10 Max 256GB) Used to connect GPS port GPS connector (GPS function requires optional GPS antennal) Fasteners... -
Page 10: User Interface Overview
User Interface Overview 07:31 03/04 Sat. -- mph icon Description Speed & Driving Direction: Once GPS is connected, the information will show -- mph Date & Time Start / Stop Recording Snapshot: Take a Snapshot Recording Status: Flashing yellow means Lock-Recording Turn on/off Audio Record Adjust the screen brightness Switching between front,rear and split-screen camera view... -
Page 11: Function Overview
• Playback Mode When you power on the dash cam, it will start recording auto- matically. Click/select to enter playback mode. Normal Recording Photo Switch Front or Rear Urgent Album Cameras Function Overview Click the setting icon to enter the function menu, where you can adjust various functions and parameters of the entire machine. - Page 12 Function Option Description Adjust reverse line length, width and angle. Reversing Line The rear camera view is flipped ON/OFF horizontally. Mirror Flip The rear camera view is flipped ON/OFF vertically. Rear Cam Flip The SD card needs to be formatted for the first use.
- Page 13 Function Option Description OFF/High/ Adjust volume. Middle/Low Volume Setting Select screen flicker frequency 50Hz/60Hz according to national regulations. Flicker Display latitude and longitude, GPS signal strength and other information. GPS Information Time setting for year, month, day, Y/M/D/H/m/s hour, minute, and second. Clock Setting 12H Time Style Choice of 12-hour or 24-hour format.
- Page 14 Function Option Description KMH / MPH Select the speed unit you need. Speed Unit Since the speed obtained by GPS 5/3/1/0/-1/-3/-5 will be biased, it can be calibrated Speed through this function. Compensation After setting the speed that needs to be reminded, when the car speed OFF/ Speed exceeds this speed limit, the machine Choice...
- Page 15 WiFi, and the machine can be ON/OFF operated through the App. View, download, edit and share video files WiFi anytime. When G840H Hardwire Kit is OFF/12Hours connected, and you will find: 12H /24Hours /24H parking modes is available. Parking Mode Note: Parking Mode: Off/12H/24H.
-
Page 16: Play On App (About Wifi And App)
Here you can view, download and share your videos easily with your friends and family. The app “Wolfbox” is a free app that allows you to operate this WLAN built-in drive recorder from your smartphone. -
Page 17: How To Play Using A Computer
How to Play Using a Computer We recommend using GPS Media Player as the right video Player to watch/play Videos. It can also view Google Maps. You can Download it for free on Mac or Windows from the following link: https://wolfbox.com/gps-player/... - Page 18 Video play window (Front) Video play window (Rear) Map and track display Play control panel Speed and driving state indication Play list Note: If the video files of front and rear road tracks are recorded synchronously and loaded into the playing list at the same time, they can be played separately in split left and right screens.
-
Page 19: Installation
• The Back view of the host • Unit installation 1. Place the head unit (Wolfbox Mirror) on the rear-view mirror by hand, and be sure to separate the silicone brackets on both sides of the rearview mirror. Buckle the product to the rearview mirror with the rubber straps. - Page 20 2. Connect the car charger to the charger adapter to supply power for the dash cam. Pillar A • Power ON/OFF • Short press the power button to turn on, long press the power button to turn off. • When using the car charger, if the cigarette lighter port is ACC, the dash cam will automatically turn on when the car is started.
- Page 21 • Rear Camera Wiring Instruction (as shown below) Dash camera Connected to reversing light Outside the car bracket Inside the car bracket Note: The rear camera has two wire routing options as shown in the above figure. The first part of both options is characterized with concealing the wire routing against the edges of the door.
- Page 22 2. Rear camera cable routing With some wires set aside, connect the rear camera cable to the rear of the car. Use a tool to insert the cable into the gap in the front windshield, along the upper end of the door, and pass it to the rear of the car.
- Page 23 4. Fix the rear camera and connect the cables Fix the rear camera near the license plate light with 3m glue, and connect the rear camera cable through the license plate light hole to the rear camera cable. 5. Connect the red wire to the reverse light's positive terminal Find the reverse light's positive terminal (when the D gear is engaged, the voltage cannot be measured;...
- Page 24 • GPS Installation Position 1: Install at the right corner of the central console. In the edge of the front windshield, then adopt the hidden wiring, which should be fixed with the double-sided tape. • Considering the use effect and installation convenience, we usually recommend customers install it at position 1.
-
Page 25: Trouble Shooting
• Can rear camera images be transmitted wirelessly? The G840H WIFI comes with a rear camera cable through which the rear camera video are transmitted. And WIFI feature is used to connect the phone to dash cam. •... -
Page 26: Customer Service Center
Customer Service Center If you have any problems with the function or installation, please feel free to reach us. Help Center WhatsApp WOLFBOX For more information: contact@wolfbox.com www.wolfbox.com https://wolfbox.com/contact-us... - Page 28 Check us out here! We have professional customer service! Email: service.wolfbox@gmail.com Phone: +1 888 296 8399 www.wolfbox.com...
