- Page 1 V1.0 G850 Pro MIRROR DASH CAM User Manual wolfbox.com The information in this manual is subject to change without notice.
-
Page 2: Table Of Contents
Content Precautions ......Warnings ......Product Overview . -
Page 3: Precautions
• Keep small accessories out of the reach of children. If this product is damaged or malfunctions, stop using it immediately and contact WOLFBOX support. Continued use may cause fire, electric shock or vehicle failure. • This product is intended to be used as reference material in the event of an accident. -
Page 4: Product Overview
Product Overview • Thank you for choosing WOLFBOX G850 Pro Mirror Dash Cam. This product provides a high-quality image and captures irrefutable evidence in the event of an accident, and records the beauty along the way for you. -
Page 5: Product Specifications
Product Specifications DDR3 2GB Display Type Video Format Image Format Front Camera 4K(2160P) Rear Camera 1080P Rear Display Size 12'' 25 fps Lens FPS External, Power USB Type-C 3.5mm headphone Interface interface PCW ； FCW ； LDW ； ADAS RCW ； LCA SNG ；... -
Page 6: Package Contents

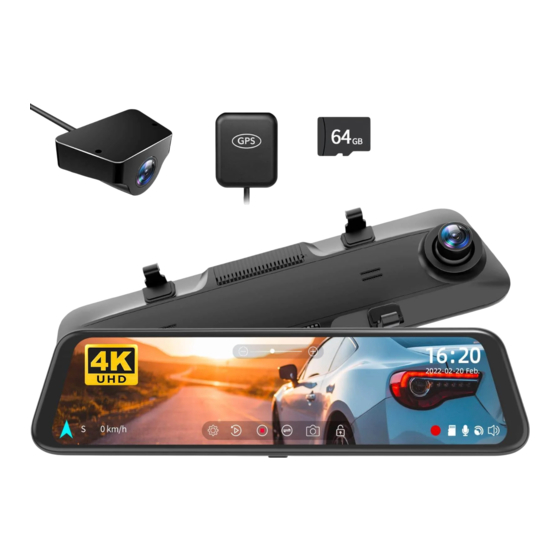

Package Contents •2160P Mirror Dash Cam • 1080P Rear Camera • GPS • Power Supply Cable • Rear Cam Cable with Car Charger • 3M Adhesive • 64GB TF Card • Rubber Straps*4 • Cable Clips*5 • User Manual... -
Page 7: Appearance
Appearance Name Description Lens Front lens, records the front view of the car USB Type-C Port Port for power supply/connection Rear camera Port used to connect the rear camera connector TF card slot Provides expandable storage (class 10 Max 256GB) Used to connect GPS module GPS connector (GPS function requires optional GPS antenna) -
Page 8: User Interface Overview
User Interface Overview icon Description Speed & Driving Direction: Once GPS is connected, the proper information will be displayed Date & Time Turn on/off the device sound Turn on/off Wi-Fi Access specific voice command entries Turn on/off Smart Drive Display Interface. Tap to enter the Smart Drive menu Start / Stop Recording Switching between front,rear and split-screen camera view... - Page 9 icon Description File Playback: Playback the video & photo Turn on/off audio recording Settings: Tap to enter the settings menu • Playback Mode When you power on the dash cam, it will start recording auto- matically. Click/select to enter playback mode. Stores images captured Stores images captured by the front camera...
-
Page 10: Feature Overview
Feature Overview Click the setting icon to enter the function menu, where you can adjust various functions and parameters of the entire machine. Feature Option Description 4K+1080P Video resolution selection. /2.5K+1080P /1080P+1080P Resolution Set the default video recording F-cam/R-cam interface display screen upon /Split Screen startup. - Page 11 Function Option Description Set the status of the device's Wi- ON/OFF Fi connection. Wi-Fi OFF/Low/Medium Set the volume level of the device. /High Volunme Setting ON/OFF Set the switch for key tones. Click Tone OFF/10 Seconds Set the activation time for the /30 Seconds screen saver.
- Page 12 Function Option Description Forward Collision/ Lane Departure/ Manual calibration or specific Smart Drive feature settings. Pedestrian Smart Drive Collision/... Adjust the left-right flip of the ON/OFF rear camera image. Mirror Flip Adjust the up-down flip of the ON/OFF rear camera image. Rear cam Flip Set the switch for the reversing ON/OFF...
- Page 13 Function Option Description Set whether to display GPS ON/OFF information on the recording interface. GPS Display ON/OFF Set the switch for time watermark. Date Stamp Set the switch for speed ON/OFF watermark. Speed Stamp ON/OFF Set the switch for GPS watermark. GPS Stamp KM/H / MPH Set the unit for speed display.
- Page 14 Function Option Description YY-MM-DD /DD-MM-YY Set the time display format. /MM-DD-YY Time Format 12 Hours/24 Hours Set the time display system. Time Style Adjust the time zone based on geographical location. Time Zone Set the switch for daylight saving ON/OFF time.
- Page 15 Function Option Description Set the reminder for formatting /Each 15 days the SD card. Format /Each 25 days Reminder Format the SD card and delete videos and photos stored on it. Format SD Card Restore all settings to factory defaults. Reset Setup Provide QR code for downloading the app.
-
Page 16: Voice Control Feature
Voice Control Feature Fast control through simple voice commands. When the recording interface displays a white icon , it means that the Voice Control feature is activated. You can enable/disable the voice control feature through the "Voice Control" in the menu. lock the video take picture turn on audio... -
Page 17: Smart Drive Feature
Smart Drive Feature Smart Drive is designed to enhance safety and convenience throughout your vehicle's journey. Y ou can customize the settings of each feature according to your requirements in the menu. 1. Calibrate Manually calibrate the Smart Drive features. Please refer to the instructions within the calibration feature for detailed steps. - Page 18 Here is a detailed introduction to the Smart Drive features: • ADAS (Front Camera Smart Drive Features) 1. Lane Departure >60km/h(37mph) Automatically detects lane markings and alerts you when the vehicle deviates from the lane. 2. Forward Collision >30km/h(19mph) Accurately calculates the distance to the vehicle ahead and warns of potential collision risks.
- Page 19 4. Stop & go =0km/h(0mph) Automatically monitors the front vehicle's departure and reminds you to start in a timely manner. 5. Forward Distance 30km/h(19mph)> >1km/h(1mph) Automatically monitors the distance to the vehicle ahead and reminds you to adjust the following distance. •...
- Page 20 2. Rear Collision >30km/h(19mph) Accurately calculates the distance to the vehicle behind and warns of potential collision risks. Note: The dashcam will automatically calibrate the Smart Drive features every time it starts up. Please drive at a speed of 20km/h(10mph) or above for 2-3 minutes on the road to complete the automatic calibration.
-
Page 21: Play On App (About Wi-Fi And App)
Here you can view, download and share your videos easily with your friends and family. The app “WOLFBOX” is a free app that allows you to operate this WLAN built-in drive recorder from your smartphone. • How to connect Wi-Fi? 1. -
Page 22: How To Play Using A Computer
How to Play Using a Computer We recommend the application “GPS Media Player” to watch and play dash cam videos, and view Google Maps. You can download it for free on Mac or Windows from the following link: https://wolfbox.com/gps-player/... - Page 23 Video play window (Front) Video play window (Rear) Map and track display Play control panel Speed and driving state indication Play list Note: If you record the front and rear dash cam videos simultaneously and add them to the playlist, you can play them side by side in split-screen mode.
-
Page 24: Installation
• The Back view of the host •Unit installation 1. Place the head unit (WOLFBOX Mirror) on the rear-view mirror by hand, and be sure to separate the silicone brackets on both sides of the rearview mirror. Buckle the device to the rearview mirror with the rubber straps. - Page 25 2. Connect the car charger to the charger adapter to supply power for the dash cam. Pillar A • Power ON/OFF • Short press the power button to turn on, long press the power button to turn off. • When using the car charger, if the cigarette lighter port is ACC, the dash cam will automatically turn on when the car is started.
- Page 26 Rear Camera Wiring Instructions ・ Dash camera Connected to reversing light Outside the car bracket Inside the car bracket Note: The rear camera has two wire routing options, both of which conceal the wire along the edges of the door. 1.
- Page 27 2. Rear camera cable routing Route the rear camera cable to the rear of the car, leaving some slack. Insert the cable into the gap in the front windshield and along the upper end of the door using the included tool. If you choose to install the rear camera inside your car, fix it on the rear windshield after routing the wiring.
- Page 28 4. Fix the rear camera and connect the cables Fix the rear camera near the license plate light with 3M glue, and connect the rear camera cable through the license plate light hole to the rear camera cable. 5. Connect the red wire to the reverse light's positive terminal Find the positive terminal of the reverse light.
- Page 29 •GPS Installation Position 1: Install the dash cam in the right corner of the central console and hide the wiring along the edge of the front windshield using double-sided tape. • Considering the use effect and installation convenience, we usually recommend customers install it at position 1. •...
-
Page 30: Trouble Shooting
・ Can rear camera images be transmitted wirelessly? The G850 Pro Wi-Fi comes with a rear camera cable through which the rear camera video is transmitted. The Wi-Fi feature is only used to connect the phone to the dash cam. -
Page 31: Customer Service Center
Customer Service Center If you have any problems with the function or installation, please contact us with any questions. Help Center WhatsApp WOLFBOX For more information: service@wolfbox.com www.wolfbox.com https://wolfbox.com/contact-us... - Page 32 Check us out here! Product and service are the foundation of WOLFBOX. Email: service@wolfbox.com Phone: +1 888 296 8399 www.wolfbox.com...
