Summary of Contents for Wolfbox G840H
- Page 1 V2.0 G840H MIRROR DASH CAM User Manual wolfbox.com The information in this manual is subject to change without notice.
-
Page 3: Table Of Contents
Content Precautions ......Warnings ......Product Overview . -
Page 4: Precautions
• Keep small accessories out of the reach of children. If this product is damaged or malfunctions, stop using it immediately and contact WOLFBOX support. Continued use may cause fire, electric shock or, vehicle failure. • This product is intended to be used as reference material in the event of an accident. -
Page 5: Product Overview
Product Overview • Thank you for choosing WOLFBOX G840H Mirror Dash Cam. This product provides a high-quality image and captures irrefutable evidence in the event of an accident, and records the beauty along the way for you. -
Page 6: Product Specifications
Product Specifications DDR3 2GB Display Type Video Format Image Format Front Camera 2.5K(1440P) Rear Camera 1080P Rear Display Size 12'' 25 fps Lens FPS External, Power USB Type-C 3.5mm headphone Interface interface Wi-Fi Supported Photograph Supported Connection Operating Full Touch -4°... -
Page 7: Package Contents

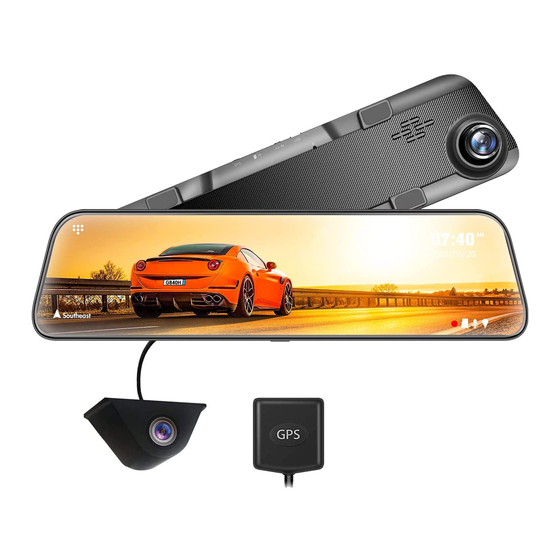

Package Contents •1440P Mirror Dash Cam • 1080P Rear Camera • GPS • Power Supply Cable • Rear Cam Cable with Car Charger • 3M Adhesive • 32GB TF Card • Rubber Straps*4 • Cable Clips*5 • User Manual... -
Page 8: Appearance
Appearance Name Description Lens Front lens, records the front view of the car USB Type-C Port Port for power supply/connection Rear camera Port used to connect the rear camera connector TF card slot Provides expandable storage (class 10 Max 256GB) Used to connect GPS module GPS connector (GPS function requires optional GPS antenna) -
Page 9: User Interface Overview
User Interface Overview 07:31 03/04 Sat. -- mph icon Description Speed & Driving Direction: Once GPS is connected, the proper information will be displayed -- mph Date & Time Start / Stop Recording Snapshot: Take a Snapshot Recording Status: Flashing yellow indicates Lock-Recording (The recorded video will not be overwritten) Turn on/off audio recording Adjust the screen brightness... -
Page 10: Function Overview
• Playback Mode When you power on the dash cam, it will start recording auto- matically. Click/select to enter playback mode. Normal Recording Photo Switch Front or Rear Locked Videos Cameras Function Overview Click the setting icon to enter the function menu, where you can adjust various functions and parameters of the entire machine. - Page 11 Function Option Description Adjust the length, width and angle of the reverse line. Reversing Line The rear camera view is flipped ON/OFF horizontally. Mirror Flip of Rear Image The rear camera view is flipped ON/OFF vertically. Upside Down of Rear Image The SD card needs to be formatted for the first use.
- Page 12 Function Option Description OFF/High/ Adjust the volume. Medium/Low Volume Setting Select screen flicker frequency 50Hz/60Hz according to national regulations. Flicker Displays latitude and longitude, GPS signal strength and other information. GPS Information Time setting for year, month, day, Y/M/D/H/m/s hour, minute, and second. Clock Setting 12H Time Style Choice of 12-hour or 24-hour...
- Page 13 Function Option Description KMH / MPH Select the speed unit you need. Speed Unit Since the speed obtained by GPS 5/3/1/0/-1/-3/-5 will be biased, it can be calibrated Speed through this setting. Compensation Set a speed limit, and the dash OFF/ Speed Choice cam will emit a warning sound if Over Speed...
- Page 14 Function Option Description After-sales service After-sales service website & QR code website & QR code Help Center Connect your mobile phone to Wi-Fi to use the app to view, ON/OFF download, edit, and share video files from your dash cam anytime. Wi-Fi When the Hardwire Kit is OFF/12Hours...
-
Page 15: Play On App (About Wifi And App)
Here you can view, download and share your videos easily with your friends and family. The app “WOLFBOX” is a free app that allows you to operate this WLAN built-in drive recorder from your smartphone. • How to connect Wi-Fi? 1. -
Page 16: How To Play Using A Computer
How to Play Using a Computer We recommend the application “GPS Media Player” to watch and play dash cam videos, and view Google Maps. You can download it for free on Mac or Windows from the following link: https://wolfbox.com/gps-player/... - Page 17 Video play window (Front) Video play window (Rear) Map and track display Play control panel Speed and driving state indication Play list Note: If you record the front and rear dash cam videos simultaneously and add them to the playlist, you can play them side by side in split-screen mode.
-
Page 18: Installation
• The Back view of the host •Unit installation 1. Place the head unit (WOLFBOX Mirror) on the rear-view mirror by hand, and be sure to separate the silicone brackets on both sides of the rearview mirror. Buckle the device to the rearview mirror with the rubber straps. - Page 19 2. Connect the car charger to the charger adapter to supply power for the dash cam. Pillar A • Power ON/OFF • Short press the power button to turn on, long press the power button to turn off. • When using the car charger, if the cigarette lighter port is ACC, the dash cam will automatically turn on when the car is started.
- Page 20 Rear Camera Wiring Instructions ・ Dash camera Connected to reversing light Outside the car bracket Inside the car bracket Note: The rear camera has two wire routing options, both of which conceal the wire along the edges of the door. 1.
- Page 21 2. Rear camera cable routing Route the rear camera cable to the rear of the car, leaving some slack. Insert the cable into the gap in the front windshield and along the upper end of the door using the included tool. If you choose to install the rear camera inside your car, fix it on the rear windshield after routing the wiring.
- Page 22 4. Fix the rear camera and connect the cables Fix the rear camera near the license plate light with 3M glue, and connect the rear camera cable through the license plate light hole to the rear camera cable. 5. Connect the red wire to the reverse light's positive terminal Find the positive terminal of the reverse light.
- Page 23 •GPS Installation Position 1: Install the dash cam in the right corner of the central console and hide the wiring along the edge of the front windshield using double-sided tape. • Considering the use effect and installation convenience, we usually recommend customers install it at position 1. •...
-
Page 24: Trouble Shooting
Trouble Shooting ・ Can the Wi-Fi feature be obtained by upgrading the firmware? The G840H Wi-Fi is a hardware upgrade from a previous version, and its Wi-Fi feature cannot be available through a firmware upgrade. ・ Can rear camera images be transmitted wirelessly? The G840H Wi-Fi comes with a rear camera cable through which the rear camera video is transmitted. - Page 25 4. If the app displays "Connection Failed", please find “Get Support” in the app to contact us.
-
Page 26: Customer Service Center
Customer Service Center If you have any problems with the function or installation, please contact us with any questions. Help Center WhatsApp WOLFBOX For more information: contact@wolfbox.com www.wolfbox.com https://wolfbox.com/contact-us... - Page 28 Check us out here! Product and service are the foundation of WOLFBOX. Email: service.wolfbox@gmail.com Phone: +1 888 296 8399 www.wolfbox.com...
