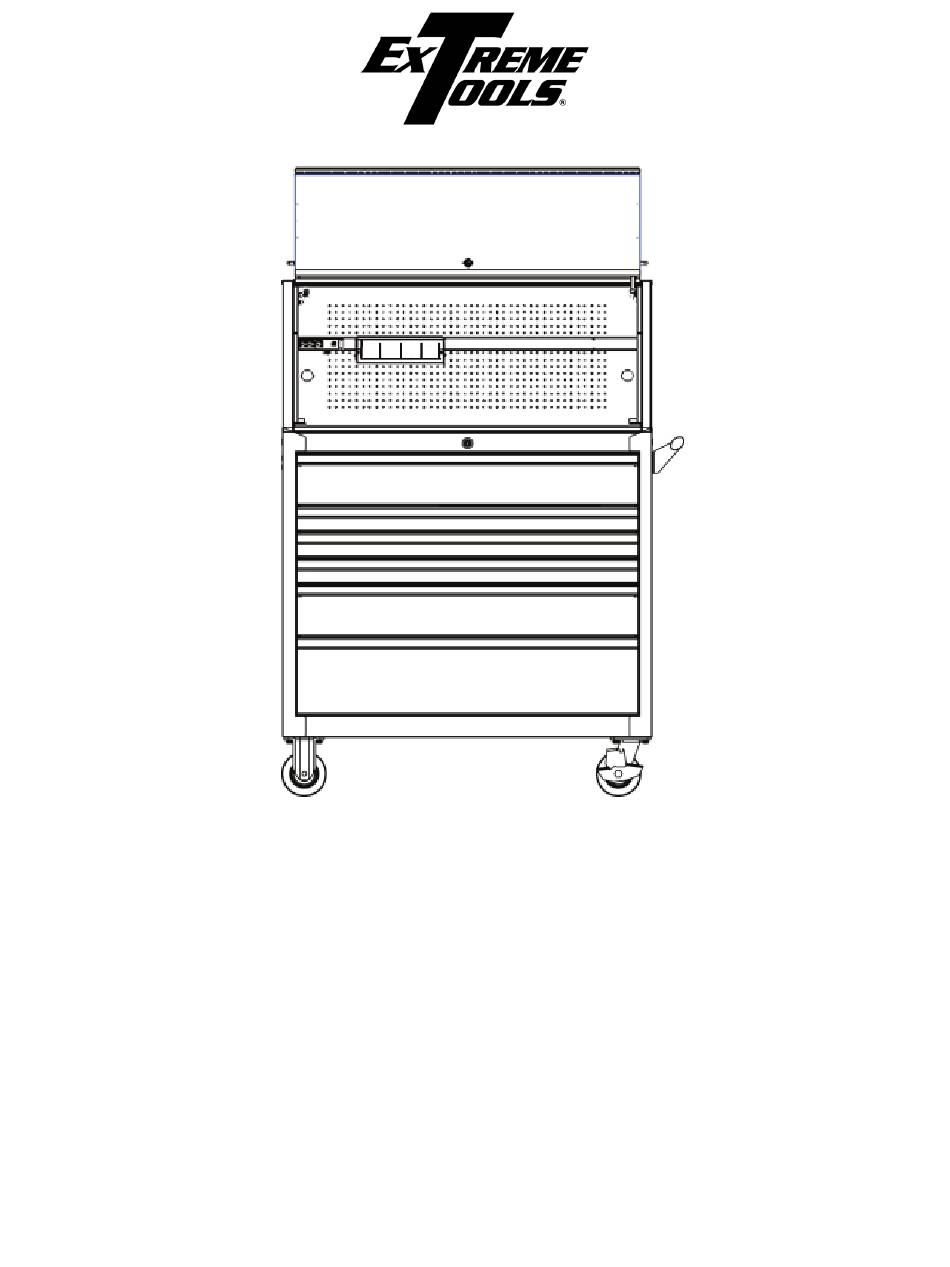

- Page 1 DX Series 41 in. W x 25 in. D Extreme Tools Power Workstation® Powder-Coated Steel Hutch & 6-Drawer Roller Cabinet Combo Model: DX4107HR Extreme Tools, Inc. 740 Frontenac Road Naperville, Illinois 60563 630.369.9303 www.ExtremeTools.net Sales@extremetools.net CustomerService@extremetools.net ©2024...
- Page 2 Parts Diagram for Extreme Power Workstation Hutch (Hutch only part number: DX412501HC) 25 / 25A Replacement keys may be ordered using the code that appears on the face of the lock. To order replacement parts, have the part number, tool box color and quantity ready.
-
Page 3: Parts List
Extreme Power Workstation Hutch (DX412501HC) PARTS LIST ITEM # PART NUMBER DESCRIPTION QTY. Z-4125HC-01 BK RX/DX 4125 Hutch Top-Back panel, BK Z-4125HC-01 BL RX/DX 4125 Hutch Top-Back panel, BL Z-4125HC-01 GN RX/DX 4125 Hutch Top-Back panel, GN Z-4125HC-01 MB RX/DX 4125 Hutch Top-Back panel, MB Z-4125HC-01 OR RX/DX 4125 Hutch Top-Back panel, OR Z-D25HC-02 BK... - Page 4 ACPTRGN Power Tool Holder, Green ACPTHMB Power Tool Holder, Ma�e Black ACPTHOR Power Tool Holder, Orange Z-LGL Extreme Tools Logo Z-BRJHOOKDXHC J hook bracket for moun�ng DX HC side panel to DXRC, ZM8SCHX-16 M8X16 Hex Bolts *NOT SHOWN ON DRAWING...
- Page 5 Roller Cabinet Parts List (Roller Cab Component DX412506RC) Side Handle and Caster Assembly Items Replacement keys may be ordered using the code that appears on the face of the lock. To order replacement parts, have the part number, tool box and drawer pull color and quantity ready. If under warranty, the serial number is REQUIRED to get replacement parts.
- Page 6 DX screws and nuts for drawer pull Z-CAMDX41RC LOCK CAM-EX41RC Z-LGS Name plate for Extreme Tools small size Lock & Keys Part #'s - SEE FACE of LOCK or KEY for Code 1 set Z-LK-EX01 RX series lock and key set, EX01...
-
Page 7: Operating Procedure
ASSEMBLY Roller Cabinet Handle Installation NOTE: Assemble the handle first to make it easier to move the tool cabinet. Position the handle over the holes in the cabinet and attach with the provided (4) M6 hex head screws. Tighten securely. OPERATING PROCEDURE - Roller Cabinet Drawers Drawer Removal... - Page 8 HUTCH ASSEMBLY INSTRUCTIONS STEP 1: Remove End Caps a. IMPORTANT! Engage the brakes on the casters of the roller cabinet! b. Remove plastic end caps from the top of the trim on the roller cabinet. c. Set aside to re-install later. STEP 2: Remove Trim from Side Panels a.
- Page 9 STEP 3: Install Left & Right Side Panel Assembly a. Insert the “J” end of the J-Connector into the rectangular opening at the top of the trim of the roller cabinet where the end cap was removed. The “J” end of the connector should be facing the body of the tool box.
- Page 10 STEP 4: Install Adjustable Shelf a. Determine the desired height for the Adjustable Shelf. Pre-thread (2) screws (#11) about halfway in on left-hand and right-hand sides. b. Locate the (2) cutouts on each side of the shelf. Line up the open slots with the (4) threaded screws that were installed in Step 5d.
- Page 11 STEP 5: Install Back Panel a. Pull MDF board/Stainless Steel Top forward approximately 1/8” from Back Raised Edge (aka: Fence Rail.) b. Lift Back Panel into place behind the two side panels. (BACK PANEL is HEAVY and requires 2 people to place!) Slide the bottom edge of the Back Panel between the MDF/Stainless Steel Top and rear fence rail of roller cabinet.
- Page 12 STEP 6: Secure Shelf to Back Panel a. Locate (2) threaded inserts on the back of the shelf. From the back of the Back Panel, insert (2) screws through the back of the pegboard and and through the threaded inserts of the shelf and tighten.
- Page 13 STEP 7: Attach Gas Struts to Lid a. Lay the lid down on packaging material so that the front of the lid is face down. Use a soft surface or packaging material under the lid so that it does not get scratched or damaged. b.
- Page 14 STEP 8: Secure Lid to Body of Hutch - may require assistance of another adult a. Position the top front panel so that it rests on top of the side and back panels and holes on lid and side panels are aligned as shown below. b.
- Page 15 STEP 9: Secure Gas Strut to Side of Hutch a. Lift top/front panel so that the unattached ball joint on the gas strut is lined up with the rivet nut hole on the side panel. b. Hand-tighen the male stud into the rivet nut opening. Strut must be fully engaged with the ball stud.
- Page 16 STEP 10: Re-Attach Front Panel to Lid a. Lift front panel into place to re-attach to lid. Align the hinges on the top panel with the hinges on the lid and slide into place. Smooth side of lid should face out - panel stiffener should be on the inside.
- Page 17 Step 11: Final Assembly a. Re-attach the Vertical Trim Covers to the front of the Hutch Side Panels. b. Insert the End Caps into the openings at the top of the Vertical Trim Covers. c. Use the supplied hardware to attach the Power Strip on either the right or left side of the face of the adjustable shelf.
-
Page 18: Maintenance
MAINTENANCE Lubricate the casters once a year with high quality ball bearing grease. Wear safety glasses and lubricate the slides twice a year with high quality, petroleum-based lubricant. This may be required more often If operating the tool box in colder climates. Use mild detergent and water to clean drawer fronts, drawer trim and other surfaces.
