PROAIM P-WV-2 Assembly Manual

7' wave-2 jib crane

Hide thumbs Also See for P-WV-2:

7' Wave-2 Jib Crane

(P-WV-2)

A s s e m b l y M a n u a l

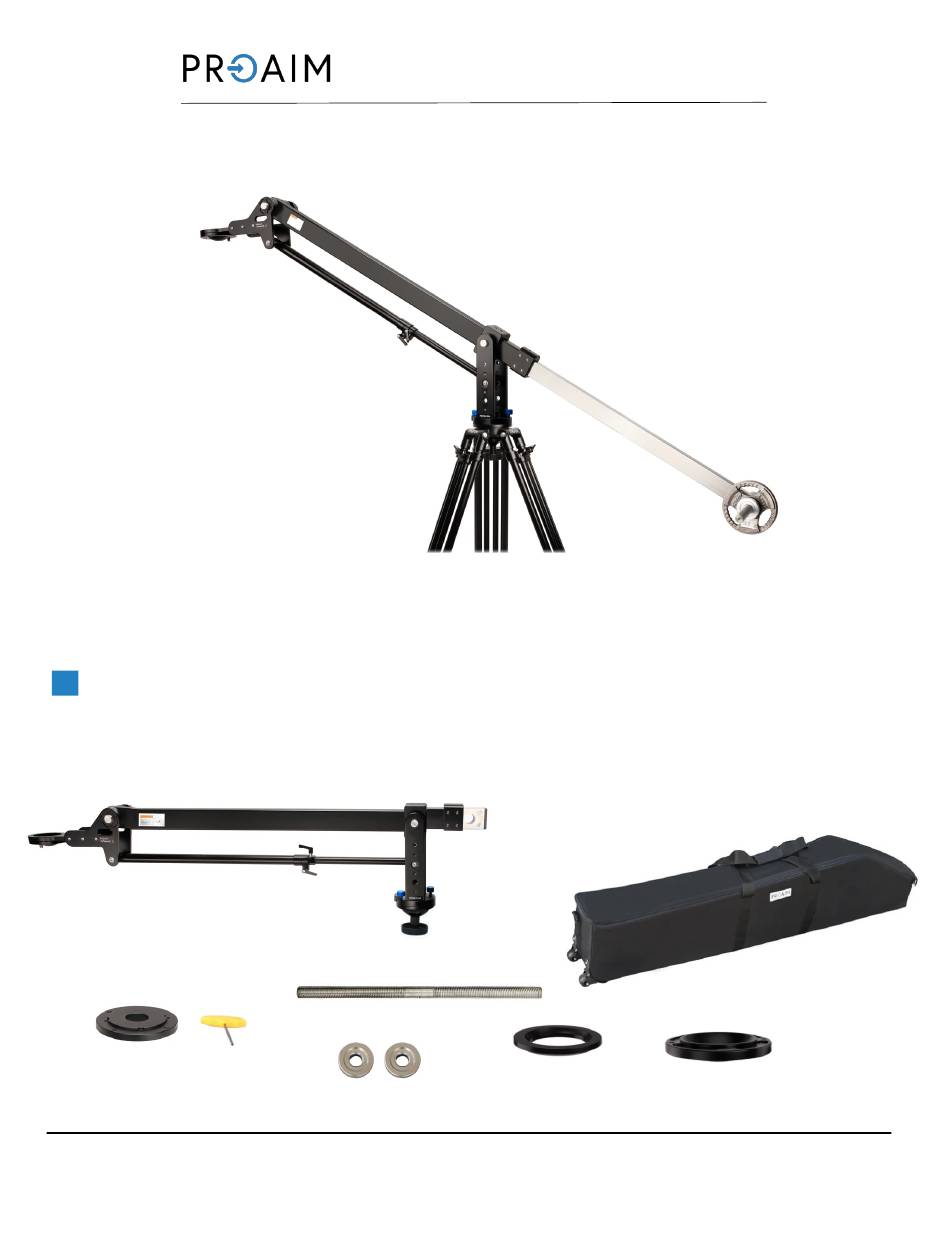

What's In The Box

Please inspect the contents of your shipped package to ensure you have received everything that is listed

below.

Crane Jib

Storage Bag

Weight Bar

Flat Base Plate Allen Key

75mm Conversion

100 mmBowl

Weight Closer

Ring

No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means,

electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright

statutes or in writing by the Publisher.

Table of Contents

Need help?

Do you have a question about the P-WV-2 and is the answer not in the manual?

Page 1 7' Wave-2 Jib Crane (P-WV-2) A s s e m b l y M a n u a l What’s In The Box Please inspect the contents of your shipped package to ensure you have received everything that is listed below.
Page 2 Camera Jib Setup  Insert central fork of Jib arm into bowl of tripod stand, then attach bottom clamp to it for secure connection. NOTE: It is important to make sure that the Central Fork is seated in the bowl properly. That means perpendicular to the tripod bowl.
Page 3 NOTE: Make sure the opposite end of the jib arm is secured so that the addition of the weights does not cause the arm to rise violently. • Attach weight shanks at rear end of jib section by screwing it in and then add weights to it. ...
Page 4 For the underslung camera setup, attach the flat • base plate to the bottom of the jib camera mount and then mount the camera setup. Secure the camera properly. For an over slung setup, attach the flat base plate on the top and mount the camera setup and •...
Page 5 YOUR PROAIM 7’WAVE-2 JIB CRANE ALL DRESSED UP AND READY TO GO! (SHOWN WITH OPTIONAL ACCESSORIES) Warranty: We offer one year warranty for our products from date of purchase. Within this period of time, we will repair it without charge for labor or parts. Warranty doesn’t cover transportation costs nor does it cover a product subjected to misuse or accidental damage.
