IBO 2" STING User Manual

IBO 2" STING User Manual

Deep-well pumps
Hide thumbs Also See for 2" STING:
Table of Contents

Advertisement

Quick Links

Download this manual
User
manual
Deep-well pumps
2" STING, 2,5"STm, 3"STm, 3SDm, 3ti, 3ti economic, 3SKm, 3"SCR, 3"SQIBO, 3ISP, 3,5"SCR,
3,5"SC 3,5"SCM, 3,5"SDM, 3,5"SRH, 4SKm, ,4SD, 4SDm, 4"ISP, 4"ISPm, 6"ISP, 6"SD, OLA,
OLA INOX, OLA AUTO, 1"GSK4–16, 1"GSK 6–16, FP4, AP6, FX8, IBQ
CAUTION! Read the operation instructions before use. For safety
reasons the pump may be operated only by persons who are fully
acquainted with operation instructions.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2" STING and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for IBO 2" STING

Summary of Contents for IBO 2" STING

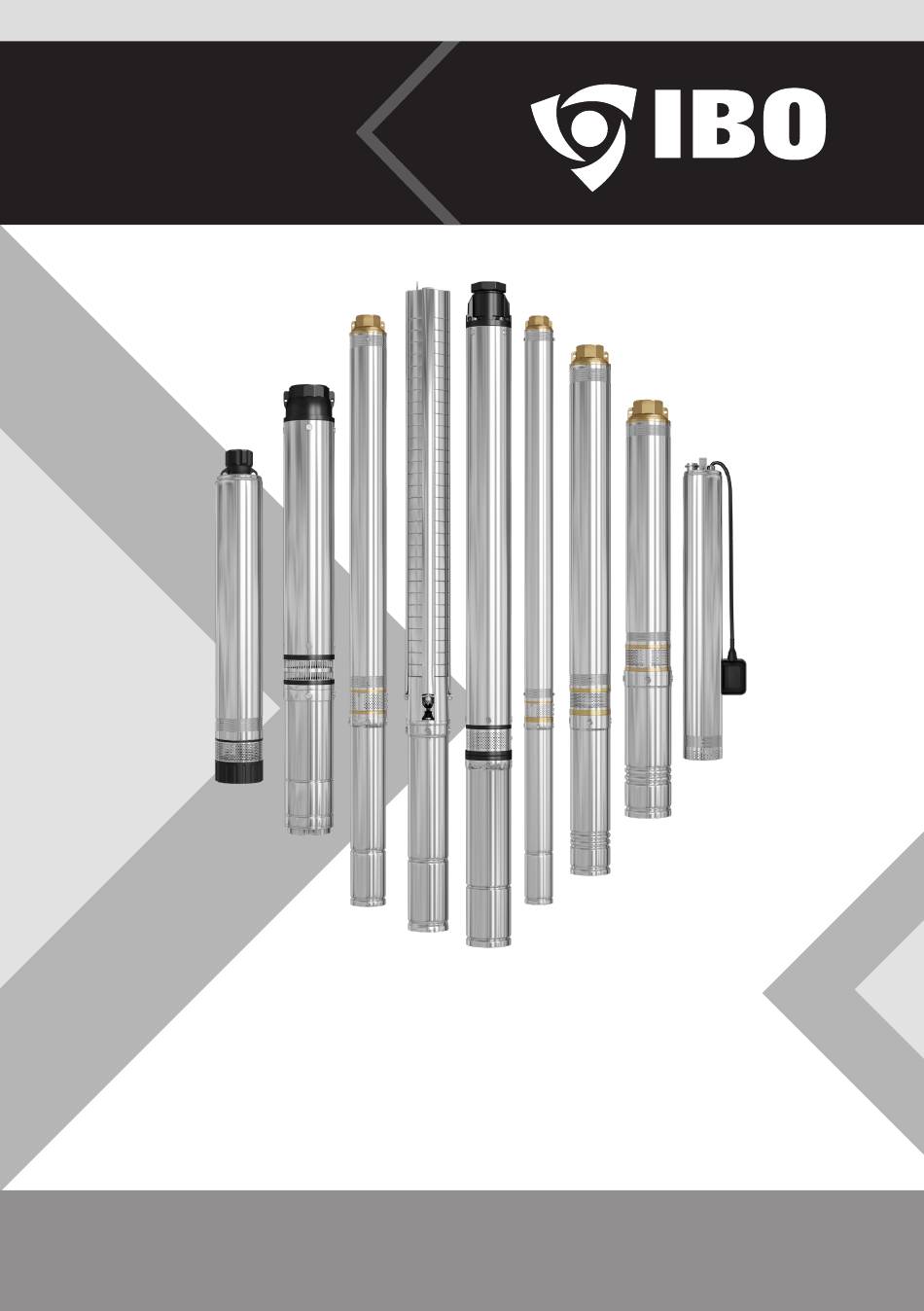

  • Page 1 User manual Deep-well pumps 2” STING, 2,5”STm, 3”STm, 3SDm, 3ti, 3ti economic, 3SKm, 3”SCR, 3”SQIBO, 3ISP, 3,5”SCR, 3,5”SC 3,5”SCM, 3,5”SDM, 3,5”SRH, 4SKm, ,4SD, 4SDm, 4”ISP, 4”ISPm, 6”ISP, 6”SD, OLA, OLA INOX, OLA AUTO, 1”GSK4–16, 1”GSK 6–16, FP4, AP6, FX8, IBQ CAUTION! Read the operation instructions before use.

  • Page 2: Table Of Contents

    Contents List of abbreviations and symbols Application Protective measures Pump installation Electrical connection Troubleshooting Let’s take care of our environment Declaration Of Conformity UE/WE | module A Any use of the device, other than the intended use, is a foreseeable misuse of the device.

  • Page 3: List Of Abbreviations And Symbols

    List of abbreviations and symbols Warning! “Danger” symbol used for notes whose non-observance may result in danger to life or health caused by the electrical installation. The power cord of the pump must be disconnected from the power supply before carrying out the operations marked with this symbol.

  • Page 4: Application

    Application The pumps referred to in this manual are designed to pump clean water from bore- holes or to increase the pressure in water supply systems when the unit is installed in a hermetic casing. The pumps can be used on farms for water supply, irrigation, heat pump installations or water supply of industrial systems.

  • Page 5: Protective Measures

    Protective measures 1. INSTALLATION Before starting any installation work, it is essential to disconnect the power supply. Protection must be provided against accidental power restoration. 3ti, 3t2i, 3Stm 3SDm, 3,5”SRH, 4SD and 4SDm, 4ISP, 4ISPm, 6ISP, 6SD pumps can be supplied in two parts due to their dimensions.
  • Page 6 Installation Pump installation than 8 cm. Failing this requirement will lead to damage to the insulation of the float cable. In such case, repair of the pump will only be possible against payment. The minimum dimensions of the tank to be emptied should allow the float to move freely in the liquid to be pumped without hitting the walls of the tank.
  • Page 7 Pump installation 1. INSTALLATION Table for pumps up to 98 mm diameter: Operating the pump in a well with a larger diameter than that shown in the table can lead to motor overheating and malfunction. In case the well where the pump is to operate has a diameter larger than that indicated in the table, the pump must be installed in a special casing to ensure proper cooling.

  • Page 8: Electrical Connection

    Pump installation The pump motor is filled with environmentally friendly oil. In the event of a motor failure, oil may leak into the well. Before lowering the pump into a new well, make sure that the well drilling company has cleaned it by pumping the water. During the well drilling, the water inside the casing pipe and filter becomes contaminated with silt and sand.
  • Page 9 Electrical connection Operation of the pump is prohibited if the insulation of the power cable or the float switch cable is damaged. If this is the case, contact the guarantee company to have the cable replaced. Mechanical damage is not subject to free of charge warranty re- pairs.
  • Page 10 Electrical connection the pump operating at too low voltage and thus overloading the motor, which can lead to failure. If the pump is originally equipped with a short cable, the cable can be extended de- pending on the user’s needs. Sealed cable connections should be made by a person with appropriate knowledge and experience.

  • Page 11: Troubleshooting

    Troubleshooting 1. INSTALLATION Symptom Possible cause Problem solution Dry-running protection Wait until there is enough water in the well has tripped for the pump to start automatically Check why the overload occurred. Eliminate the cause. Overcurrent protection Wait until the motor cools down and switch on the has tripped pump using the switch built into the safety box Check that the electrical plug of the pump is properly...
  • Page 12 Troubleshooting Symptom Possible cause Problem solution Check that the maximum head for the pump type is not exceeded. The head the pump must produce is in- fluenced by the difference in level between the water Too much resistance to table in the well from which we are pumping, and the flow through the di- level to which we are pumping, the length of the di- scharge pipe (hose)

  • Page 13: Let's Take Care Of Our Environment

    Let’s take care of our environment Every user can contribute to environmental protection. It is neither difficult nor expensive. To do this, hand over the cardboard packaging for recycling, put the plastic bags in the plastic container. Return the used appliance to a suitable disposal facility. Disposal Information The packaging of this product can be recycled.

  • Page 14: Declaration Of Conformity Ue/We | Module A

    Installation Declaration Of Conformity UE/WE | module A 1. Deep well pumps: 2” STING, 2,5”STm, 3”STm, 3SDm, 3ti, 3SKm, 3”SCR, 3”SQIBO, 3,5”SCR, 3,5”SC 3,5”SCM, 3,5”SDM, 3,5”SRH, 4SKm, 4SD, 4SDm, 5”SD, 4”ISP, 4”ISPm, 6”ISP, 6”SD, OLA, OLA INOX, OLA AUTO, FP4, AP6, FX8, IBQ.
  • Page 15 Inhalt Schutzmaßnahmen Anwendung Schutzmaßnahmen Pumpenmontage Elektroanschluss Fehlerbehebung Kümmern wir uns um unsere Umwelt! Konformitätserklärung (Modul A) Jede andere als die bestimmungsgemäße Verwendung des Gerätes stellt eine vorhersehbare Fehlanwendung des Gerätes dar.

  • Page 16: Karta Gwarancyjna

    KARTA GWARANCYJNA Poniższa karta gwarancyjna ważna jest tylko wraz z oryginałem dokumentu zakupu, tzn. fakturą lub paragonem. Ponadto musi być potwierdzona przez sprzedawcę podpisem i pieczątką. Karta gwarancyjna bez załączonego oryginalnego dokumentu zakupu jest nieważna. 1. Gwarantem urządzenia jest DAMBAT Jastrzębski S.K.A., adres serwisu: Adamów 50, 05-825 Grodzisk Mazowiecki, kompleks Panattoni. 2.
  • Page 17 dambat.pl BIURO@DAMBAT.PL BIURO: +48 22 721 11 92...
