Drive Positions

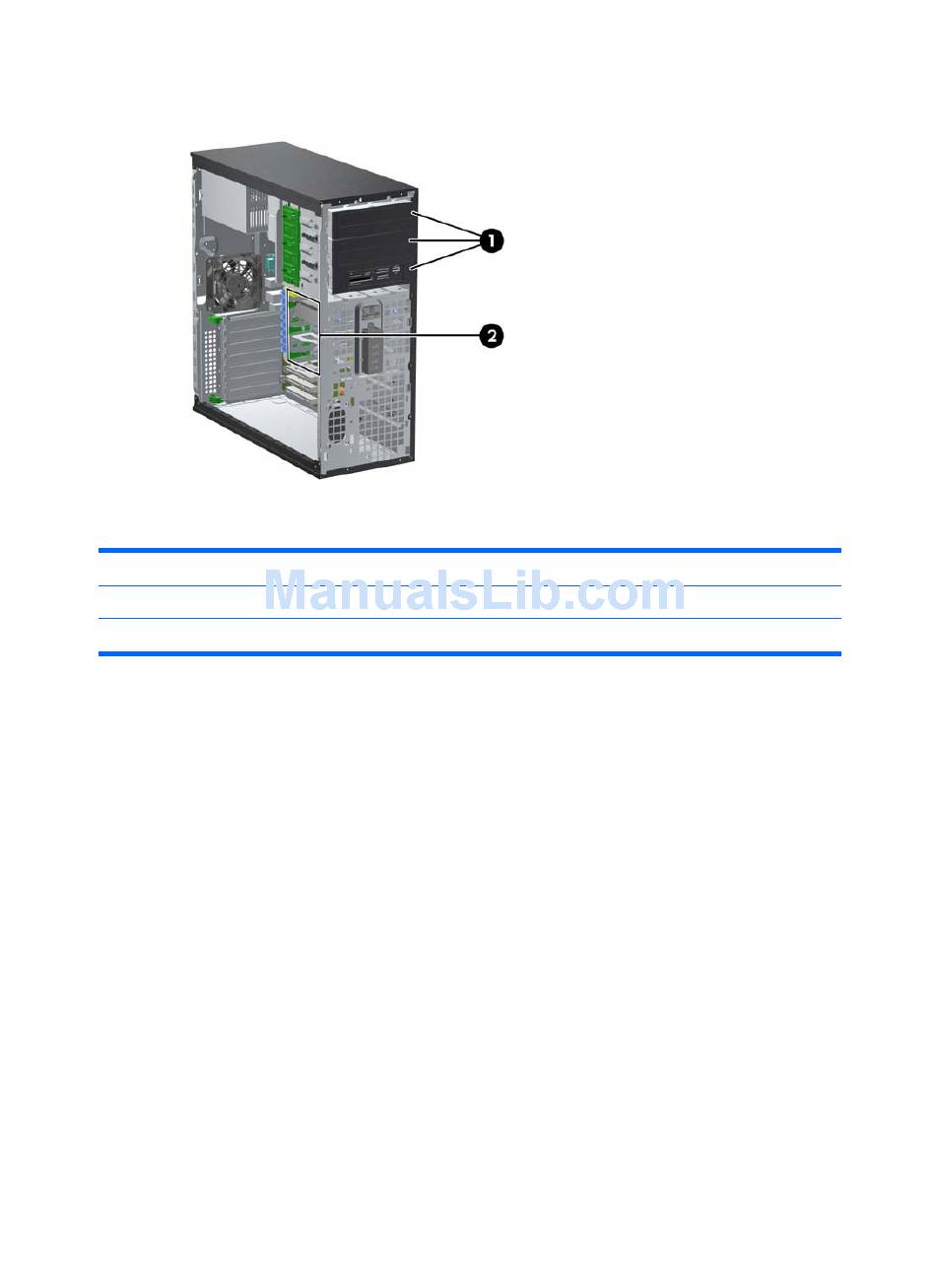

Figure 2-15
Table 2-3 Drive Positions
1 Three 5.25-inch external drive bays for optional drives (optical drives and media card reader shown)
2 Three 3.5-inch internal hard drive bays
NOTE: The drive configuration on your computer may be different than the drive configuration shown above.
The bottom 5.25-inch drive bay has a shorter depth than the upper two bays. The bottom bay supports
a half-height drive or other device that is no more than 14.5 cm (5.7 inches) in depth. Do not try to force
a larger drive, such as an optical drive, into the bottom bay. This could cause damage to the drive and
the system board. The use of unnecessary force when installing any drive into the drive bay may result
in damage to the drive.
To verify the type and size of the storage devices installed in the computer, run Computer Setup.
