Replacing the Front Bezel

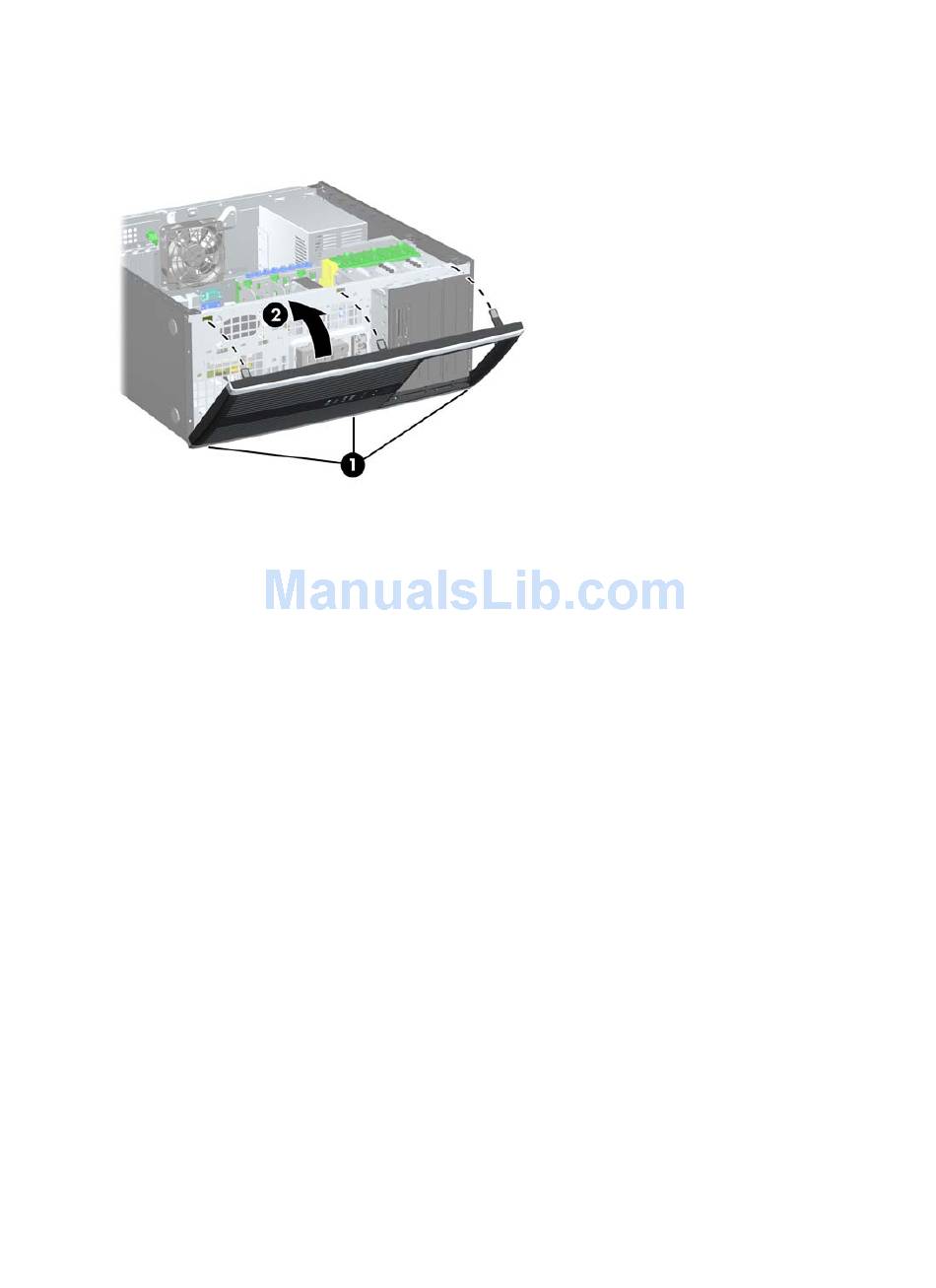

Insert the three hooks on the bottom side of the bezel into the rectangular holes on the chassis (1) then
rotate the top side of the bezel onto the chassis (2) and snap it into place.
Figure 2-6
ENWW
Replacing the Front Bezel
Replacing the Front Bezel
15
