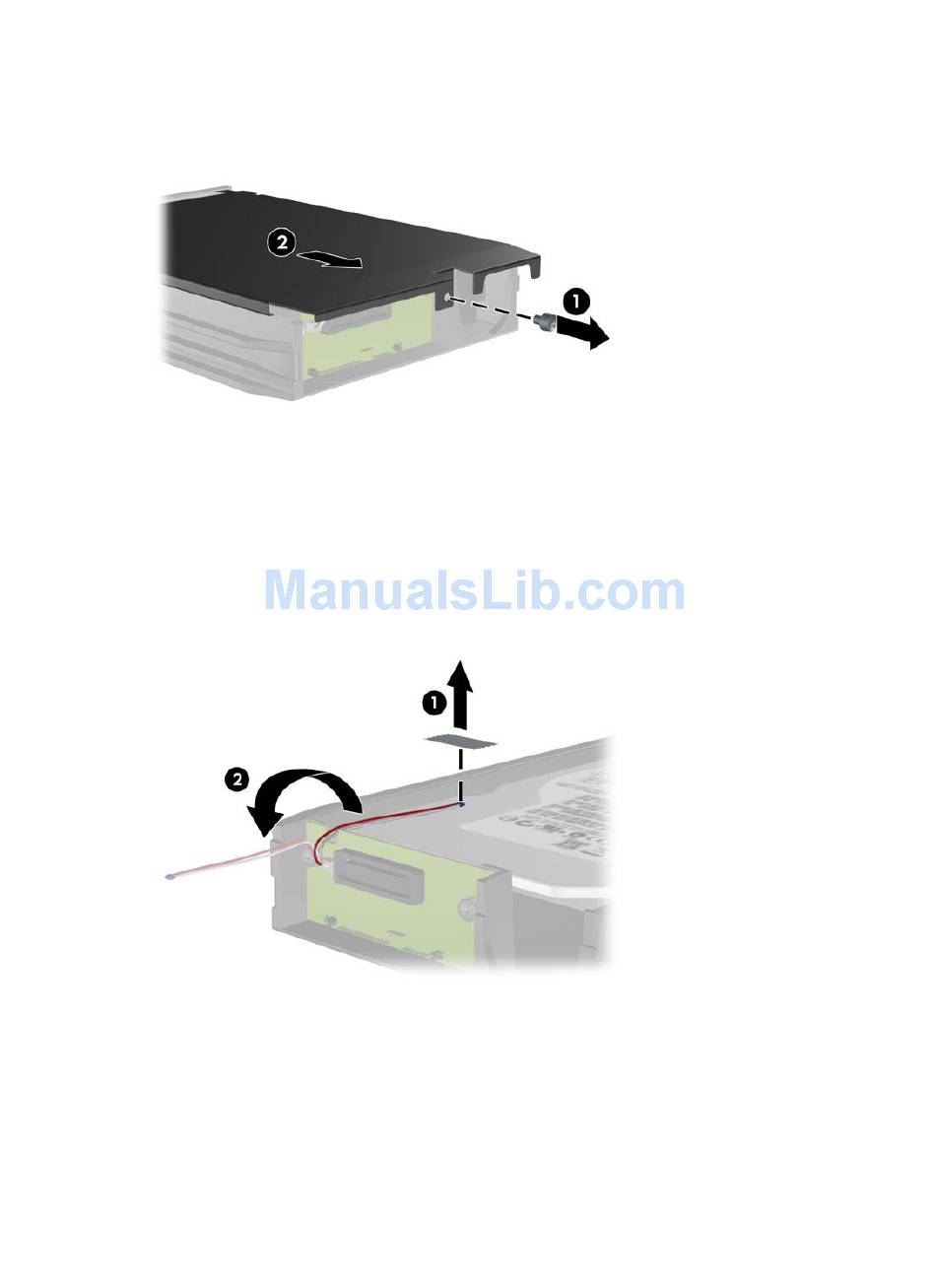

Remove the screw from the rear of the carrier (1) and slide the top cover off the carrier (2).

Figure 2-29

Remove the adhesive strip that secures the thermal sensor to the top of the hard drive (1) and

move the thermal sensor away from the carrier (2).

Figure 2-30

ENWW

Removing the Carrier Cover

Removing the Thermal Sensor

Installing Additional Drives
