Compaq 8000 - Elite Convertible Minitower PC Hardware Reference Manual page 33

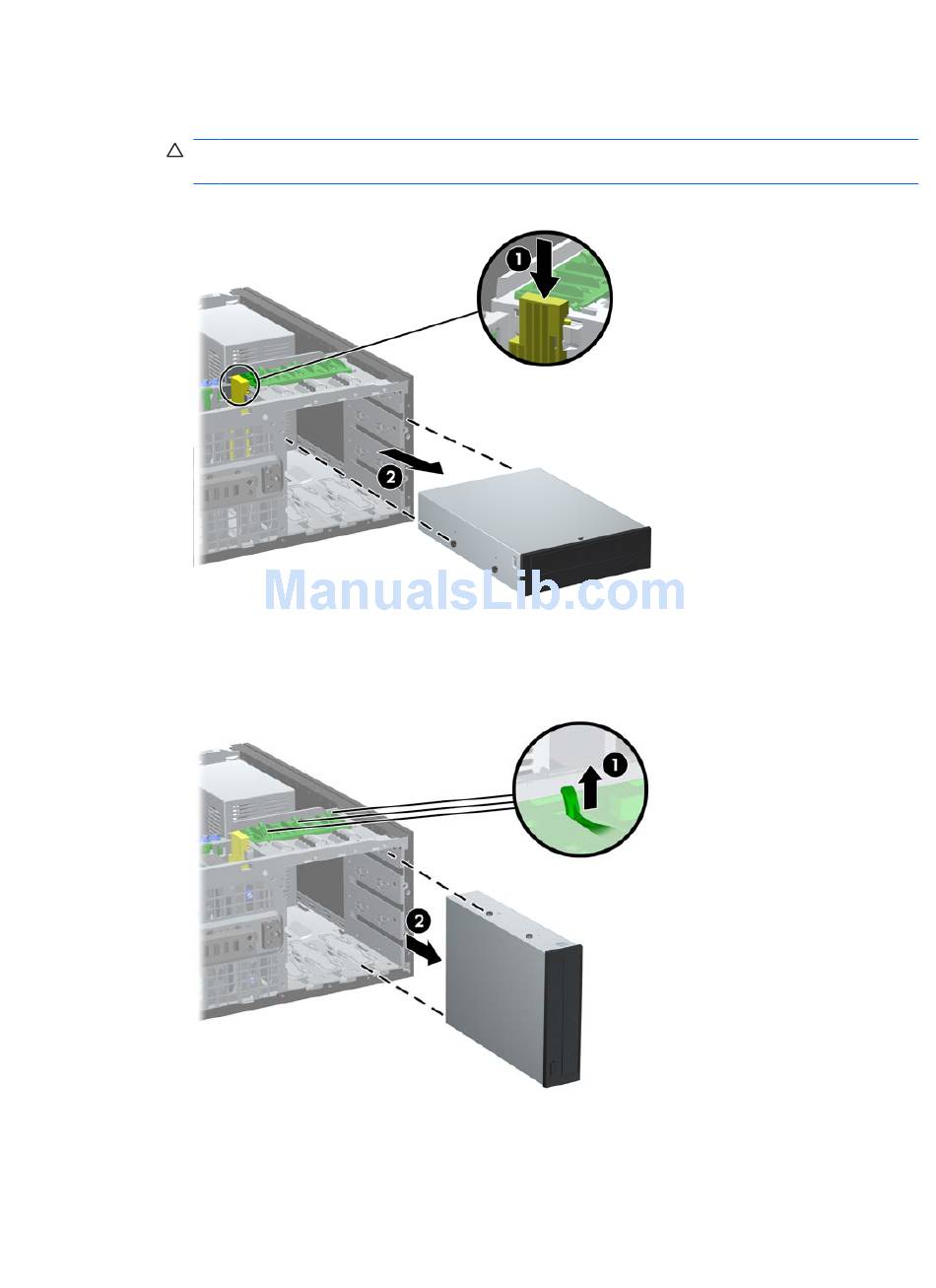

7. Remove the drive from the drive bay as follows:
●
To remove a 5.25-inch drive in the desktop configuration, press down on the yellow drivelock
mechanism (1) and slide the drive from the drive bay (2).
CAUTION:
released so do not tilt the unit and allow the drives to fall out.
Figure 2-19
● To remove a 5.25-inch drive in the minitower configuration, pull up on the green drivelock
mechanism (1) for that specific drive and slide the drive from the drive bay (2).
Figure 2-20
ENWW
When the yellow drivelock is pressed, all the external 5.25-inch drives are
Removing a 5.25-inch Drive in the Desktop Configuration (Optical Drive shown)
Removing a 5.25-inch Drive in the Minitower Configuration (Optical Drive shown)
Removing a Drive from a Drive Bay 27
