Depending on the type of battery holder on the system board, complete the following instructions

to replace the battery.

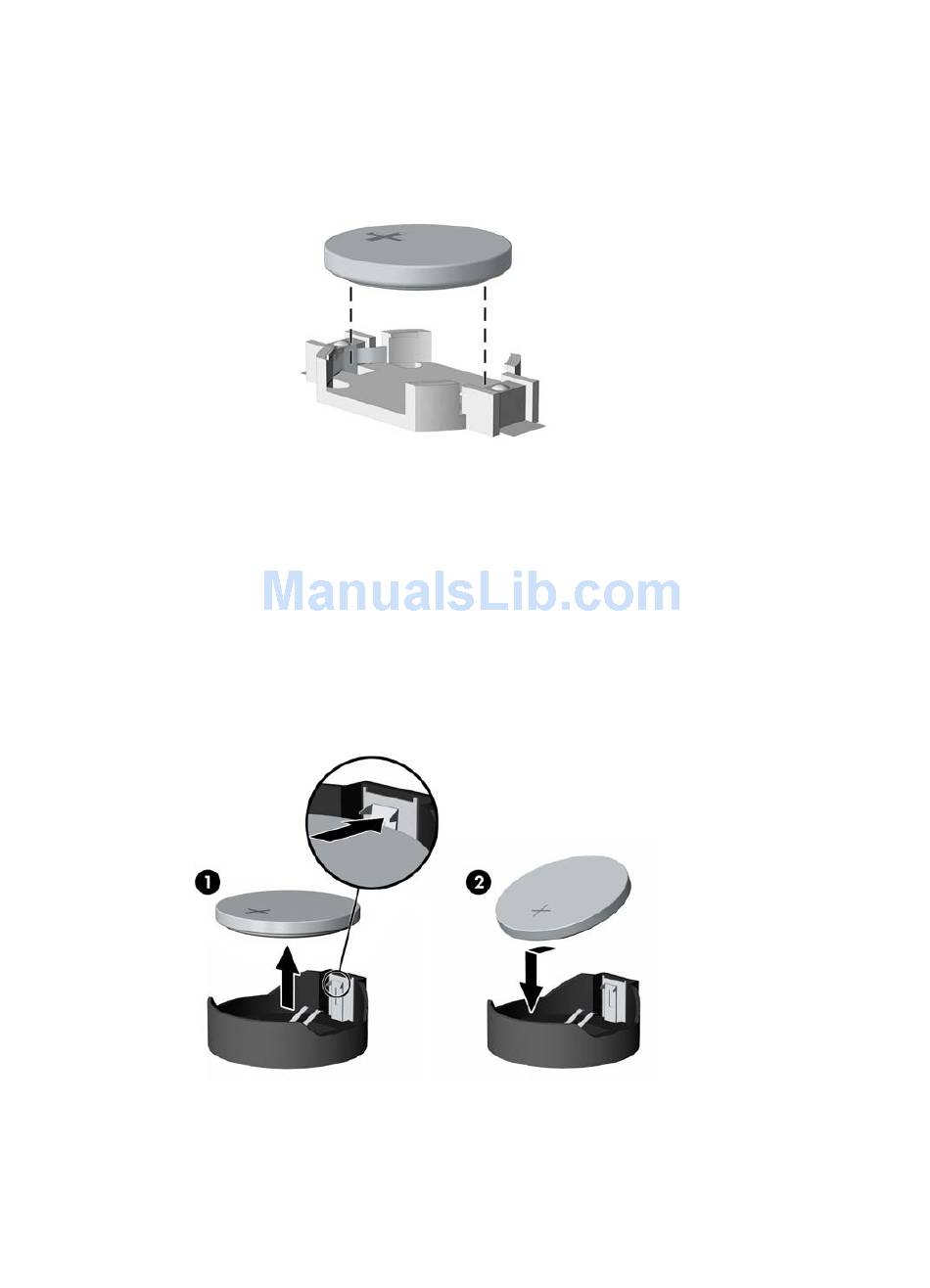

Type 1

Lift the battery out of its holder.

Figure B-1

Slide the replacement battery into position, positive side up. The battery holder automatically

secures the battery in the proper position.

Type 2

To release the battery from its holder, squeeze the metal clamp that extends above one edge

of the battery. When the battery pops up, lift it out (1).

To insert the new battery, slide one edge of the replacement battery under the holder's lip with

the positive side up. Push the other edge down until the clamp snaps over the other edge of

the battery (2).

Figure B-2

Type 3

Pull back on the clip (1) that is holding the battery in place, and remove the battery (2).

ENWW

Removing a Coin Cell Battery (Type 1)

Removing and Replacing a Coin Cell Battery (Type 2)
