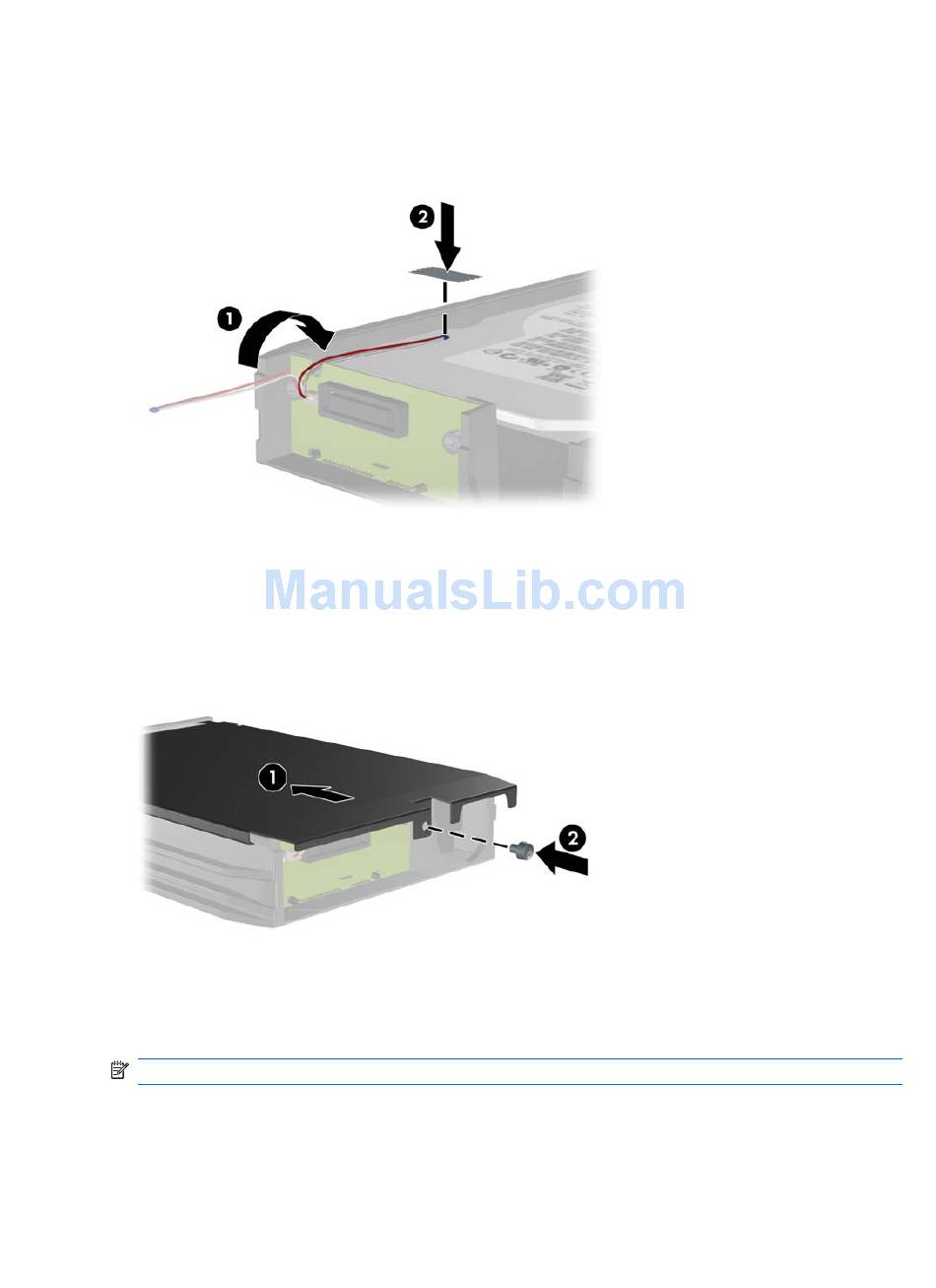

Place the thermal sensor on top of the hard drive in a position that does not cover the label (1) and

attach the thermal sensor to the top of the hard drive with the adhesive strip (2).

Figure 2-35

Slide the cover on the carrier (1) and replace the screw on the rear of the carrier to secure the cover

in place (2).

Figure 2-36

10.

Slide the hard drive carrier into the enclosure on the computer and lock it with the key provided.

NOTE:

Chapter 2 Hardware Upgrades

Replacing the Thermal Sensor

Replacing the Carrier Cover

The carrier must be locked for power to be supplied to the hard drive.
