Compaq 8000 - Elite Convertible Minitower PC Hardware Reference Manual page 59

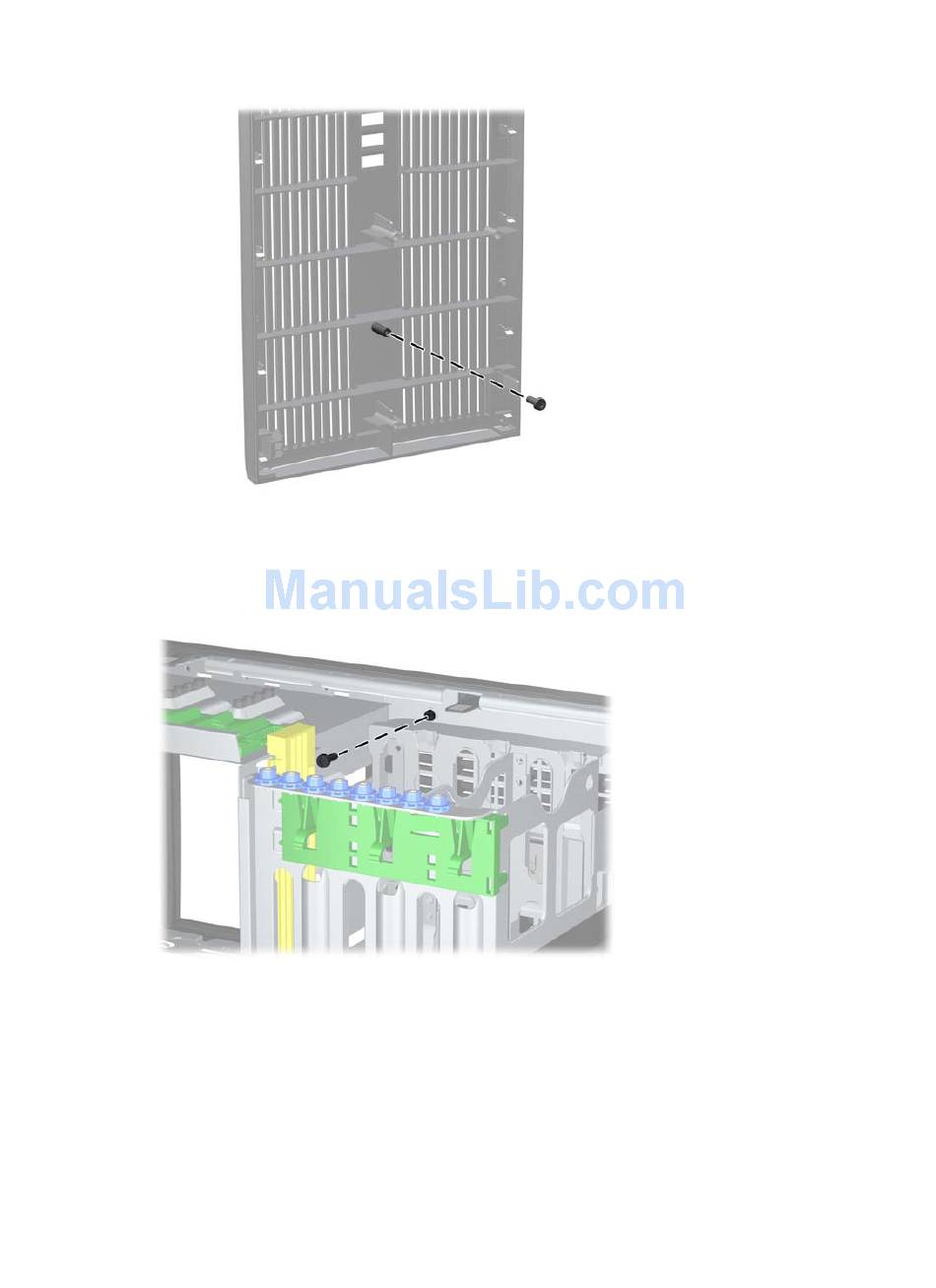

6. Remove the security screw from the inside of the front bezel.
Figure C-7
7. Replace the front bezel.
8. Install the screw through the interior of the front of the chassis into the front bezel. The screw hole
is located on the left edge of the chassis next to the top hard drive bay.
Figure C-8
9. Replace the access panel.
10. Reconnect the power cord and turn on the computer.
11. Lock any security devices that were disengaged when the access panel was removed.
ENWW
Retrieving the Front Bezel Security Screw
Installing the Front Bezel Security Screw
Installing a Security Lock 53
