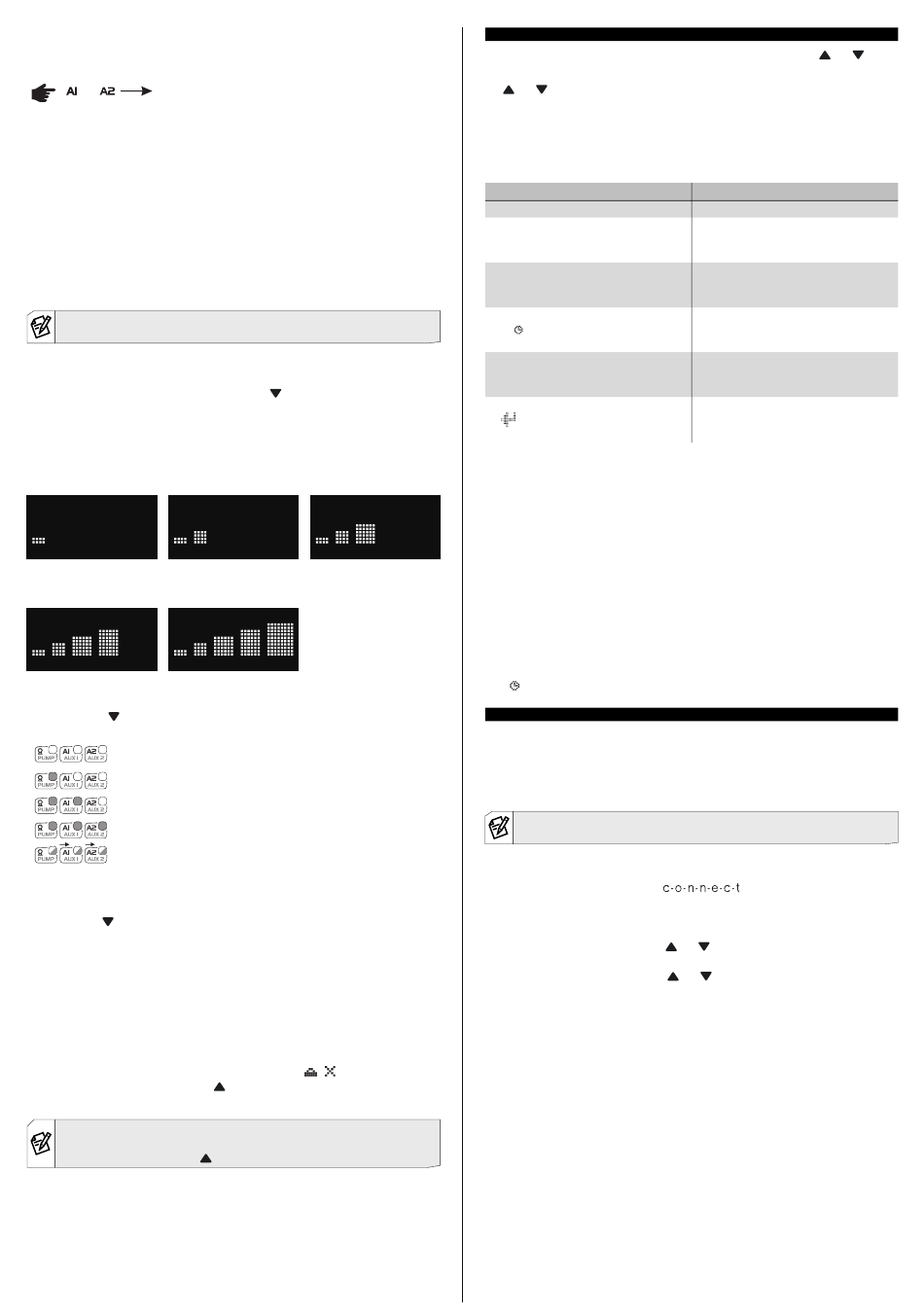

6.4 HOLIDAYS MODE
To enable or disable HOLIDAYS mode, press the A1 and A2 keys
until the message HOL (Holidays on), or H.OFF (Holidays off) appears
+
HOLIDAYS
Press for 4 seconds
When HOLIDAYS mode is enabled:
Ÿ Event schedule is ignored, backup outputs remain off, resulting in reduced energy
consumption.
Ÿ
It performs the cooling of the reservoir as programmed in DF.11 - Temperature in the
T3 sensor to turn off the cooling in Holidays mode.
HOLIDAYS mode is used to turn off the backups and allow the tank to be cooled through the
solar collector when its temperature is lower than the tank, e.g., at night. In periods with low or
no consumption of hot water and high solar intensity, for example during vacation, holidays or
seasons when people stay outside the residence, the reservoir will reach its maximum
temperature limit and the solar heating system will be subject to high thermal load.
Note: Changing the support operating mode is blocked by clicking on the auxiliary
key A1 or A2, and the message H.ON is shown on the display.
6.5 VIEW ID AND WI-FI STATUS
To view Wi-Fi connection information, briefly press the
message, which displays the last 4 digits of the controller ID, or the WiFi, message, which
shows the Wi-Fi connection status. This information will be displayed for 50 seconds, after
the preferred indication will return, as set in parameter GE.03 - Preferred Indication.
From the WiFi menu, you can check the Wi-Fi signal strength on the controller:
Very Weak
Strong Very Strong
By pressing the key until the WiFi message appears, the status LEDs for Wi-Fi
operation are displayed:
All OFF = Controller cannot connect to the Wi-Fi network, or network not
configured in the controller;
Blue = connected to the Wi-Fi network;
Blue = connected to the internet;
Blue = sending and receiving data;
Blue = flashing sequentially, indicates AP mode;
6.6 VIEW OTHER TEMPERATURES
To switch between displaying the temperature of the sensors or the differential (T1-T2),
briefly press the key until the desired temperature appears on the display. At each press,
the sensor description is briefly displayed, followed by its temperature. The selected
temperature will be displayed for 10 seconds. Afterwards, the preferred indication is
displayed again, as set in parameter GE.03 - Preferred Indication.
6.7 FUNCTION LOCK
For security reasons and in order to prevent unauthorized persons from changing the
controller settings, there is a function lock feature. With this setting activated, the parameters
cannot be changed, only viewed, according to the configured protection level. The parameter
GE.05 determines which type of locking will be performed. In the lock condition, when
trying to change the value of a locked parameter, the message
To enable/disable the functions lock, the
parameter GE.06 – Time for locking functions.
Note: With the function lock active, unauthorized persons will not be able to change
theoperating mode or parameters of the controller. When there is a need for any
changes, just keep pressed the
simultaneously 4 seconds
on the display.
key, until the display shows the ID,
Weak Moderate
appears on the display.
key must be pressed for the time configured in
key to enable/disable this feature.
7. SETTINGS - USER LEVEL
Access the settings menu by pressing the SET key (short press). Use the and
select the desired function. This value can be edited with a short press on the SET key.Use
keys to change the value, and when ready, give a short press on the SET key
the and
to memorize the set value and return to the functions menu.
To exit the menu and return to normal operation (temperature display) press the SET key
(long press).
7.1 PARAMETERS TABLE
Fun Description
A1.SP Auxiliary 1 Temperature Setpoint
A2.SP Auxiliary 2 Temperature Setpoint
SET Time and Day Adjustment
EVNT Event Schedule Adjustment
Back to Home Screen
7.2 DESCRIPTION OF PARAMETERS
7.2.1 SETPOINT ADJUSTMENT
By accessing the user settings, you can adjust the Setpoint settings for auxiliaries 1 and 2.
A1.SP - Auxiliary 1 temperature setpoint:
Sets the desired control temperature for auxiliary 1.
A2.SP - Auxiliary 2 temperature setpoint:
Sets the desired control temperature for auxiliary 2.
7.2.2 TIME AND DAY ADJUSTMENT
When accessing the user settings it is possible to adjust the time and day by selecting the
SET parameter with a short press on the
IMPORTANT!!!
The controller has an internal auxiliary source to keep the clock running during a power
outage for a minimum of 72 hours. If the controller is turned off for a long period, the ECLO
message may be displayed, indicating that the clock is deprogrammed. In this situation, the
controller's date and time must be adjusted, keeping it energized for 10 hours so that the
auxiliary source is fully recharged.
Note: If the controller is in ECLO (deprogrammed clock), the event schedule is
ignored.
7.2.3 ADJUSTMENT OF THE EVENTS SCHEDULE
The Microsol BMP Advanced
independently configurable events associated with auxiliary outputs. By accessing the user
settings it is possible to access the event schedule by selecting the EVNT parameter with a
SET
short press on the key. To configure an event, you must configure the start, end and
control parameters of the event. Use the and
When selecting EV.01 ... EV.16 , with a short press on the
configure the event parameters. Use the and
SET
with a short press on the key, it is possible to edit its value. To exit the control parameter
setting and return to the previous menu, press the
STRT: Event start time;
STOP: Event end time;
DAYS: Days of the week that the event will take place;
ENAB: Enable/Disable event;
A1/A2: Auxiliary output configuration during the event:
Ÿ OFF: The auxiliary output is not configured to be controlled during the event;
Ÿ
SP: The auxiliary output is configured to be controlled during the event. The control uses
the Setpoint configured in A1.SP/A2.SP ;
Ÿ
ECO: The auxiliary output is configured to be controlled during the event. The control will
be using the Economic Setpoint configured in A1.06 / A2.06.
User Celsius (Fahrenheit)
min max unit default
A1.03 A1.04 °C (°F)
(113.0)
A2.03 A2.04 °C (°F)
(113.0)
See item
7.2.2 Time and Day Adjustment
See item
7.2.3 Adjustment of the Events Schedule
-
SET
key.
WIFI has a schedule of up to 16
keys to select between event functions.
SET
key it is possible to
keys to select the desired parameter and,
SET
key for 2 seconds.
keys to
45.0
45.0
