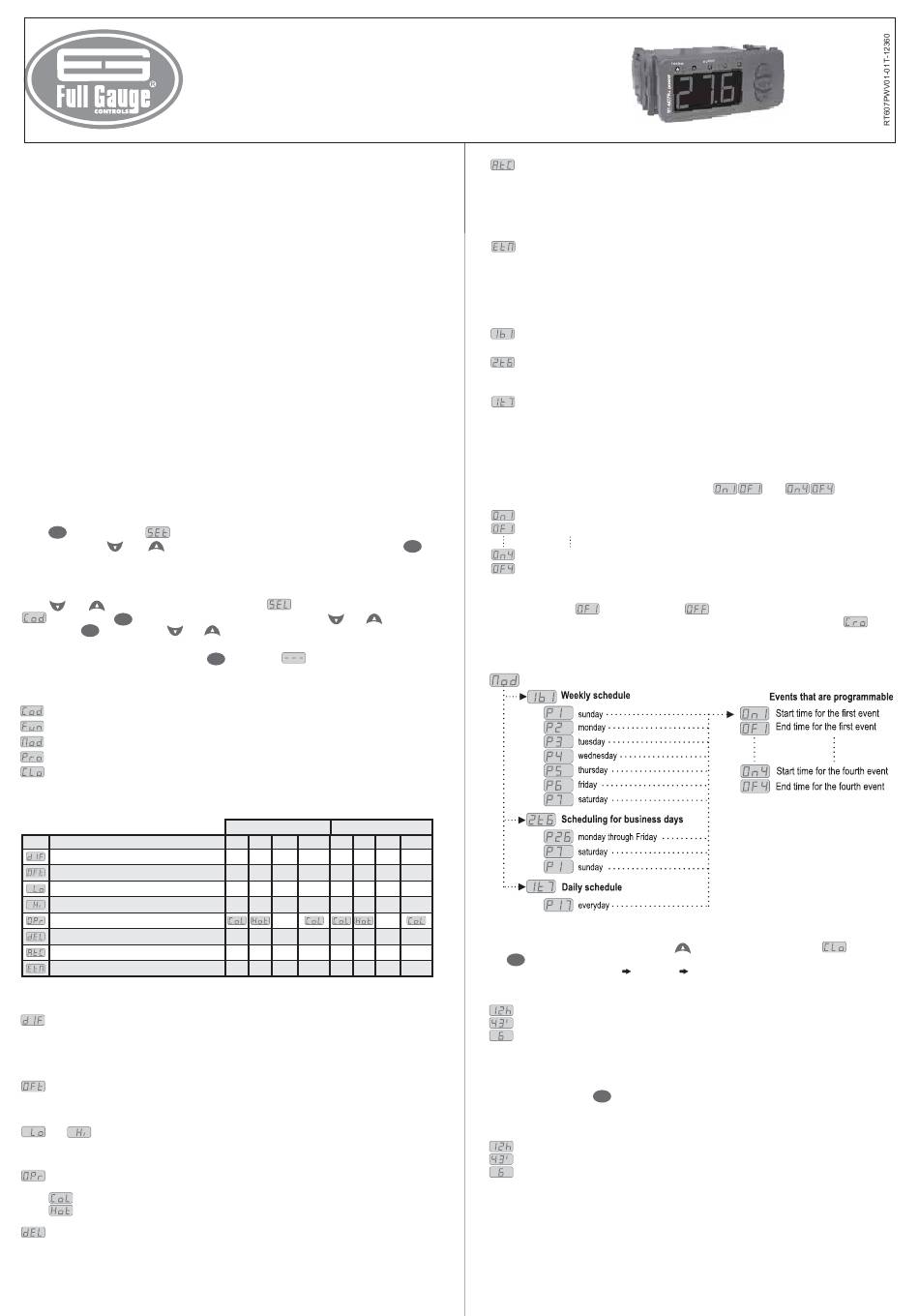

Full Gauge Controls RT-607RiL power Manual

1. DESCRIPTION
Digital temperature controller and display conjugated to a time programmer with up to four daily events,
all with adjustable start and end. Its internal quartz synchronizer clock remains accurate for more than
60 years, even at frequent and often long power shortages.
2. APPLICATION
•Air-conditioning
• Water heaters
• Counters with static coil
3. TECHNICAL SPECIFICATIONS
- Power supply: RT-607Ri power - 115 or 230Vac ± 10% (50/60Hz)
RT-607RiL power - 12 or 24 Vac/dc
- Control temperature: -50 to 105°C
-
58 to 221°F
- Resolution: 0.1°C between -10 e 100°C and 1°C in the rest of the range
1°F between -58 and 221°F
- Dimensions: 71 x 28 x 71mm
- Operating temperature: 0 to 60°C / 32 to 140°F
- Operating humidity: 10 to 90% RH (without condensation)
- Sensors: S1- Thermostat sensor (black)
- Control outputs:
THERM - Thermostat control output - 16(8)A/ 240Vac 1HP
4. CONFIGURATIONS
4.1 - Control temperature setting (SETPOINT)
Press for 2 seconds until , appears, and then release the key. The set working temperature
SET
will appear. Use the and keys in order to change the value and, when ready, press
record.
4.2 - To enter into the functions menu
Press and simultaneously for two seconds until it
appears, press (short hit) and enter the code (123) through keys
SET
press the key SET . Through keys and
manner to adjust them.
To leave and return to normal operations, press
4.3 - Functions
Access code entry
Advanced configuration functions
Events planner operating mode
Scheduling in the events planner
Adjustment of the clock and the day of the week
4.4 - Parameters table
Fun Description
Temperature control differential (hysteresis)
Indication Offset
Minimum limit of adjustable temperature
Maximum limit of adjustable temperature
Operation mode for the thermostat
Minimum time of off thermostat output
Hitch thermostat to event schedule
Manual activation time for events output
4.4.1 - Parameters description
Temperature control differential (hysteresis)
It is the temperature difference (hysteresis) between turning the refrigeration or heating ON and OFF.
Example: When you wish to control the temperature at 4.0 ºC with a 1.0 ºC differential. In the case of
refrigeration, it shall be turned off at 4.0°C and turned on again at 5°C
In the case of heating, it shall be turned off at 4°C and turned on again at 3°C
Indication Offset
Permits to compensate for any possible deviations in the reading of the room temperature (S1), resulting
from the sensor replacement or change in the cable length.
and Minimum and Maximum limits of adjustable temperature
Limits whose purpose is to avoid that, by mistake, the temperatures are exaggeratedly set too high or too
low with relation to the setpoint.
Operation mode for the thermostat
This function allows setting the thermostat operation mode:
Refrigeration
Heating
Minimum time of off thermostat output
Minimum time during which the thermostat output shall remain off before being reactivated. This field is
also used as activation delay when the controller is turned on.
RT-607Ri power
DIGITAL THERMOSTAT
WITH EVENT SCHEDULE
Ver.01
, appears, then releasing it. When
and
access the other functions and proceed in the same
(long hit) until appears.
SET
CELSIUS FAHRENHEIT
Min Max Unit Standard Min Max Unit
0.1 20.0 °C 1.0 1 36
-5.0 5.0 °C 0 -9 9
-50.0 105.0 °C -58 221
-50.0
-50.0 105.0 °C 105.0 -58 221
-
0 999 sec. 0 0 999 Sec.
0-no 1-yes - 0-não 0-no 1-yes
0 999 min. 0 0 999 min.
Hitch thermostat to event schedule
This option allows linking the thermostat output operation (THERM) to the event schedule. If option 0
(no) is selected, the thermostat output shall be controlled by the temperature alone.
In the case of option 1, the thermostat option shall be controlled by the temperature and may only be
activated in a valid event in the event schedule.
Manual activation time for events output
Time that output events is active when it is activated manually. Once this period of time is over, the output
events returns to function automatically.
4.4.2 - Events schedule operating mode
In this option, you can choose how the events schedule will operate.
Weekly programming
of the week
Programming for business days
business days (Monday through Friday), and allows the programming of different events for
Saturday and Sunday.
Daily programming
the week.
4.4.3 - Programming of the events schedule
In this option, you can enter the values for the time periods for each event. The entry of the data depends
on the operating mode configured. You can configure up to four events for each day. For each event you
configure the start time and the end time through options
Start time for the first event
End time for the first event
to
SET
Start time for the fourth event
End time for the fourth event
If you do not need to use the four events, you can configure it to be deactivated, and all you have to do is
increase the off time (
. To confirm,
an event to overlap at midnight, and for that you should increase the off time until the option
and adjust an event for the next day to start at 00h and 00min. According to the operating mode
configured, the following scheduling possibilities may be presented.
Standard
°F 2
°F 0
°F -58
°F 221
-
4.4.4 - Adjustment of the current time and day of the week
0
After entering the function menu, press key
- 0-no
key . The settings will appear in the following order:
SET
0
Ex.: 12h43min - Friday
Hours
Minutes
Day Of The Week
5. FUNCTIONS WHIT FACILITATED ACCESS
5.1 - Visualize the current time
Quickly pressing the key
shown, followed by the minutes and then the day of the week.
Ex.: 12h43min - Friday
Hours
Minutes
Day Of The Week
- In this mode, the instrument can configure up to four events for every day
- In this mode, the instrument keeps the events the same for
- In this mode, the instrument keeps the events the same for all of the days of
for example) until the indication appears. It is also possible to configure
repeatedly until the message
HOURS MINUTES DAY OF THE WEEK
, you can visualize the time set in the controller, the current time will be
SET
until where:
appears
appears Hit
