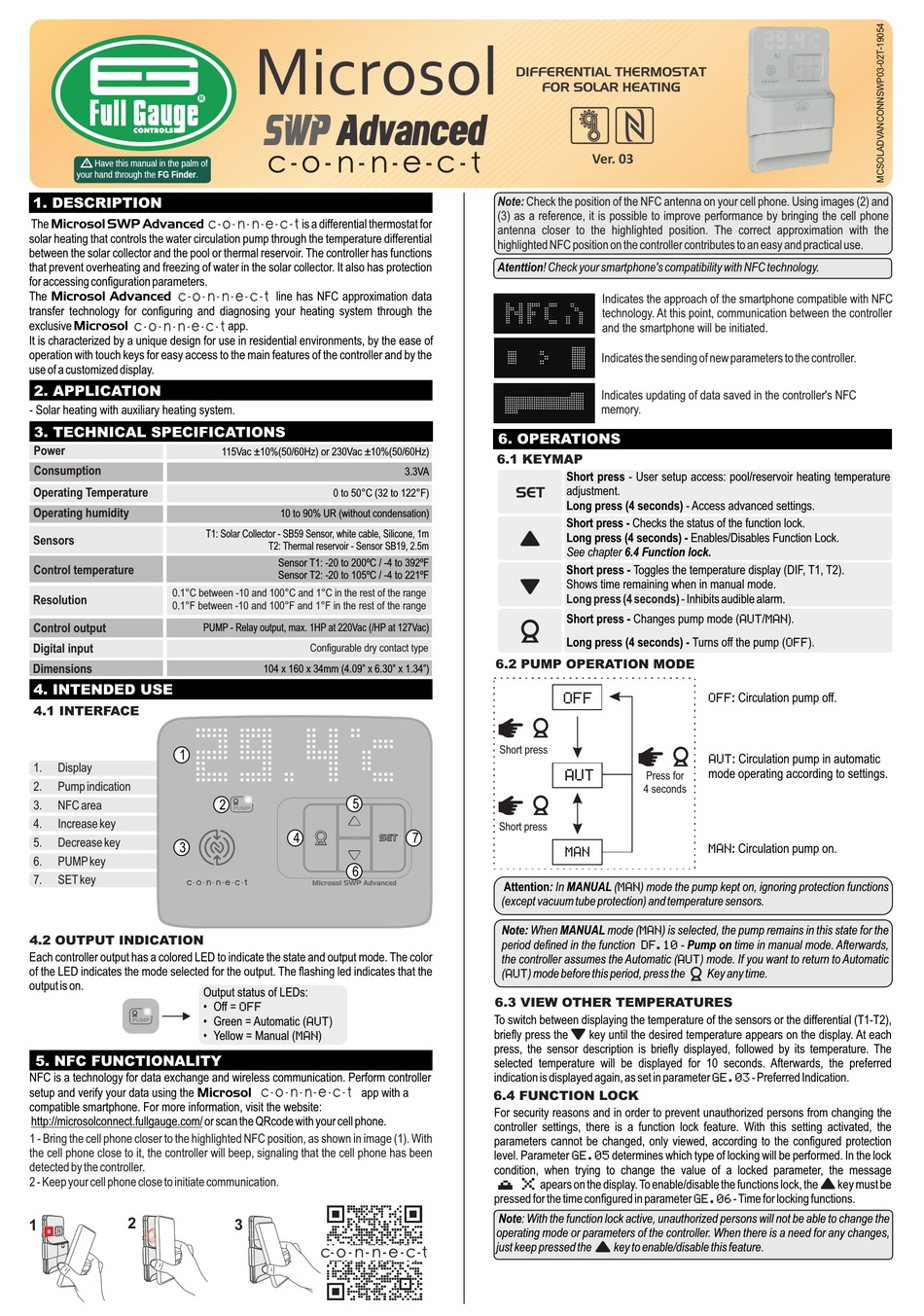

1. DESCRIPTION

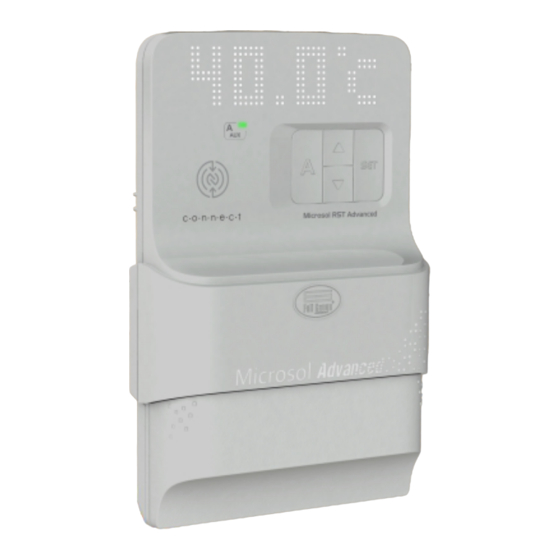

The Microsol SWP Advanced
solar heating that controls the water circulation pump through the temperature differential
between the solar collector and the pool or thermal reservoir. The controller has functions
that prevent overheating and freezing of water in the solar collector. It also has protection
for accessing configuration parameters.
The Microsol Advanced
transfer technology for configuring and diagnosing your heating system through the
exclusive Microsol
It is characterized by a unique design for use in residential environments, by the ease of
operation with touch keys for easy access to the main features of the controller and by the
use of a customized display.
2. APPLICATION
- Solar heating with auxiliary heating system.
3. TECHNICAL SPECIFICATIONS
Power
Consumption
Operating Temperature
Operating humidity
Sensors
Control temperature
0.1°C between -10 and 100°C and 1°C in the rest of the range
Resolution
0.1°F between -10 and 100°F and 1°F in the rest of the range
Control output
Digital input
Dimensions
4. INTENDED USE
4.1 INTERFACE
1
1. Display
2. Pump indication
3. NFC area
4. Increase key
5. Decrease key
3
6. PUMP key
7. SET key
4.2 OUTPUT INDICATION
Each controller output has a colored LED to indicate the state and output mode. The color
of the LED indicates the mode selected for the output. The flashing led indicates that the
output is on.
5. NFC FUNCTIONALITY
NFC is a technology for data exchange and wireless communication. Perform controller
setup and verify your data using the Microsol
compatible smartphone. For more information, visit the website:
http://microsolconnect.fullgauge.com/ or scan the QRcode with your cell phone.
1 - Bring the cell phone closer to the highlighted NFC position, as shown in image (1). With
the cell phone close to it, the controller will beep, signaling that the cell phone has been
detected by the controller.
2 - Keep your cell phone close to initiate communication.
2
1
SWP Advanced
is a differential thermostat for
line has NFC approximation data
app.
115Vac ±10%(50/60Hz) or 230Vac ±10%(50/60Hz)
0 to 50°C (32 to 122°F)
10 to 90% UR (without condensation)
T1: Solar Collector - SB59 Sensor, white cable, Silicone, 1m
T2: Thermal reservoir - Sensor SB19, 2.5m
Sensor T1: -20 to 200ºC / -4 to 392ºF
Sensor T2: -20 to 105ºC / -4 to 221ºF
PUMP - Relay output, max. 1HP at 220Vac (/HP at 127Vac)
Configurable dry contact type
104 x 160 x 34mm (4.09" x 6.30" x 1.34")
5
2
4
6
Output status of LEDs:
• Off = OFF
• Green = Automatic (AUT)
• Yellow = Manual (MAN)
app with a
3
DIFFERENTIAL THERMOSTAT
FOR SOLAR HEATING
Note: Check the position of the NFC antenna on your cell phone. Using images (2) and
(3) as a reference, it is possible to improve performance by bringing the cell phone
antenna closer to the highlighted position. The correct approximation with the
highlighted NFC position on the controller contributes to an easy and practical use.
Atenttion! Check your smartphone's compatibility with NFC technology.
6. OPERATIONS
6.1 KEYMAP
3.3VA
Short press - User setup access: pool/reservoir heating temperature
adjustment.
Long press (4 seconds) - Access advanced settings.
Short press - Checks the status of the function lock.
Long press (4 seconds) - Enables/Disables Function Lock.
See chapter 6.4 Function lock.
Short press - Toggles the temperature display (DIF, T1, T2).
Shows time remaining when in manual mode.
Long press (4 seconds)
Short press - Changes pump mode (AUT/MAN).
Long press (4 seconds) - Turns off the pump (OFF).
6.2 PUMP OPERATION MODE
OFF
Short press
AUT
Short press
7
MAN
Attention: In MANUAL (MAN) mode the pump kept on, ignoring protection functions
(except vacuum tube protection) and temperature sensors.
Note: When MANUAL mode (MAN) is selected, the pump remains in this state for the
period defined in the function DF.10 - Pump on time in manual mode. Afterwards,
the controller assumes the Automatic (AUT) mode. If you want to return to Automatic
(AUT) mode before this period, press the
6.3 VIEW OTHER TEMPERATURES
To switch between displaying the temperature of the sensors or the differential (T1-T2),
briefly press the
press, the sensor description is briefly displayed, followed by its temperature. The
selected temperature will be displayed for 10 seconds. Afterwards, the preferred
indication is displayed again, as set in parameter GE.03 - Preferred Indication.
6.4 FUNCTION LOCK
For security reasons and in order to prevent unauthorized persons from changing the
controller settings, there is a function lock feature. With this setting activated, the
parameters cannot be changed, only viewed, according to the configured protection
level. Parameter GE.05 determines which type of locking will be performed. In the lock
condition, when trying to change the value of a locked parameter, the message
111111111apears on the display. To enable/disable the functions lock, the
pressed for the time configured in parameter GE.06 - Time for locking functions.
Note: With the function lock active, unauthorized persons will not be able to change the
operating mode or parameters of the controller. When there is a need for any changes,
just keep pressed the
Ver. 03
Indicates the approach of the smartphone compatible with NFC
technology. At this point, communication between the controller
and the smartphone will be initiated.
Indicates the sending of new parameters to the controller.
Indicates updating of data saved in the controller's NFC
memory.
- Inhibits audible alarm.
OFF: Circulation pump off.
AUT: Circulation pump in automatic
mode operating according to settings.
Press for
4 seconds
MAN: Circulation pump on.
Key any time.
key until the desired temperature appears on the display. At each
key to enable/disable this feature.
key must be
