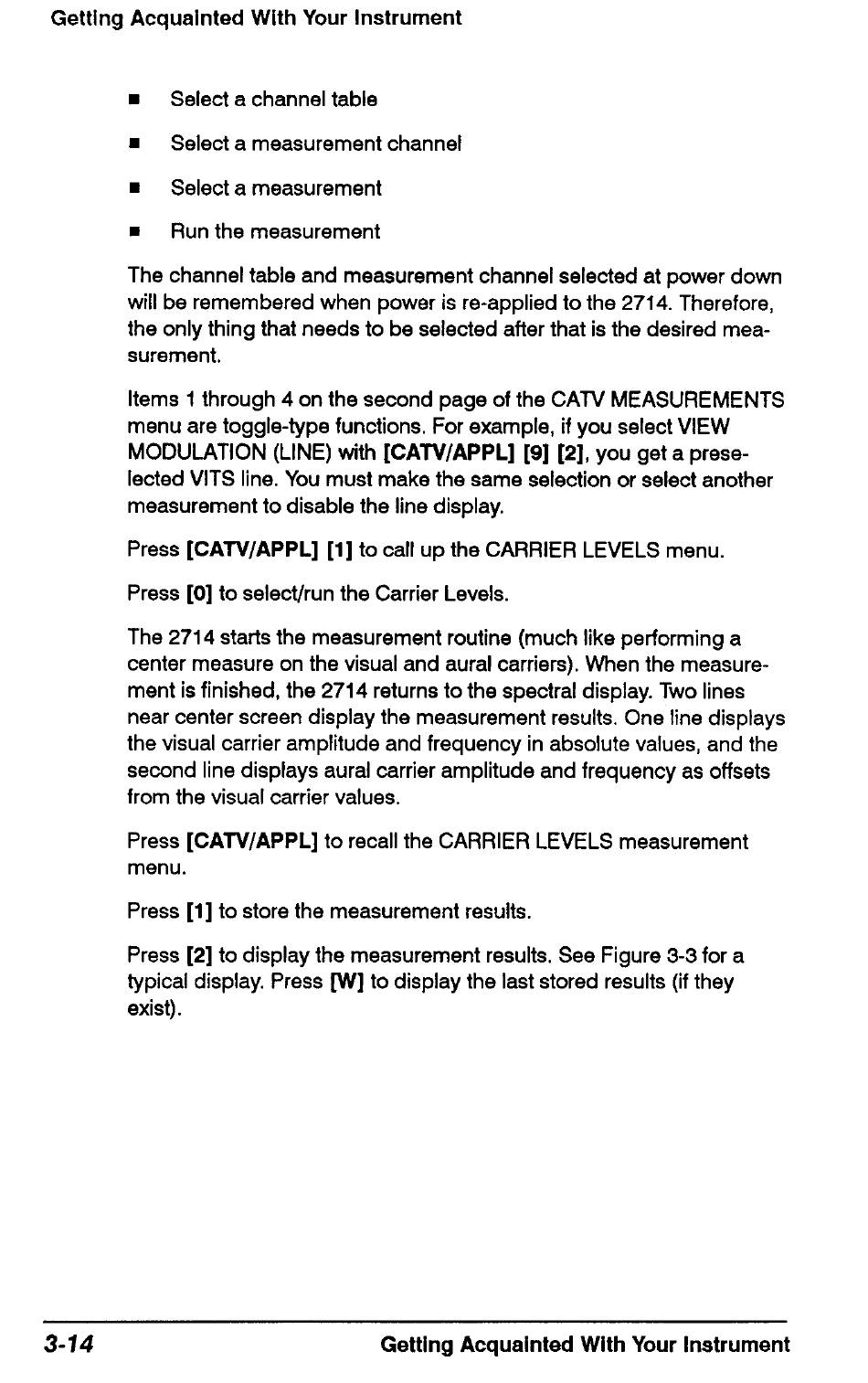

Getting Acquainted With Your Instrument
= ~=Select a measurement channel
= Select a measurement
= Run the measurement
The channel table and measurement channel selected at power down
will be remembered when power is re-applied to the 2714. Therefore,
the only thing that needs to be selected after that is the desired mea-
Items 1 through 4 on the second page of the CATV MEASUREMENTS
menu are toggle-type functions. For example, if you select VIEW
MODULATION (LINE) with [CATV/APPL] [9] [2], you get a prese-
lected VITS line. You must make the same selection or select another
measurement to disable the line display.
Press [CATV/APPL] [1] to call up the CARRIER LEVELS menu.
Press [0] to select/run the Carrier Levels.
The 2714 starts the measurement routine (much like performing a
center measure on the visual and aural carriers). When the measure-
ment is finished, the 2714 returns to the spectral display. Two lines
near center screen display the measurement results. One line displays
the visual carrier amplitude and frequency in absolute values, and the
second line displays aural carrier amplitude and frequency as offsets
from the visual carrier values.
Press [CATV/APPL] to recall the CARRIER LEVELS measurement
Press [1] to store the measurement results.
Press [2] to display the measurement results. See Figure 3-3 for a
typical display. Press [W] to display the last stored results (if they
exist).
