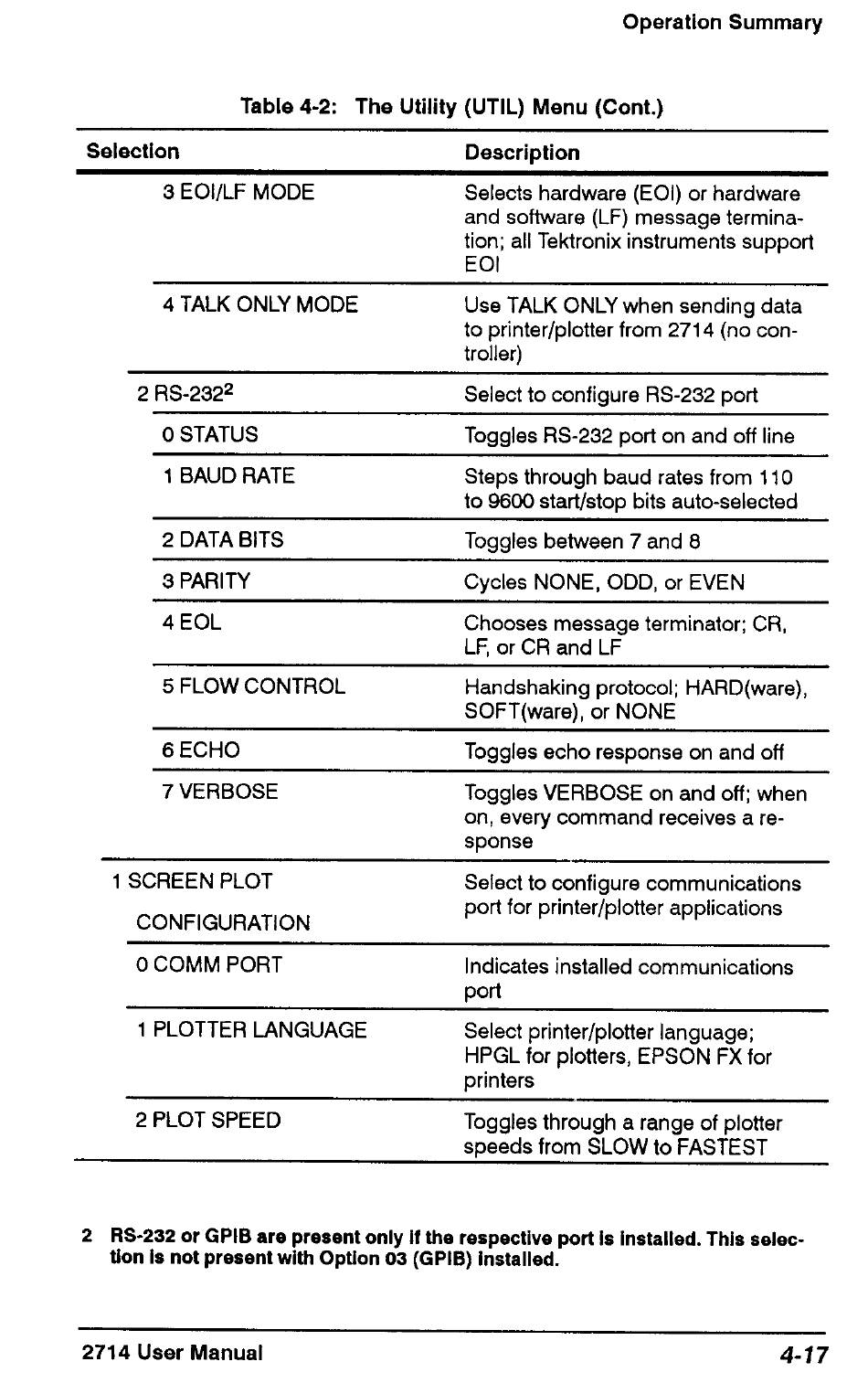

Table 4-2: The Utility (UTIL) Menu (Cont.)
Selection
3 EOI/LF MODE
Selects hardware (EOl) or hardware
and software (LF) message termina-
tion; all Tektronix instruments support
EO!
4 TALK ONLY MODE Use TALK ONLY when sending data
to printer/plotter from 2714 (no con-
2 RS-2322 Select to configure RS-232 port
0 STATUS Toggles RS-232 port on and off line
1 BAUD RATE Steps through baud rates from 110
to 9600 start/stop bits auto-selected
2 DATA BITS Toggles between 7 and 8
3 PARITY Cycles NONE, ODD, or EVEN
4EOL Chooses message terminator; CR,
LF, or CR and LF
5 FLOW CONTROL Handshaking protocol; HARD(ware),
SOF T(ware), or NONE
6 ECHO Toggles echo response on and off
7 VERBOSE Toggles VERBOSE on and off; when
sponse
1 SCREEN PLOT
CONFIGURATION
port for printer/plotter applications
port
Select printer/plotter language;
HPGL for plotters, EPSON FX for
printers
2 PLOT SPEED
speeds from SLOW to FASTEST
