Operation Summary
JMENUS|
CA
MKA/FREQ APP:
5
LJ |
DEMOD OSPL
J) J) LO

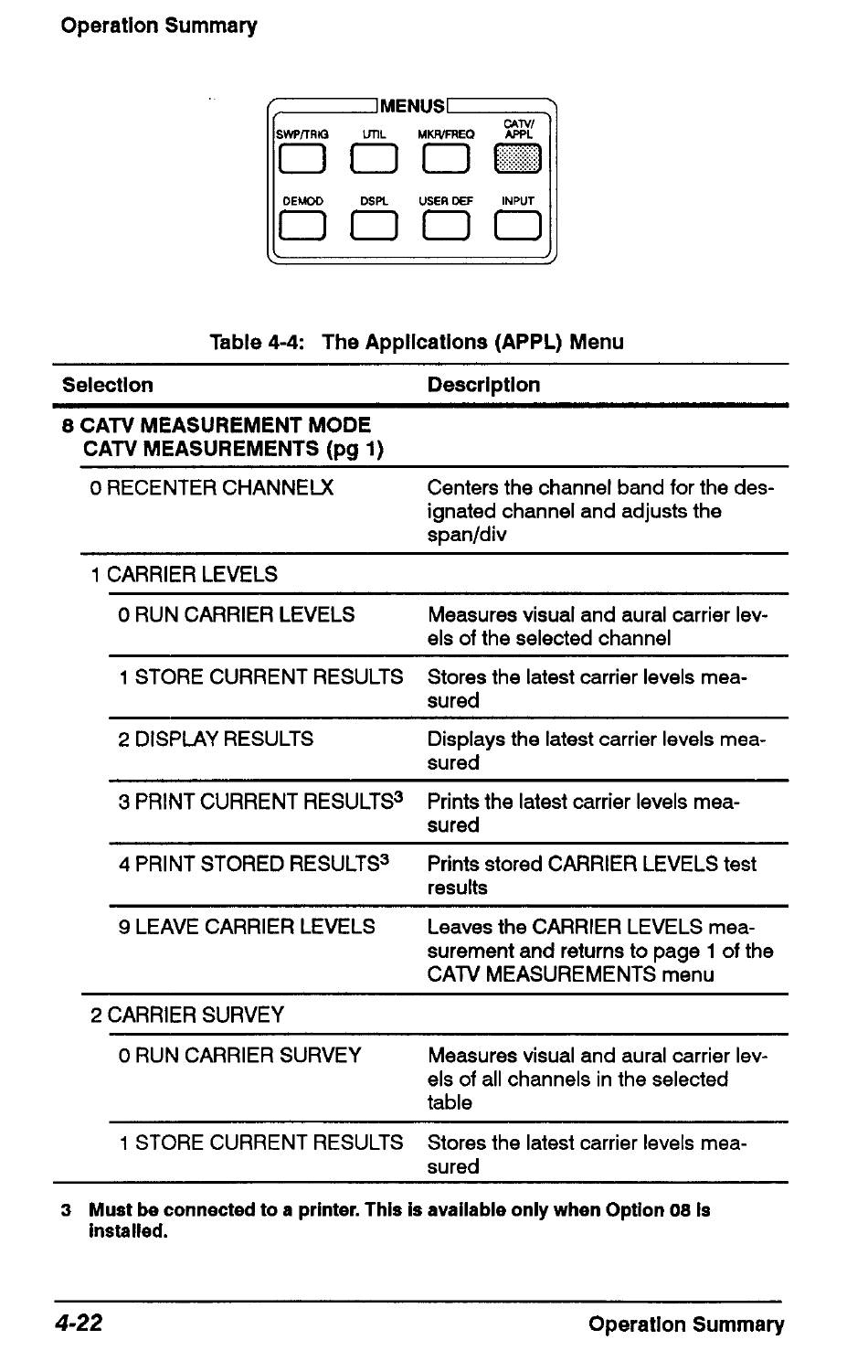

Table 4-4: The Applications (APPL) Menu
Selection Description
8 CATV MEASUREMENT MODE
CATV MEASUREMENTS (pg 1)
O RECENTER CHANNELX Centers the channel band for the des-
ignated channel and adjusts the
1 CARRIER LEVELS
0 RUN CARRIER LEVELS Measures visual and aural carrier lev-
els of the selected channel
1 STORE CURRENT RESULTS Stores the latest carrier levels mea-
sured
2 DISPLAY RESULTS Displays the latest carrier levels mea-
3 PRINT CURRENT RESULTS® Prints the latest carrier levels mea-
sured
4PRINT STORED RESULTS® Prints stored CARRIER LEVELS test
results
9 LEAVE CARRIER LEVELS Leaves the CARRIER LEVELS mea-
surement and returns to page 1 of the
CATV MEASUREMENTS menu
2 CARRIER SURVEY
O RUN CARRIER SURVEY Measures visual and aural carrier lev-
els of all channels in the selected
table
1 STORE CURRENT RESULTS Stores the latest carrier levels mea-
sured
3 Must be connected to a printer. This is available only when Option 08 Is
installed.
4-22
