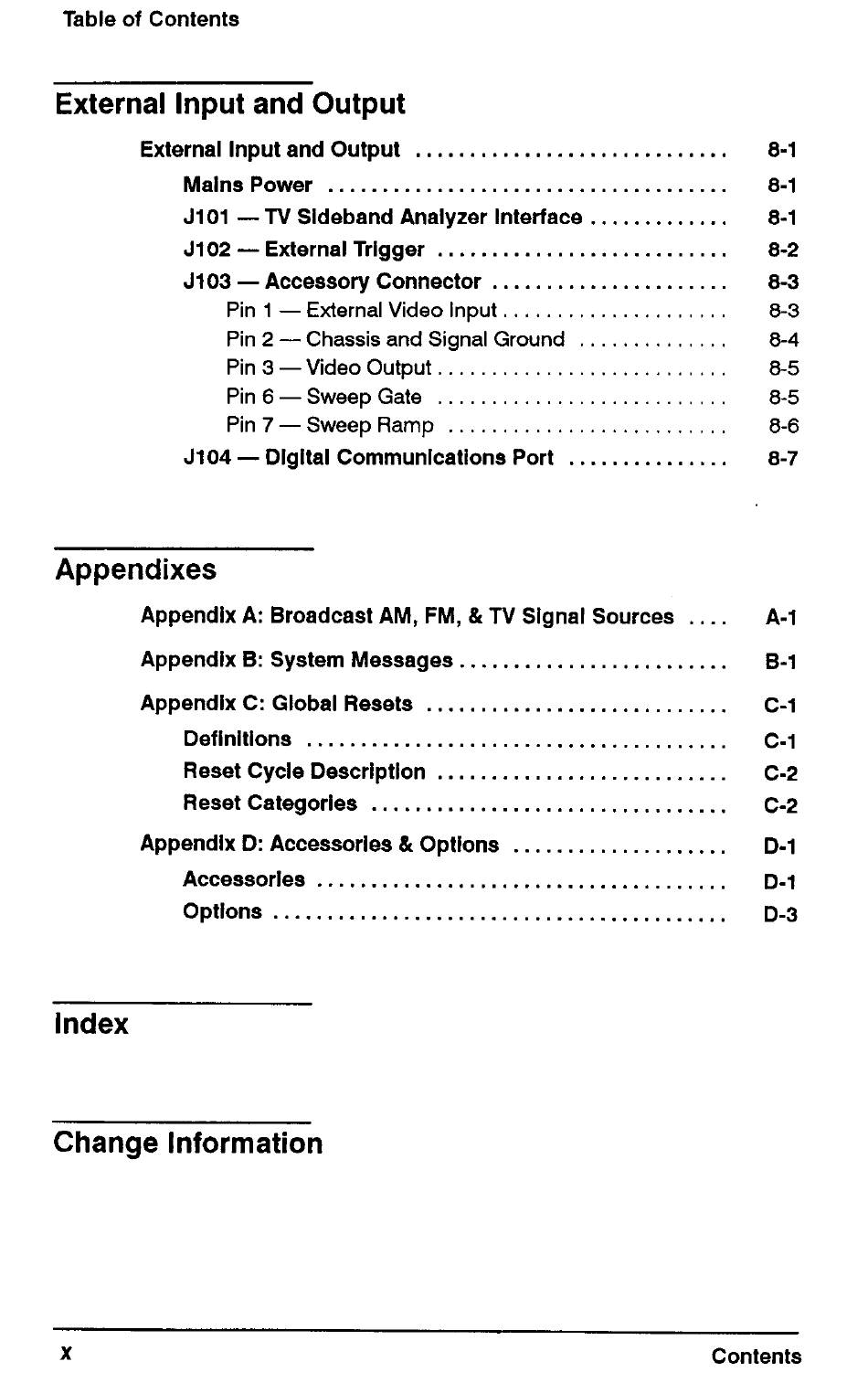

Table of Contents
External Input and Output
External Input and Output ............:: cece eee e cece 8-1
Mains Power ....... 0... cece eee e eee e teen eee eeees 8-1
J101 — TV Sideband Analyzer Interface ............. 8-1
J102 — External Trigger ............0. ccc cece eee 8-2
J103 — Accessory Connector ................6.0-5- 8-3
Pin 1 — External Video Input................0.... 8-3
Pin 2 — Chassis and Signal Ground .............. 8-4
Pin 3 — Video Output..... 0.6... eee 8-5
Pin 6 — Sweep Gate ..........00.. cece eee 8-5
Pin 7 — Sweep Ramp .......... 00. cece eee ees 8-6
J104 — Digital Communications Port ............... 8-7
Appendixes
Appendix A: Broadcast AM, FM, & TV Signal Sources .... A-1
Appendix B: System Messages ................000000e0e B-1
Appendix C: Global Resets .............. 0c ccc eee C-1
Change Information
x Contents
