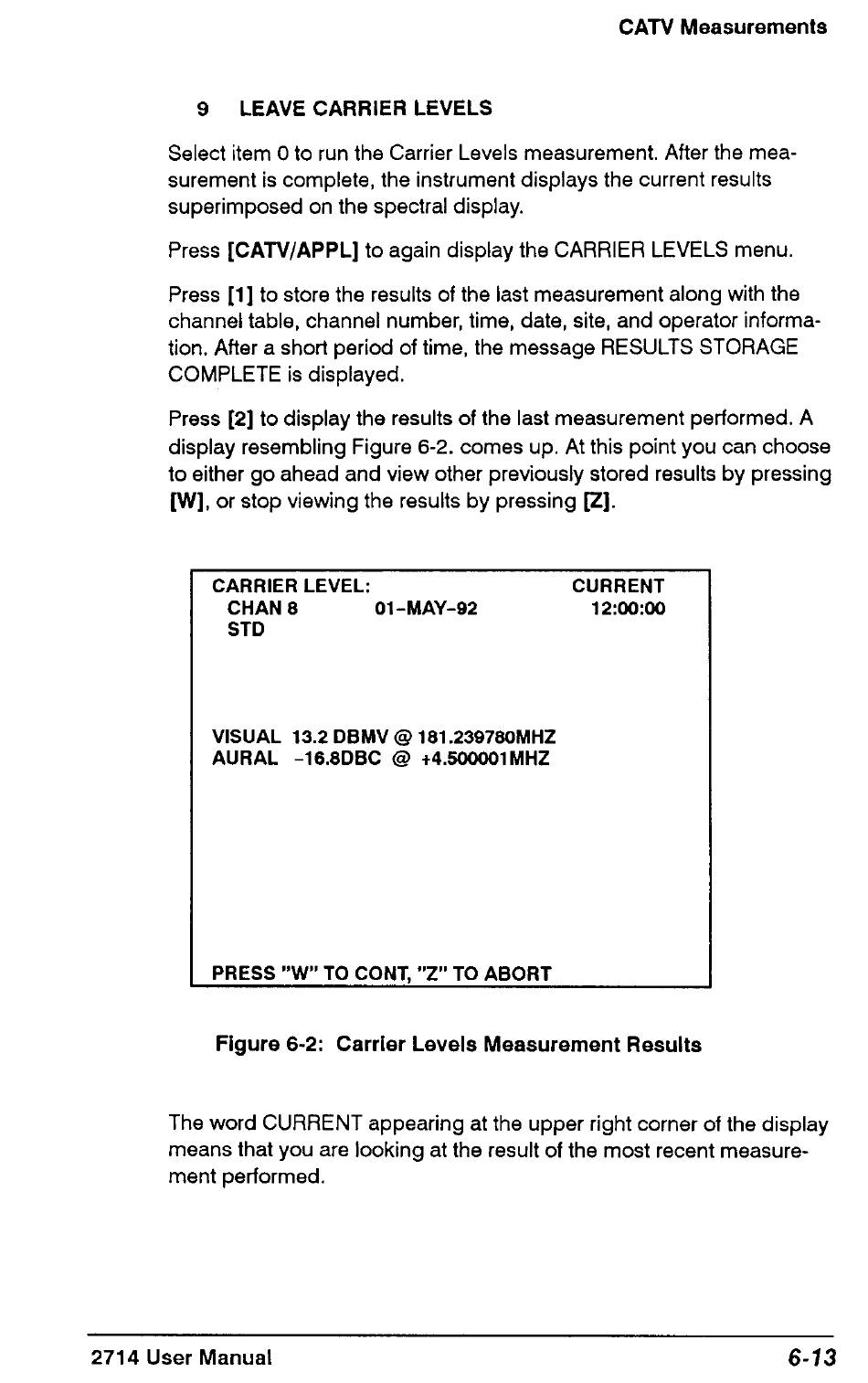

CATV Measurements
9 LEAVE CARRIER LEVELS
Select item 0 to run the Carrier Levels measurement. After the mea-
surement is complete, the instrument displays the current results
superimposed on the spectral display.
Press [CATV/APPL] to again display the CARRIER LEVELS menu.
Press [1] to store the results of the last measurement along with the
channel table, channel number, time, date, site, and operator informa-
tion. After a short period of time, the message RESULTS STORAGE
COMPLETE is displayed.
Press [2] to display the results of the last measurement performed. A
display resembling Figure 6-2. comes up. At this point you can choose
to either go ahead and view other previously stored results by pressing
[W], or stop viewing the results by pressing [Z].
CARRIER LEVEL: CURRENT
CHAN 8 01-MAY-92 12:00:00
STD
VISUAL 13.2 DBMV @ 181.239780MHZ
AURAL -16.8DBC @ +4.500001MHZ
PRESS "W" TO CONT, "2" TO ABORT
Figure 6-2: Carrier Levels Measurement Results
The word CURRENT appearing at the upper right corner of the display
means that you are looking at the result of the most recent measure-
ment performed.
