Suptek ML5074-2 Installation Manual

INSTALLATION MANUAL
WARNING!
Severe personal injury and property damage can result from improper
installation or assembly. Read the following warning carefully before begin-
ning.
●If you do not understand the instructions or have any concerns or ques-
tions, please contact a qualified local installer.
●Do not install or assemble if the product or hardware is damaged or miss-
ing. If you require replacement parts, please contact your local distributor for
assistance.
●This product fits most 32"-75" LCD/plasma screen; load capacity up to 165
lbs/75kg;
●Do not use this product for anything other than the original purpose.
●This product contains moving parts, please use with caution.
165lbs
32"-75"
（ 75KG ）

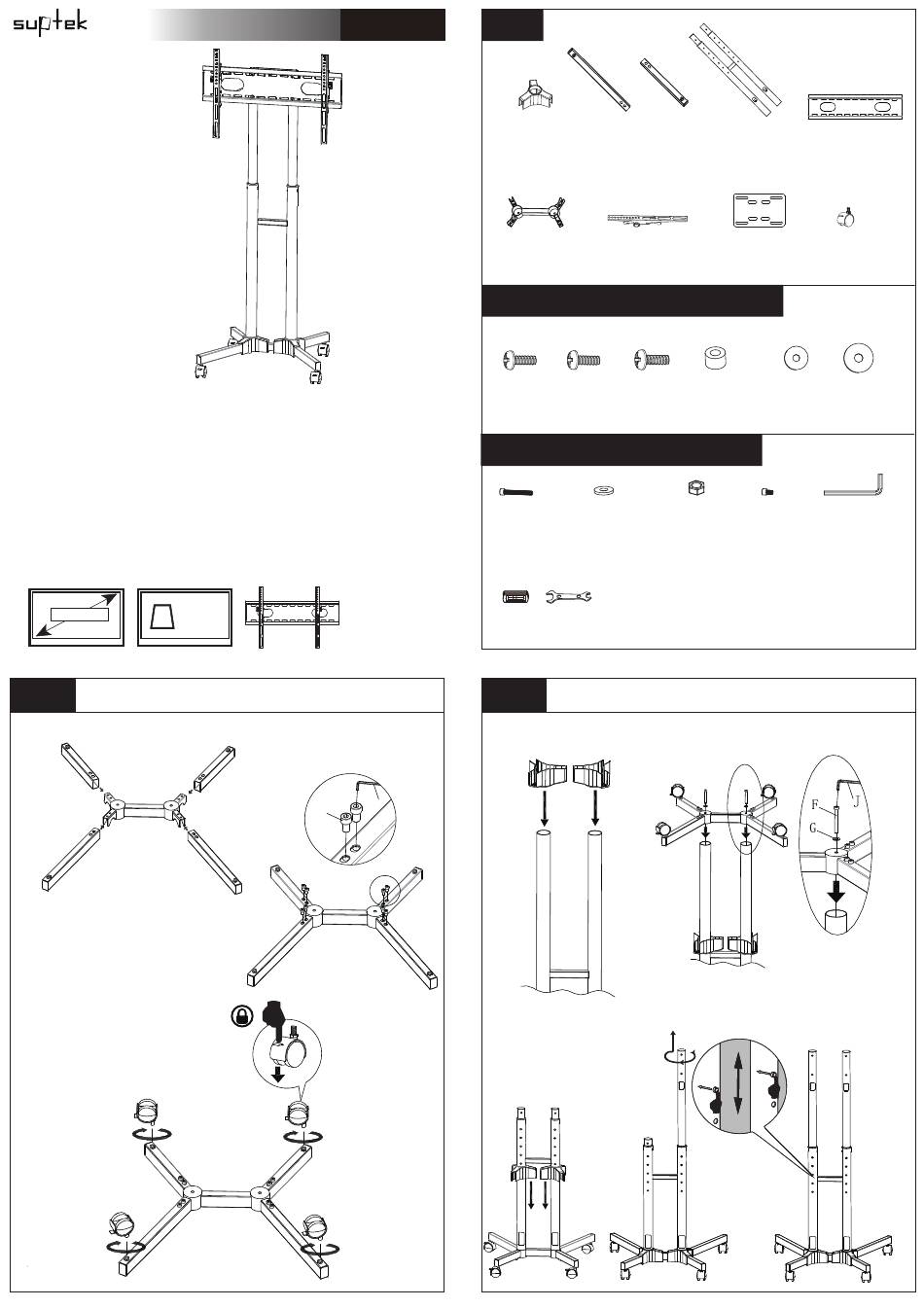

Base installation
Step 1
1.1
Insert four square tubes
into the base as shown
1.3
ML5074-2
MAX 600x400
VESA Pattern
J
I
1.2
Tighten screw I with wrench J
Parts
Plastic fixing Long square Short square
cover X2 tube x2
Base x1 Hook x2
Screw package (for TV installation)
M5x20 (x4) M6x20 (x4) M8x20 (x4)
(G1) (H1)
( G2)
Screw package (for floor stand)
φ φ
F:M8x60 G: 8x 16x1.5
(X6) Washer
(X10)
K:bubble level & wrench(X1)
Step 2
Installation of base and column and the adjustment of height
2.1
2.3 2.4
Panel x1
Column x1
tube x2
Plate for fixing Castor x4
column x1
D8 Higher D5 Washer(x4) D6 Washer(x4)
spacer (x4) (F)
(H2)
H:M8 Nut I:M8x12 J:S6 allen key
(X4) (X8) (X1)
2.2
Tighten screw F with wrench J as shown.
2.5
(O)
