FR600 series inverters fast installation and commissioning guide
Step 1. Checking the inverter model No.
Master series code of
Product：
FR600: 550/690VAC
Vector control inverter
Industry-specific series
code：
None：Standard Machine
A～Z:Industry-specific
retention
Input voltage:
5: 550V(-30%～+10%）
6: 690V(-30%～+10%）
Step 2. Wirings
By step 1 to check and confirm that the purchased inverter is what user need, and then
wirings as below:
1. Main circuit wiring
Power
Terminal marks
R/L1、S/L2、T/L3
U/T1、V/T2、W/T3
(+)、(-)
PB
2. Control circuit wirings
Different control circuit wirings for different applications, for FRECON product quick-menu,
here take some normal-used wirings as example below:
FR600

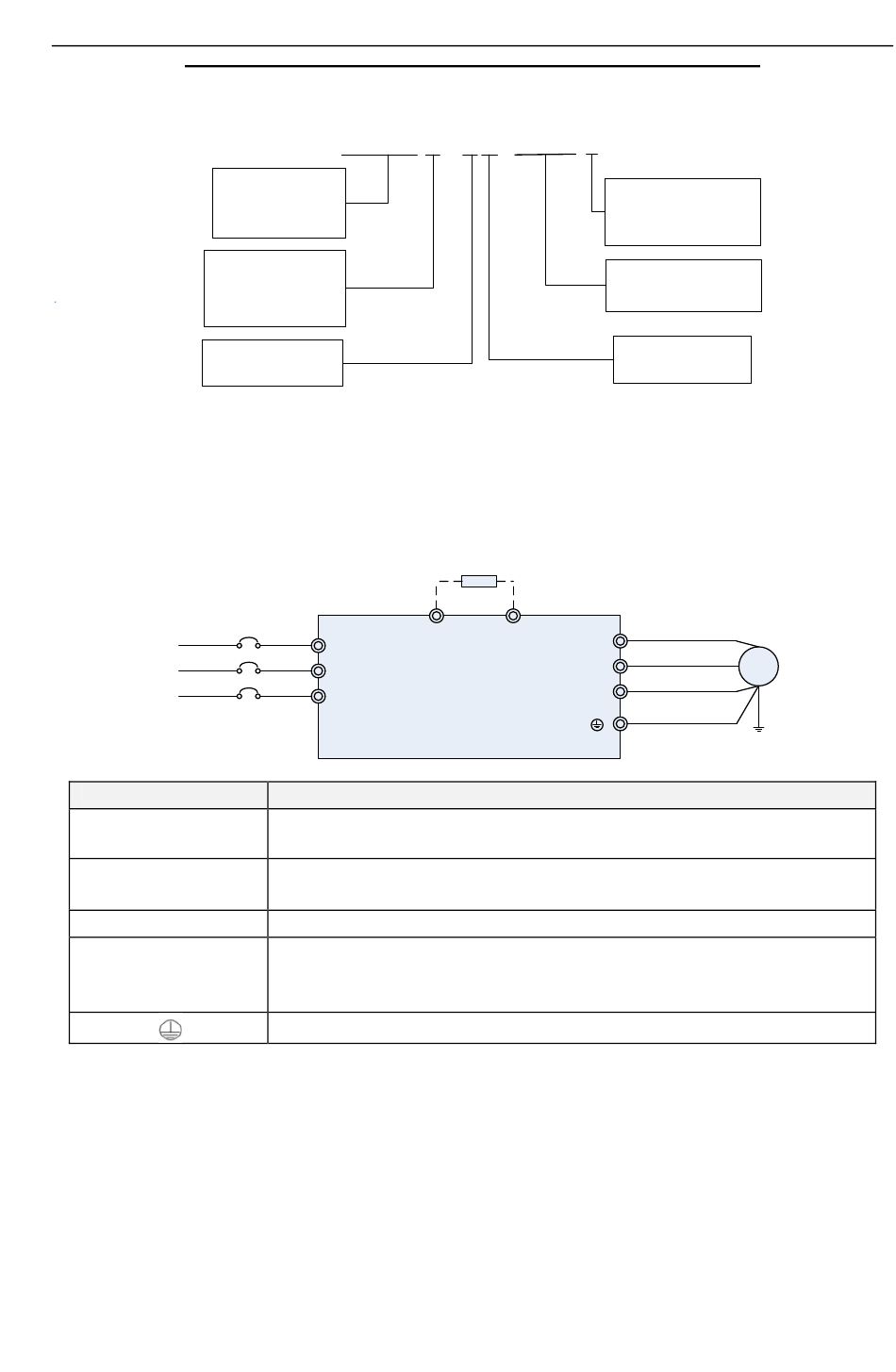

Figure 1 Produce Model No. Naming Rule
Braking Resistor(Optional spares）
MCCB
L1
L2
L3
Figure 2 Main Circuit Wirings
Designation and function of terminals.
AC power input terminals for connecting to 3-phase AC380V power
supply.
AC output terminals of inverter for connecting to 3-phase induction
motor.
Positive and negative terminals of internal DC bus.
Positive and negative terminals of internal DC bus. Connecting
terminals of braking resistor. One end connected to + and the other to
PB.
Grounding terminal.
FR600 Series 550VAC/690VAC Vector Control Inverter
-6T-7.5
□
(+) PB
Inverter
- 1 -
Brake unit：
None: No Braking Unit
B: Built-in brake unit
Adaptable Motor (kW)And
Type of Motor：
7.5: 7.5kW
Input voltage phases:
S:Single-phase
T:Three-phase
U
M
V
W
