Mercia Garden Products 03DTSHPN1208FGC32TWSA-V2 Manual

12x8 shiplap pent summerhouse with shed area.
Hide thumbs

Advertisement

Quick Links

Download this manual
x2
MADE IN GREAT BRITAIN
2mm Drill bit
Water proof
Preservative

Advertisement

loading
Need help?

Need help?

Do you have a question about the 03DTSHPN1208FGC32TWSA-V2 and is the answer not in the manual?

Questions and answers

Related Manuals for Mercia Garden Products 03DTSHPN1208FGC32TWSA-V2

Summary of Contents for Mercia Garden Products 03DTSHPN1208FGC32TWSA-V2

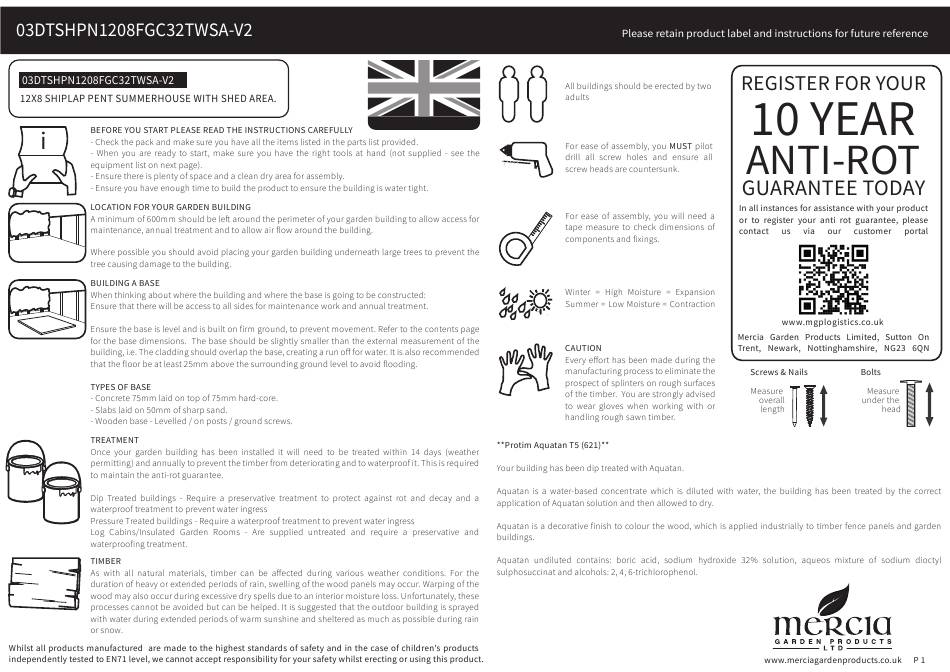

  • Page 1 MADE IN GREAT BRITAIN 2mm Drill bit Water proof Preservative...
