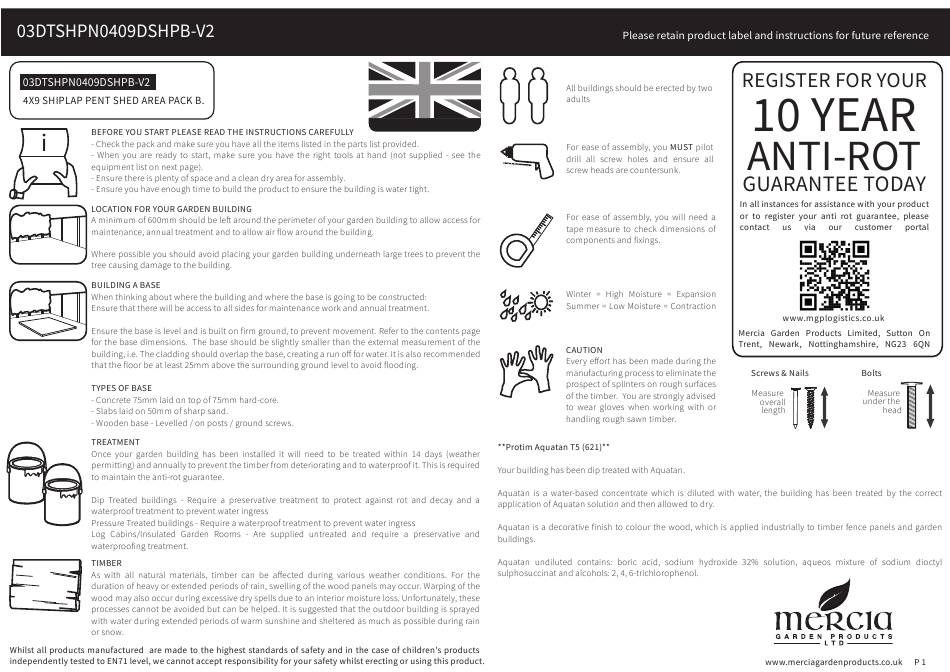

- Page 1 MADE IN GREAT BRITAIN 2mm Drill bit Water proof Preservative...
-
Page 2: Any Questions
ANY QUESTIONS? Scan the QR code to contact us via our customer portal. - Page 3 ACCESSING VIDEO GUIDES... ACCESSING VIDEO GUIDES... 3. Scan QR code... Some steps within this set of instructions come with an added video guide for your convenience. These can be accessed via the QR code and used to aid you in constructing that step.
- Page 4 03DTSHPN0409DSHPB-V2 End View Back Cover Trim - 12x40x1909mm QTY 1 Overall Dimensions: Width = 1205mm S1240-1909mm Depth = 2908mm End View Height = 2157mm Front Cover Trim - 12x40x2055mm QTY 2 Base Dimensions: S1240-2055mm Width = 1133mm End View Depth = 2800mm...
-
Page 5: Pre-Assembly
Pre Assembly Screw Pack There may be extra screws in the pack. Before assembling remove the transportation blocks from the bottom of each panel. 60mm Screw x 12 30mm Screw x 78 Take care removing the blocks as to not damage the panels. Tap with a at headed screwdriver and hammer. - Page 6 Step 2 IMPORTANT: Pre-drill before xing screws. Before assembly, please make sure you have a suitable Parts Needed - No. 4 QTY 1 base ready to install your building onto. No. 16 QTY 3 Locate one Floor Block (No. 16) centrally Step 1 IMPORTANT: Pre-drill before xing screws.
- Page 7 Step 4 IMPORTANT: Pre-drill before xing screws. Step 6 IMPORTANT: Pre-drill before xing screws. Parts Needed - No. 2 QTY 1 Place the assembled Floor (No. 4) up against the 9x9 Corner Summerhouse, as Place the Back Panel (No. 2) on top shown.
- Page 8 Step 8 IMPORTANT: Pre-drill before xing screws. Step 10 IMPORTANT: Pre-drill before xing screws. Parts Needed- No. 7 QTY 1 Parts Needed- No. 14 QTY 2 No. 8 QTY 1 Place the Gable Framing (No. 14) on the Place the Gable Tops (No. 7 & 8) on top top of the Gables, ensuring they are of the assembled Side Panels (No.
- Page 9 Step 12 IMPORTANT: Pre-drill before xing screws. Step 14 IMPORTANT: Pre-drill before xing screws. Parts Needed- No. 13 QTY 2 Once the Roof secured, the panels can be xed in position. Position the Roof Trims (No. 13) onto either end of the assembled Roof panel, Fix the panels in place by using so they sit perpendicular to the roof 16x50mm screws.
- Page 10 Step 15 Parts Needed - No. 20 No. 22 QTY 1 *Aerial view of roof* Cut the Sand Felt (No. 20) into ve sheets measuring: Front 1 x 2340mm (L) x 1000mm (W) 2 x 4980mm (L) x 1000mm (W) 2410x1000mm 540x300mm 1 x 4180mm (L) x 1000mm (W)
- Page 11 Step 16 Parts Needed - No. 21 *Aerial view of roof* No. 22 QTY 1 Front Cut the Green Felt (No. 21) into ve sheets measuring: 1 x 2004mm (L) x 1000mm (W) 2918x1000mm 1 x 4029mm (L) x 1000mm (W) 1 x 5000mm (L) x 1000mm (W) 1 x 4475mm (L) x 1000mm (W) 4475x1000mm...
- Page 12 Step 17 Step 18 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts Needed - No. 9 QTY 1 Parts Needed - No. 11 QTY 1 No. 10 QTY 2 No. 20 QTY 4 (From the summerhouse contents) Fix the Cover Trims (No.
- Page 13 Step 20 IMPORTANT: Pre-drill before xing screws. Step 19 IMPORTANT: Pre-drill before xing screws. Parts Needed - No. 11 QTY 1 Parts Needed - No. 15 QTY 2 No. 21 QTY 3 No. 19 QTY 1 (From the summerhouse contents) Fix two Door blocks (No.
- Page 14 Step 23 Step 22 IMPORTANT: Pre-drill before xing screws. Parts needed - No. 18 QTY 2 Once constructed, apply a preserving treatment and a waterproo ng treatment Fix the remaining Turn Buttons (No. 18) to your garden building as soon as possible. to the Door Panel above each of the This will help to protect your building and Doors using 1x30mm screw per turn...
