Mercia Garden Products 03DTSHCV1208HGD4MW-V1 Manual

12x8 shiplap curved roof summerhouse
Hide thumbs Also See for 03DTSHCV1208HGD4MW-V1:

Advertisement

Quick Links

Download this manual
x2
MADE IN GREAT BRITAIN
2mm Drill bit
Water proof
Preservative

Advertisement

loading
Need help?

Need help?

Do you have a question about the 03DTSHCV1208HGD4MW-V1 and is the answer not in the manual?

Questions and answers

Related Manuals for Mercia Garden Products 03DTSHCV1208HGD4MW-V1

Summary of Contents for Mercia Garden Products 03DTSHCV1208HGD4MW-V1

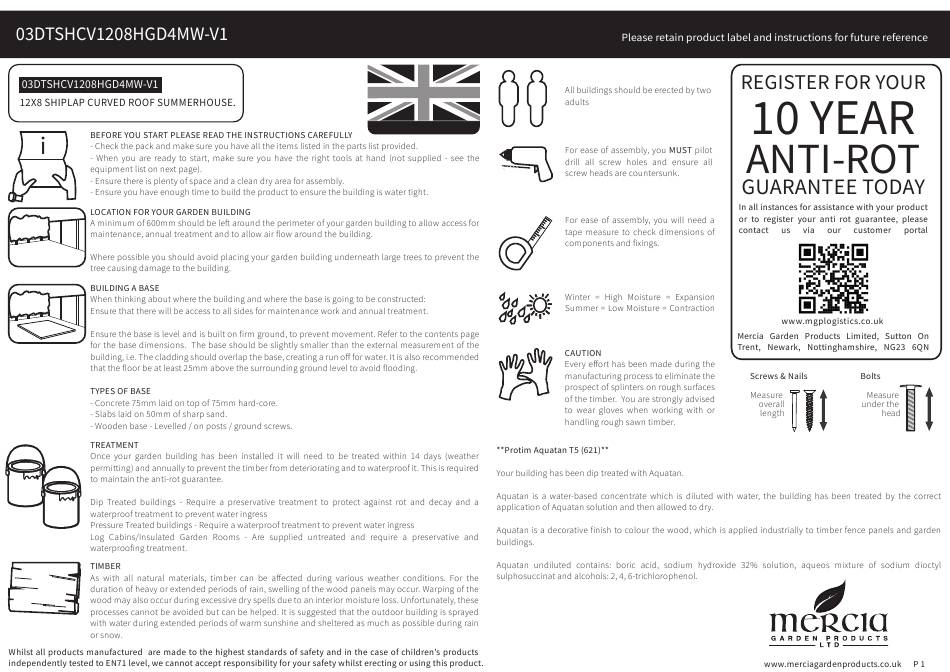

  • Page 1 MADE IN GREAT BRITAIN 2mm Drill bit Water proof Preservative...

  • Page 2: Any Questions

    ANY QUESTIONS? Scan the QR code to contact us via our customer portal.
  • Page 3 ACCESSING VIDEO GUIDES... ACCESSING VIDEO GUIDES... 3. Scan QR code... Some steps within this set of instructions come with an added video guide for your convenience. These can be accessed via the QR code and used to aid you in constructing that step.
  • Page 4 03DTSHCV1208HGD4MW-V1 Overall Dimensions: Green Label Blue Label Width = 3640mm Depth = 3019mm Height = 2156mm Base Dimensions: Width = 3506mm Depth = 2350mm Roof QTY 4 Master Door QTY 1 Secondary Door QTY 1 AI-S21MBCR910X2950-V1 AI-PRMHGMD600X1715-V1 AI-PRMHGSD600X1715-V1 End View...

  • Page 5: Missing Parts

    Pre Assembly End View Before assembling remove the transportation blocks from the bottom of each panel. Door Bar - 60x16x1705mm QTY 1 S1660-1705mm Take care removing the blocks as to not damage the panels. Tap with a at headed End View screwdriver and hammer.
  • Page 6 IMPORTANT: Pre-drill before xing screws. Step 2 Before assembly, please make sure you have a suitable Parts Needed - No. 15 QTY 2 base ready to install your building onto. No. 22 QTY 1 No. 29 QTY 2 IMPORTANT: Pre-drill before xing screws. Step 1 Fix the Door Bar (No.
  • Page 7 Step 3 Step 5 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts Needed - No. 8 QTY 2 No. 23 QTY 12 Place the assembled oor panels (No. 8) onto a rm and level base. Ensure the Position the Floor Blocks (No.
  • Page 8 Step 7 Step 9 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts Needed - No. 4 QTY 1 Parts Needed - No. 6 QTY 1 No. 5 QTY 1 No. 7 QTY 1 Place the remaining back panel (No. 4) next Place the Left Gable (No.
  • Page 9 Step 11 Step 13 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts Needed - No. 1 QTY 1 Parts Needed - No. 12 QTY 6 Position one assembled Ridge Bar Place the assembled door panel (No. 1) onto (No.
  • Page 10 Step 14 IMPORTANT: Pre-drill before xing screws. Step 15 IMPORTANT: Pre-drill before xing screws. Parts Needed - No. 9 QTY 4 Parts Needed - No. 9 QTY 4 No. 24 QTY 4 No. 32 QTY 3 Place the Roof Panels (No. 9) on top Place the four roofs (No.
  • Page 11 Step 16 Step 18 IMPORTANT: Pre-drill before xing screws. Parts Needed - No. 33 QTY 1 Fix the Roof Panels to the Framing within the Panels and the Ridge Cut the felt (No. 33) into four sheets Bars where they meet (internally) measuring: 3740mm (L) X 1000mm (W).
  • Page 12 Step 19 Step 21 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts Needed - No. 16 QTY 8 Parts Needed - No. 18 QTY 4 No. 19 QTY 2 Sandwich the felt either side No. 20 QTY 4 between the roof and the roof trims (No.
  • Page 13 Step 23 IMPORTANT: Pre-drill before xing screws. Step 24 Parts Needed - No. 28 QTY 2 Once constructed, apply a preserving Fix the turn buttons (No. 28) to the treatment and a waterproo ng treatment top and bottom of the Secondary to your garden building as soon as Door using 2x30mm screws.
  • Page 14 ANY QUESTIONS? Scan code contact us via our customer portal.
