Mercia Garden Products 03DTSHPN0806FGD1TW-V1 Manual

Hide thumbs Also See for 03DTSHPN0806FGD1TW-V1:

Advertisement

Quick Links

Download this manual
x2
2mm Drill bit

Advertisement

loading
Need help?

Need help?

Do you have a question about the 03DTSHPN0806FGD1TW-V1 and is the answer not in the manual?

Questions and answers

Related Manuals for Mercia Garden Products 03DTSHPN0806FGD1TW-V1

Summary of Contents for Mercia Garden Products 03DTSHPN0806FGD1TW-V1

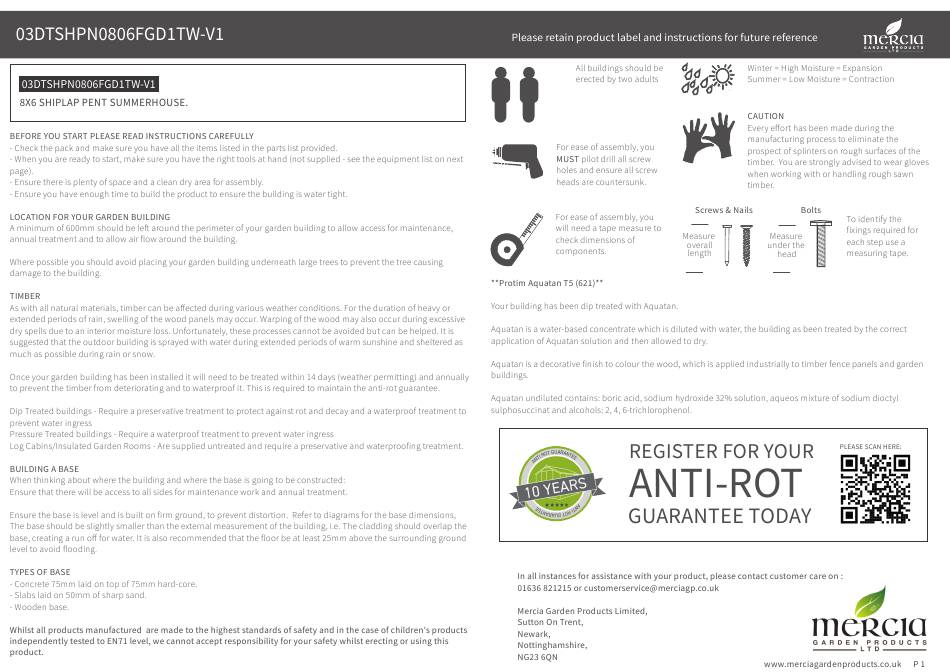

  • Page 1 2mm Drill bit...

  • Page 2: Any Questions

    PLEASE SCAN HERE: ANY QUESTIONS? Scan code contact us via our customer portal.
  • Page 3 ACCESSING VIDEO GUIDES... ACCESSING VIDEO GUIDES... 3. Scan QR code... Some steps within this set of instructions come with an added video guide for your convenience. These can be accessed via the QR code and used to aid you in constructing that step.
  • Page 4 Before assembly please make sure you have a Green Label Blue Label suitable base ready to erect your building MADE IN GREAT BRITAIN Overall Dimensions: Base Dimensions: Master Door QTY 1 Secondary Door QTY 1 Fitted Window QTY 1 Width = 2468mm Width = 2350mm AI-STDFGMD475X1715-V1 AI-STDFGSD475X1715-V1...
  • Page 5 Nail Bag Step 1 IMPORTANT: Pre-drill before xing screws. Parts needed - No. 1 QTY 1 There may be extra screws present in the nail bag - No. 9 QTY 1 - No. 10 QTY 1 50mm Screw QTY 86 25mm Screw QTY 22 - No.
  • Page 6 Step 2 Step 3 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts needed - No. 22 QTY 1 Parts needed - No. 6 QTY 2 *Internal View* - No. 27 QTY 2 Attach the press lock (No.22) to the Place the assembled oor panels master door with 4x25mm screws,...
  • Page 7 Step 6 Step 4 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts needed - No. 2 QTY 1 Parts needed - No. 4 QTY 1 - No. 5 QTY 1 Locate the Single Window Panel (No. 2) on top of the Floor at the front of the building, Locate the Left Panel(No.
  • Page 8 Step 8 Step 10 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts needed - No. 7 QTY 2 - No. 20 QTY 2 Internally, x the two Roof panels (No.7) together using 50mm Fix the Eaves framing (No.20) to screws.
  • Page 9 Step 14 Step 12 IMPORTANT: Pre-drill before xing screws. Parts needed - No. 25 QTY 1 Once the Roof (No. 6) is aligned and Cut the Felt (No. 25) into 3 sheets measuring secure the panels can be secured to the 2550mm (L) x 1000mm (W).
  • Page 10 Step 15 Step 16 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts needed - No. 11 QTY 1 Parts needed - No. 16 QTY 2 - No. 17 QTY 2 - No. 24 QTY 8 Place the Window (No.11) face down on a Fix the fascias (No.
  • Page 11 Step 17 Step 19 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts needed - No. 12 QTY 1 Parts needed - No. 26 QTY 2 - No. 13 QTY 1 Attach the two turn buttons (No. 26) Locate the Rain Guard (No.
  • Page 12 Step 21 Step 20 IMPORTANT: Pre-drill before xing screws. Parts needed - No. 18 QTY 2 - No. 19 QTY 1 It is recommended that after the construction, treatment and the removal of the protective window cover that sealant is used to keep the building On the inside of the building x the Door weather tight.
  • Page 13 PLEASE SCAN HERE: ANY QUESTIONS? Scan code contact us via our customer portal.
