Mercia Garden Products 03DTSHPN0407DSHSA-V2 Manual

4x7 shiplap pent shed area
Hide thumbs

Advertisement

Quick Links

Download this manual
x2
MADE IN GREAT BRITAIN
2mm Drill bit
Water proof
Preservative

Advertisement

loading
Need help?

Need help?

Do you have a question about the 03DTSHPN0407DSHSA-V2 and is the answer not in the manual?

Questions and answers

Related Manuals for Mercia Garden Products 03DTSHPN0407DSHSA-V2

Summary of Contents for Mercia Garden Products 03DTSHPN0407DSHSA-V2

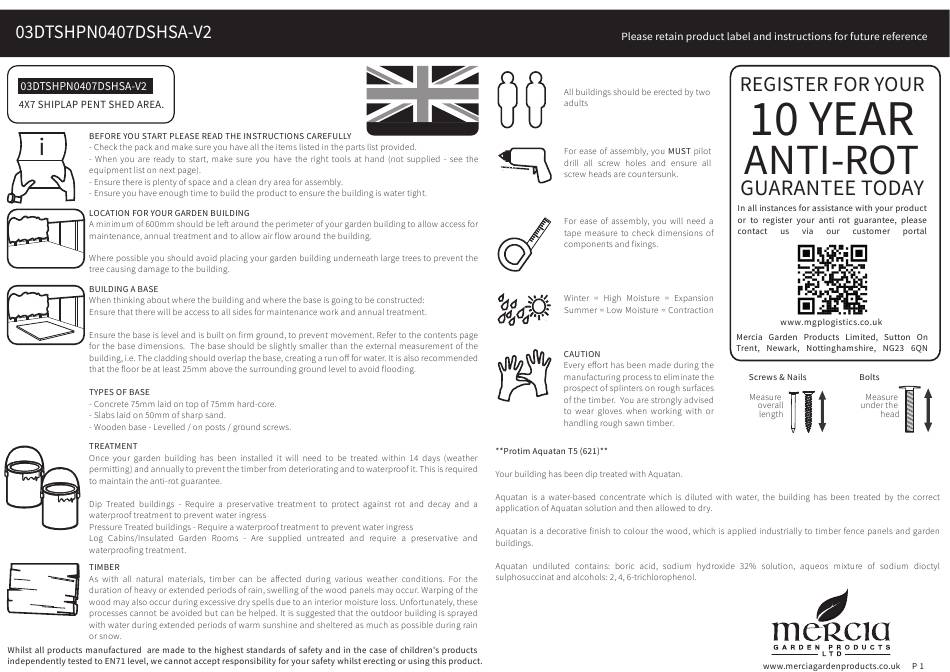

  • Page 1 MADE IN GREAT BRITAIN 2mm Drill bit Water proof Preservative...

  • Page 2: Any Questions

    ANY QUESTIONS? Scan the QR code to contact us via our customer portal.
  • Page 3 ACCESSING VIDEO GUIDES... ACCESSING VIDEO GUIDES... 3. Scan QR code... Some steps within this set of instructions come with an added video guide for your convenience. These can be accessed via the QR code and used to aid you in constructing that step.
  • Page 4 03DTSHPN0407DSHSA-V2 End View Overall Dimensions: Back Cover Trim - 12x40x1825mm QTY 1 Width = 1179mm Depth = 2046mm S1240-1825mm Height = 2011mm End View Base Dimensions: Width = 1133mm Front Cover Trim - 12x40x1918mm QTY 2 Depth = 1960mm S1240-1918mm...

  • Page 5: Missing Parts

    Pre Assembly Screw Pack Before assembling remove the transportation blocks from the bottom of each panel. There may be extra screws in the pack. 60mm Screw x 12 30mm Screw x 52 Take care removing the blocks as to not damage the panels. Tap with a at headed screwdriver and hammer.
  • Page 6 Step 2 IMPORTANT: Pre-drill before xing screws. Before assembly, please make sure you have a suitable Parts Needed - No. 4 QTY 1 base ready to install your building onto. Place the Floor (No. 4) up against the 7x7 Corner Summerhouse on a level surface.
  • Page 7 Step 4 IMPORTANT: Pre-drill before xing screws. Step 6 IMPORTANT: Pre-drill before xing screws. Parts Needed - No. 2 QTY 1 Parts Needed - No. 7 QTY 1 Fix the side of the Back Panel (No. 2) Place the Gable Top (No. 7) on top of the Side Panel (No.
  • Page 8 Step 8 IMPORTANT: Pre-drill before xing screws. Right Side Shed only IMPORTANT: Pre-drill before xing screws. Parts Needed - No. 5 QTY 1 No. 12 QTY 2 Step 10 Parts Needed - No. 23 QTY 1 (From Before placing the Roof (No. 5) on the the summerhouse contents) building, place the roof upside down and attach the 2 Roof Trim pieces (No.
  • Page 9 Step 12 Parts Needed - No. 18 *Aerial view of roof* No. 19 No. 21 QTY 1 Front Cut the Sand Capping Felt (No. 18) into two sheets measuring: 1830x300mm 1 x 600mm (L) x 300mm (W). 1 x 1830mm (L) x 300mm (W). 3320x1000mm Cut the Sand Felt (No.19) into three sheets measuring: 1 x 2390mm (L) x 1000mm (W).
  • Page 10 Step 13 Parts Needed - No. 20 *Aerial view of roof* No. 21 QTY 1 Front Cut the Green Felt (No. 20) into four sheets measuring: 1 x 1700mm (L) x 1000mm (W). 3200x300mm 1 x 3100mm (L) x 1000mm (W). 2 x 3200mm (L) x 1000mm (W).
  • Page 11 Step 14 IMPORTANT: Pre-drill before xing screws. Step 15 IMPORTANT: Pre-drill before xing screws. Parts Needed - No. 8 QTY 1 Parts Needed - No. 10 QTY 1 No. 9 QTY 2 No. 21 QTY 2 (From the summerhouse contents) Fix the Cover Trims (No.
  • Page 12 Step 16 IMPORTANT: Pre-drill before xing screws. Step 17 IMPORTANT: Pre-drill before xing screws. Parts Needed - No. 10 QTY 1 Parts Needed - No. 14 QTY 2 No. 22 QTY 3 No. 17 QTY 1 (From the summerhouse contents) Fix two Door blocks (No.
  • Page 13 Step 20 Step 19 IMPORTANT: Pre-drill before xing screws. Parts Needed- No. 16 QTY 2 Once constructed, apply a preserving treatment and a waterproo ng treatment Fix the Turn Buttons (No. 16) above to your garden building as soon as each of the Doors using 1x30mm screw possible.
  • Page 14 ANY QUESTIONS? Scan code contact us via our customer portal.
