Mercia Garden Products 03DTSHPN0409DSHPB-V1 Manual

4x9 shiplap pent shed area
Hide thumbs

Advertisement

Quick Links

Download this manual
x2
2mm Drill bit

Advertisement

loading
Need help?

Need help?

Do you have a question about the 03DTSHPN0409DSHPB-V1 and is the answer not in the manual?

Questions and answers

Related Manuals for Mercia Garden Products 03DTSHPN0409DSHPB-V1

Summary of Contents for Mercia Garden Products 03DTSHPN0409DSHPB-V1

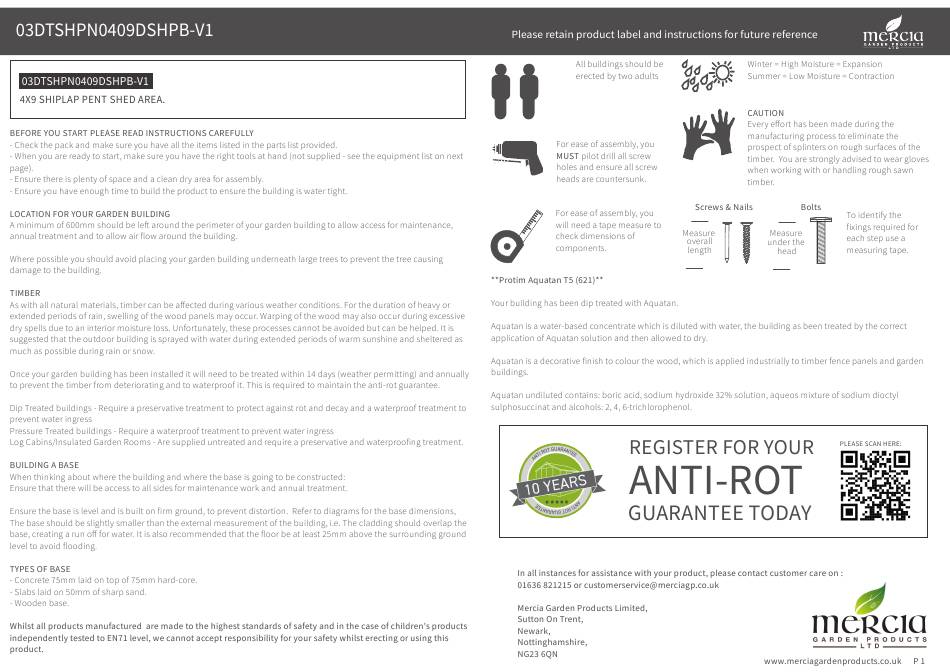

  • Page 1 2mm Drill bit...
  • Page 3 Before assembly Back Cover Trim - 12x40x1909mm QTY 1 please make sure you have a suitable base ready to erect your S1240-1909mm building Front Cover Trim - 12x40x2055mm QTY 2 S1240-2055mm Fascia Trim - 12x95x1143mm QTY 2 S1295-1143mm MADE IN GREAT BRITAIN Door Cover Trim - 12x60x770mm QTY 2 Overall Dimensions: Base Dimensions:...

  • Page 4: Pre-Assembly

    Pre Assembly Step 1 IMPORTANT: Pre-drill before xing screws. Parts Needed - No.1 QTY 1 Before assembling remove the transportation - No.6 QTY 2 blocks from the bottom of each panel. - No.12 QTY 2 - No.17 QTY 6 Take care removing the blocks as to not damage the panels.
  • Page 5 Step 4 Step 2 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts Needed - No. 4 QTY 1 Place the two asembled Floors (No.4) - No. 16 QTY 3 against Corner Secure the oor (No. 4) to the Summerhouse on a at, level surface.
  • Page 6 Step 6 Step 8 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts Needed- No.2 QTY 1 Parts Needed- No.7 QTY 1 - No.8 QTY 1 Fix the side of the Back Panel (No. 2) against the side of the 9x9 Corner Place the Gable Tops (No.
  • Page 7 Step 12 Step 10 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts Needed- No.13 QTY 2 Parts Needed- No.14 QTY 2 Before placing the Roof (No.5) on the Place the Gable Framing (No.14) on the building, place the roof upside down top of the Gables, ensuring they are and attach the Roof Trim pieces (No.
  • Page 8 Step 15 IMPORTANT: Pre-drill before xing screws. Step 14 Parts Needed- No. 20 QTY 1 - No. 30 QTY 1 (9x9 Corner Summer House) Once the Roof is in position the extension can be xed in position. Cut ve strips from the roll of felt, 1X2918mm (5), 1x4475mm HANDLE WITH CARE (4), 1x5000mm (3), 1x4029mm (2) and 1x2004mm (1) in...
  • Page 9 Step 18 Step 16 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts Needed- No. 15 QTY 2 Parts Needed - No.9 QTY 1 - No. 19 QTY 1 - No.10 QTY 2 Fix two Door blocks (No.15) to the Fix the Cover Trims (No.9 and No.10) back of the Doors (internally) with plus the remaining cover trims from...
  • Page 10 IMPORTANT: Pre-drill before xing screws. Step 20 Parts needed - No. 18 QTY 2 Fix the Turn Buttons (No.18) above each of the Doors using 1x30mm screw per turn button. 2x30mm Screws *These turn buttons help to keep your doors straight during high & low levels of moisture content in the air.
