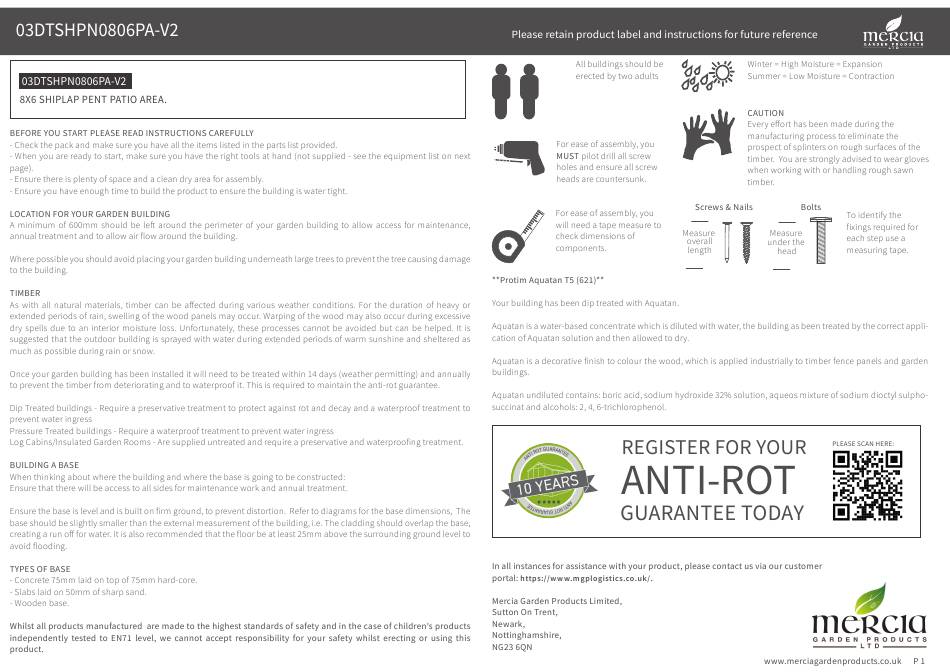

- Page 1 2mm Drill bit...
- Page 2 PLEASE SCAN HERE: ANY QUESTIONS? Scan code contact us via our customer portal.
- Page 3 16x6 Pent & Right Side Patio Area 18x6 Pent & Right Side Patio Area Pack Requirement: Pack Requirement: 03DTSHPN0806FGD1TW-V2 03DTSHPN1006FGD2TW-V2 03DTSHPN0806PA-V2 03DTSHPN0806PA-V2 Overall Dimensions: Overall Dimensions: Width = 4774mm Width = 5334mm Depth = 2331mm Depth = 2331mm Height = 2170mm...
- Page 4 Contents: Nail Bag There may be extra screws present in the nail bag 70mm Screw x 38 30mm Screw x 51 50mm Screw x 27 Felt Tacks x 200 40mm Screw x 6 Back Panel QTY 2 Side Panel QTY 1 Roof QTY 2 AI-S11SHPPBF1078X1810-V1 AI-S11SHPPBF1637X1810-V1...
- Page 5 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Step 1 Step 3 Parts needed - No. 1 QTY 2 Parts needed - No. 1 QTY 1 43mm 43mm No. 7 QTY 2 Locate the back panel (No.1) next Lay the Back panels (No.1) on the to the standing back panel, oor and place the Back Posts (No.7)
- Page 6 Step 5 IMPORTANT: Pre-drill before xing screws. Step 7 IMPORTANT: Pre-drill before xing screws. Parts needed - No. 2 QTY 1 Parts Needed - No. 10 QTY 1 No. 11 QTY 2 Stand the Side Panel (No.2) and the Front Post (No.6) to the Fix the corner braces (No.11) to Back post, ensuring the bottom each end of the ridge bar (No.10)
- Page 7 Step 8 IMPORTANT: Pre-drill before xing screws. Step 9 IMPORTANT: Pre-drill before xing screws. Parts needed - No. 3 QTY 2 Parts Needed - No. 3 QTY 2 No. 9 QTY 2 Place the Roof Panels (No.3) on top of Fix the Roof Framing (No.9) to the building, ensure the Roof framing the roof (No.3) using 4x50mm...
- Page 8 Step 11 10x6 Summerhouse + Patio Area. Parts Needed - No. 12 No. 13 No. 15 QTY 1 Cut the Sand Capping Felt (No.12) into one sheet measuring: 8x6 Summerhouse + Patio Area. 8x6 Summerhouse + Patio Area = 4850mm (L) x 300mm (W). 10x6 Summerhouse + Patio Area = 5400mm (L) x 300mm (W).
- Page 9 Step 12 Parts Needed - No. 14 10x6 Summerhouse + Patio Area. No. 15 QTY 1 Cut the Green Felt (No. 14) into three sheets measuring: 8x6 Summerhouse + Patio Area = 4850mm (L) x 1000mm (W). 10x6 Summerhouse + Patio Area = 5400mm (L) x 1000mm (W). 8x6 Summerhouse + Patio Area.
- Page 10 Step 13 Step 14 A IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts Needed - No. 16 (From the 8x6 summerhouse + patio area on ONLY. summerhouse contents) Parts Needed - No. 8 QTY 2 Measure the distance from the front No.
- Page 11 Step 14 B Step 15 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. 10x6 summerhouse + patio area on ONLY. Fix the remaining Cover Trims Parts Needed - No. 8 QTY 2 from Pent No. 17 QTY 4 Summerhouse or the 10x6 (From the 10x6 summerhouse contents) Summerhouse into place over...
- Page 12 Step 16 Once constructed, apply preserving treatment and a waterproo ng treatment to your garden building as soon as possible. This will help to protect your building and prevent decay. See page 13 for a full guide and instructions. Once fully treated, score around the protective covers on the glazing and carefully peel the coverings back.
