Mercia Garden Products 03DTSHPN0406DSHSA-V2 Manual

4x6 shiplap pent summerhouse shed area.
Hide thumbs

Advertisement

Quick Links

Download this manual
x2
2mm Drill bit

Advertisement

loading
Need help?

Need help?

Do you have a question about the 03DTSHPN0406DSHSA-V2 and is the answer not in the manual?

Questions and answers

Related Manuals for Mercia Garden Products 03DTSHPN0406DSHSA-V2

Summary of Contents for Mercia Garden Products 03DTSHPN0406DSHSA-V2

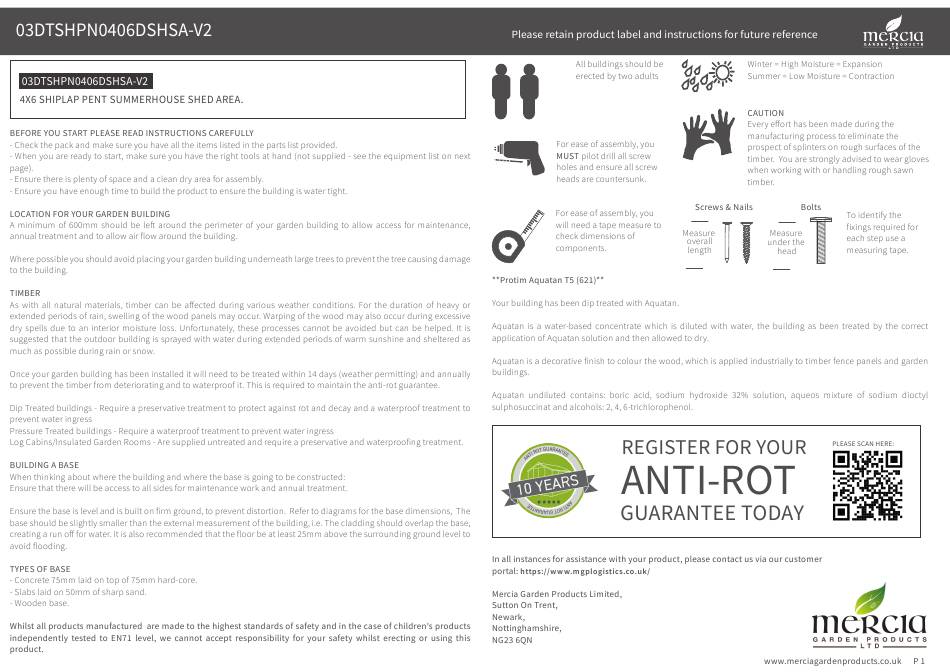

  • Page 1 2mm Drill bit...

  • Page 2: Any Questions

    PLEASE SCAN HERE: ANY QUESTIONS? Scan code contact us via our customer portal.
  • Page 3 ACCESSING VIDEO GUIDES... ACCESSING VIDEO GUIDES... 3. Scan QR code... Some steps within this set of instructions come with an added video guide for your convenience. These can be accessed via the QR code and used to aid you in constructing that step.
  • Page 4 12x6 Pent & Right Side Shed Area 14x6 Pent & Right Side Shed Area Pack Requirement: Pack Requirement: 03DTSHPN0806FGD1TW-V2 03DTSHPN1006FGD2TW-V2 03DTSHPN0406DSHSA-V2 03DTSHPN0406DSHSA-V2 Overall Dimensions: Overall Dimensions: Width = 3615mm Width = 4174mm Depth = 2331mm Depth = 2331mm Height = 2170mm...
  • Page 5 End View Contents: Door Cover Trim - 12x60x780mm QTY 2 S1260-780mm End View Roof Framing - 28x28x1147mm QTY 1 FS2828-1147mm End View Door block - 28x28x150mm QTY 4 FS2828-150mm End View Gable Frame - 27x44x1707mm QTY 1 F2744-1707mm Door Panel QTY 1 Back Panel QTY 1 Side Panel QTY 1 Floor QTY 1...

  • Page 6: Pre-Assembly

    Step 1 Pre Assembly IMPORTANT: Pre-drill before xing screws. Parts Needed - No. 1 QTY 1 PLEASE SCAN HERE: No. 8 QTY 2 Follow the instructions for the 8x6 Pent Summerhouse (03DTSHPN0806FGD1TW) or the the 10x6 Pent No. 12 QTY 2 Summerhouse (03DTSHPN1006FGD2TW), however DO NOT attach the Felt, Rear Cover Trims or the Fascia Trims.
  • Page 7 Step 2 IMPORTANT: Pre-drill before xing screws. Step 4 IMPORTANT: Pre-drill before xing screws. Parts Needed - No. 4 QTY 1 Parts Needed- No. 2 QTY 1 Place the Floor (No. 4) up against the Fix the side of the Back Panel (No. 2) Pent Summerhouse on a at, level against...
  • Page 8 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Step 6 Step 8 Parts Needed - No. 7 QTY 1 Parts needed - No. 5 QTY 1 No. 13 QTY 1 Place the Double Gable Top (No. 7) on top of the Side Panel (No.
  • Page 9 Step 9 IMPORTANT: Pre-drill before xing screws. Step 11 IMPORTANT: Pre-drill before xing screws. Parts Needed- No. 5 QTY 1 Once the Roof is in position the Place the Roof Panel (No.5) on top of extension can be xed in position. the building, ensure the Roof framing (No.13) slots over the back panel.
  • Page 10 Step 12 10x6 Summerhouse + Shed add-on. Parts Needed - No. 19 No. 20 8x6 Summerhouse + Shed add-on. No. 22 QTY 1 Cut the Sand Capping Felt (No.19) into one sheet measuring: 8x6 Summerhouse + Shed add-on = 3700mm (L) x 300mm (W). 10x6 Summerhouse + Shed add-on = 4250mm (L) x 300mm (W).
  • Page 11 Step 13 10x6 Summerhouse + Shed add-on. Parts Needed - No. 21 No. 22 QTY 1 8x6 Summerhouse + Shed add-on. Cut the Green Felt (No. 21) into three sheets measuring: 8x6 Summerhouse + Shed add-on = 3700mm (L) x 1000mm (W). 10x6 Summerhouse + Shed add-on = 4250mm (L) x 1000mm (W).
  • Page 12 Step 14 IMPORTANT: Pre-drill before xing screws. Step 15 IMPORTANT: Pre-drill before xing screws. Parts Needed - No. 9 QTY 1 Parts Needed - No. 16 (From the No. 10 QTY 1 summerhouse contents) Fix the Cover Trims (No. 9 & No. 10) Measure the distance from the front plus the remaining cover trims from to the back of the building using a...
  • Page 13 Step 16 A Step 16 B IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. 8x6 summerhouse + shed add on ONLY. 10x6 summerhouse + shed add on ONLY. Parts Needed - No. 11 QTY 2 Parts Needed - No. 11 QTY 2 No.
  • Page 14 Step 17 IMPORTANT: Pre-drill before xing screws. Step 19 IMPORTANT: Pre-drill before xing screws. Parts Needed - No. 14 QTY 2 Parts needed - No. 17 QTY 2 No. 18 QTY 1 Fix the Turn Buttons (No.17) above Fix two Door blocks (No. 14) to each of the Doors using 1x30mm screw the back of the Doors (internally) per turn button.
  • Page 15 Step 20 Once constructed, apply a preserving treatment and a waterproo ng treatment to your garden building as soon as possible. This will help to protect your building and prevent decay. See page 16 for a full guide and instructions. Once fully treated, score around the protective covers on the glazing and carefully peel the coverings back.
  • Page 16 PLEASE SCAN HERE: ANY QUESTIONS? Scan code contact us via our customer portal.
