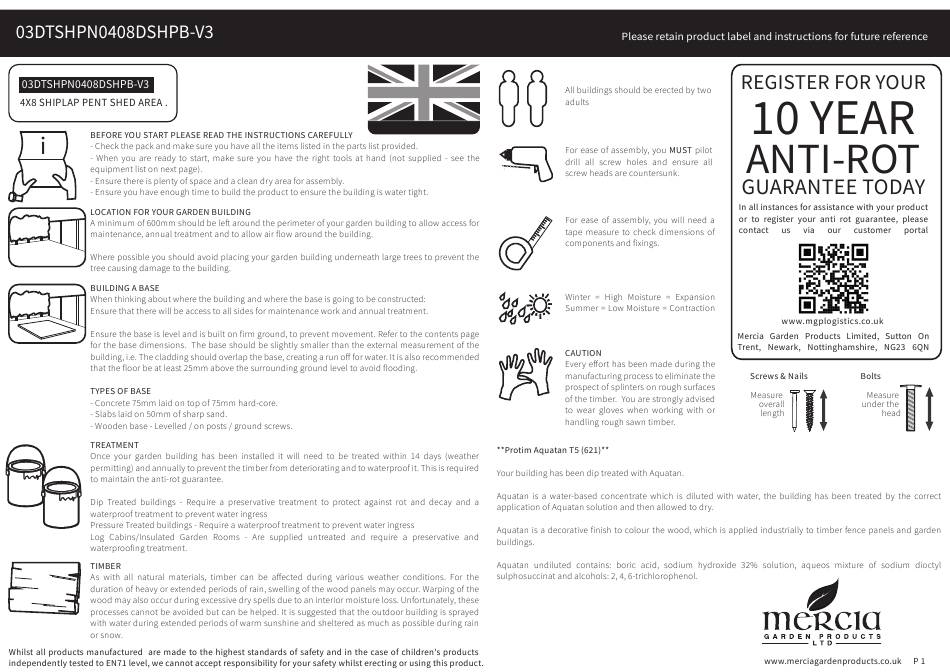

- Page 1 MADE IN GREAT BRITAIN 2mm Drill bit Water proof Preservative...
- Page 2 ANY QUESTIONS? Scan the QR code to contact us via our customer portal.
- Page 3 ACCESSING VIDEO GUIDES... ACCESSING VIDEO GUIDES... 3. Scan QR code... Some steps within this set of instructions come with an added video guide for your convenience. These can be accessed via the QR code and used to aid you in constructing that step.
- Page 4 03DTSHPN0408DSHPB-V3 End View Overall Dimensions: Back Cover Trim - 12x40x1909mm QTY 1 Width = 1207mm S1240-1909mm Depth = 2542mm Height = 2122mm End View Base Dimensions: Width = 1133mm Front Cover Trim - 12x40x2055mm QTY 2 Depth = 2430mm S1240-2055mm...
- Page 5 Pre Assembly Screw Pack There may be extra screws in the pack. Follow the instructions for the 8x8 Corner Summerhouse 60mm Screw x 12 (03DTSHCR0808FGD2TW), however DO NOT attach the 30mm Screw x 78 Felt, Rear Cover Trims or the Fascia Trims. 50mm Screw x 72 20mm Screw x 6 Not attaching these parts allows the extension to be xed...
- Page 6 Step 2 IMPORTANT: Pre-drill before xing screws. Before assembly, please make sure you have a suitable Parts Needed - No. 4 QTY 1 base ready to install your building onto. No. 16 QTY 3 Position the Floor Blocks (No. 16) Step 1 IMPORTANT: Pre-drill before xing screws.
- Page 7 Step 4 Step 6 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts Needed - No. 2 QTY 1 Place the two assembled Floors (No. 4) up against the 8x8 Corner Fix the side of the Back Panel (No. 2) Summerhouse on a at, level against the side of the 8x8 Corner...
- Page 8 Step 8 Step 10 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts Needed - No. 7 QTY 1 Parts Needed - No. 14 QTY 2 No. 8 QTY 1 Place the Gable Framing (No. 14) on Place the Gable Tops (No. 7 & 8) on top the top of the Gables, ensuring they of the assembled Side Panels (No.
- Page 9 Step 12 Right Side Shed only IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Step 14 Parts Needed- No. 13 QTY 2 Parts Needed - No. 22 QTY 1 (8x8 Before placing the Roof (No. 5) on the Corner Summer house) building, place the roof upside down and attach the Roof Framing (No.
- Page 10 Step 16 Parts Needed - No. 20 QTY 2 No. 22 QTY 1 *Aerial view of roof* Cut the Sand Felt (No. 20) into four sheets measuring: Front 1 x 2400mm (L) x 1000mm (W) 1 x 3900mm (L) x 1000mm (W) 3140x1000mm 1 x 4310mm (L) x 1000mm (W).
- Page 11 Step 17 Parts Needed - No. 21 QTY 2 *Aerial view of roof* No. 22 QTY 1 Front Cut the Green Felt (No. 21) into ve sheets measuring: 1 x 1735mm (L) x 1000mm (W) 2120x1000mm 1 x 3535mm (L) x 1000mm (W) 1 x 4525mm (L) x 1000mm (W) 1 x 3820mm (L) x 1000mm (W) 3820x1000mm...
- Page 12 Step 18 Step 19 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts Needed - No. 9 QTY 1 Parts Needed - No. 11 QTY 1 No. 10 QTY 2 No. 20 QTY 4 (From the summerhouse contents) Locate the Cover Trims (No.
- Page 13 Step 20 Step 21 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts Needed - No. 11 QTY 1 Parts Needed- No. 15 QTY 2 No. 21 QTY 3 No. 19 QTY 1 (From the summerhouse contents) Fix two Door blocks (No. 15) to the Measure the distances across the back of the Doors (internally) with front and sides of the building...
- Page 14 Step 24 Step 23 IMPORTANT: Pre-drill before xing screws. Parts needed - No. 18 QTY 2 Once constructed, apply a preserving treatment and a waterproo ng treatment Fix the Turn Buttons (No. 18) above to your garden building as soon as each of the Doors using 1x30mm possible.
